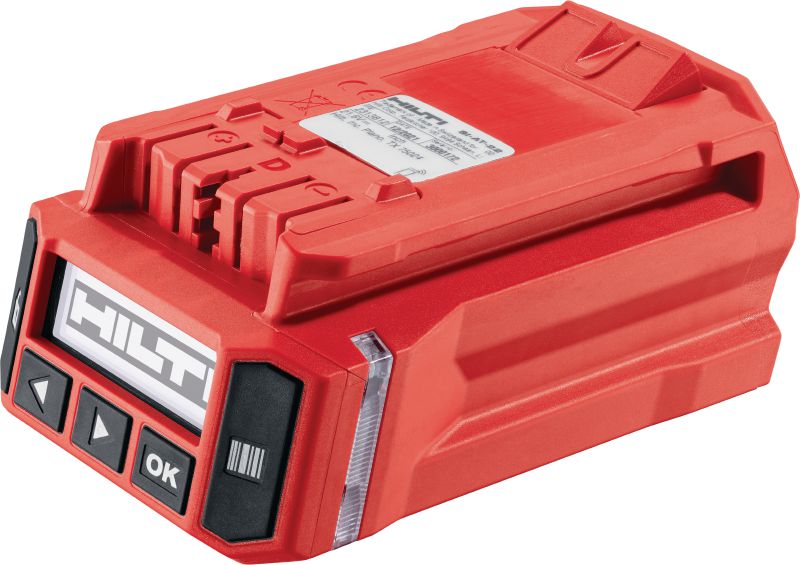

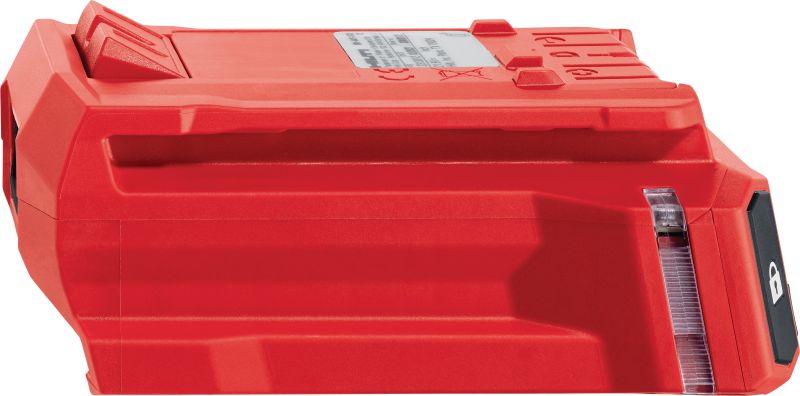

SI-AT-22 Adaptive torque module
New productItem #r17248168
Accessory for cordless impact wrenches to automate fastener pre-tensioning in queue with approvals (Nuron battery platform)
- Accessory type: Adaptive torque modules
- Weight according to EPTA-Procedure 01/2003 without battery: 0.24 kg
- Dimensions (LxWxH): 123 x 74 x 56 mm
Share
Features

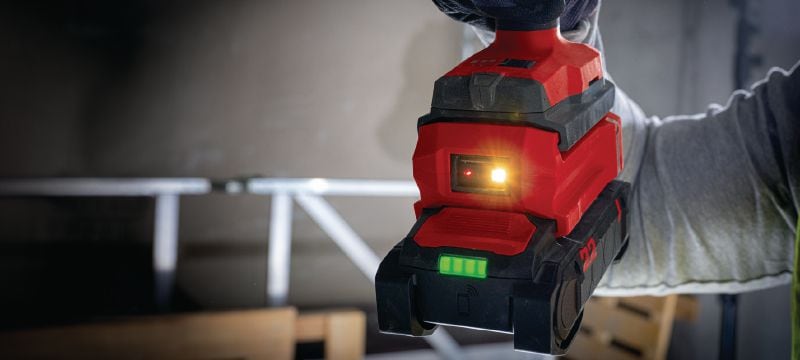

- Up to 30% faster than a torque wrench – add the Adaptive torque module to a compatible to cordless impact wrench to save time on every single fastening, while remaining in queue with ETA stud anchor approvals

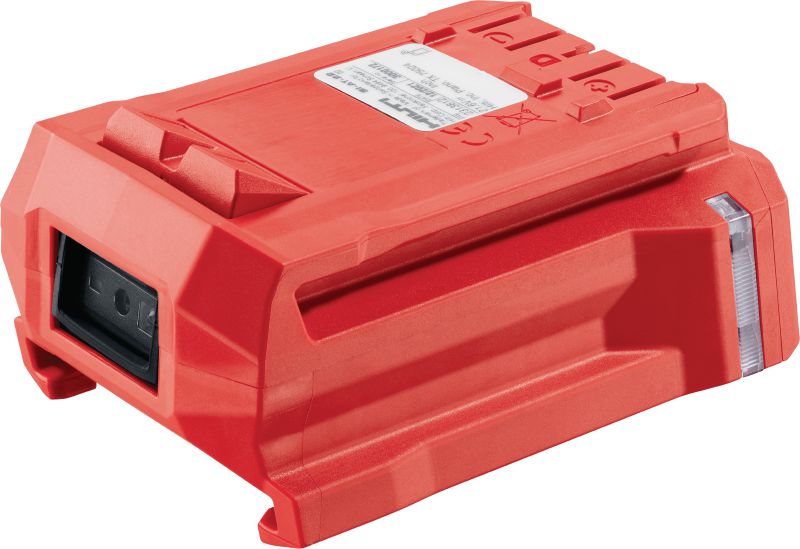

- Correct installation made easier – tell the Adaptive torque module what Fasteners you're working with by scanning the box using the built-in barcode scanner, then the module delivers the targeted pre-tension every time you pull the trigger
- Not only for concrete anchors – use Adaptive torque Modules with a wide range of wedge anchors, metal bolting, cast-in channels and MEP support structures
- Ready for inspection – documentation of executed fastenings can be converted to reports using the Adaptive torque Documentation software for better accountability and back-office efficiency
- Up to 30% faster than a torque wrench – add the Adaptive torque module to a compatible to cordless impact wrench to save time on every single fastening, while remaining in queue with approvals
Applications
- Setting of compatible Hilti wedge anchors (e.g. HST2, HST3, HST4, HSL4, HSA, etc.) up to M24 in concrete
- Repeatable, controlled fastening of metal bolts
- Installing T-bolts in HAC-V and HAC-C cast-in anchor channels for fastening curtain wall facades, lifts and MEP installations
- Assembling MI, MQ, MIQ and MT modular support systems using compatible connectors
- Setting of compatible Hilti wedge anchors (e.g. KB1, KB3, KB-TZ2 and HSL4) up to 3/4" in concrete
Technical Data
Documents
-
- Operating Instruction SI-AT-22 Metric Anchors, Italian, Hebrew, Serbian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Finnish, Malay, Spanish, Thai, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 3.6 MB ]
- Operating Instruction SI-AT-22 (02), Italian, Hebrew, Serbian, German, Turkish, Russia, Swedish, Ukrainian, Arabic, French, Portuguese, Finnish, Spanish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 5.4 MB ]
- Operating Instruction SI-AT-22 Chemical Anchors, Italian, Hebrew, Serbian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Finnish, Malay, Spanish, Thai, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 4.8 MB ]
- Operating Instruction SI-AT-22 MQ-System, [ 2.1 MB ]
- Operating Instruction SI-AT-22 MT-System, [ 3.1 MB ]
- Operating Instruction SI-AT-22 T-Bolt metric, [ 2.6 MB ]
- Operating Instruction SI-AT-22 MIQ-System, [ 1.6 MB ]
Instructions for use videos
-
SI-AT-22 How-To (16:9, EN)
