Nuron

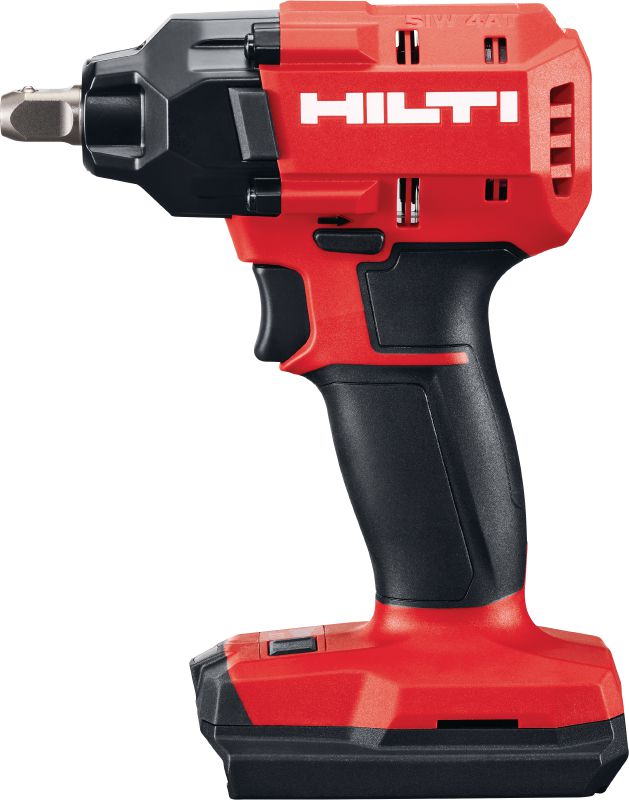

SIW 4AT-22 ½” Cordless impact wrench

Cordl. imp. wrench SIW 4AT-22 1/2" box #2291190

Configurator
Technical Data
Documents
Features & Applications
Related Products
L129998 (2485736)
L146404_cropped (2587817)
L146421_cropped (2587822)
L146426_cropped (2587833)
L146440_cropped (2587866)
L146456_cropped (2587812)

Compact-class cordless impact wrench with the ultimate balance of power and handling (Nuron battery platform)

  • Anvil type: 1/2" detent pin
  • Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
  • Full hammering frequency: 3500 impacts/minute

Customise your kit

Tool body
Tool body with cardboard box
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£304.00

Technical Data

Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 213 Nm (3) 1
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
152 x 68 x 215 mm
Tool body weight
1.03 kg
A-weighted emission sound pressure level
96 dB (A) 2
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 4AT-22 (01), Arabic, cn, Danish, English, Spanish, Finnish, Japanese, Kazakh, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • The ideal cordless impact wrench for non-structural fastening, such as MEP supports and handrails
  • Longer tool lifetime – brushless motor means the impact wrench lasts longer and gets more work done per charge
  • Automate precise torquing – add the optional SI-AT-22 Adaptive Torque Module to save time when installing compatible anchors in line with approvals
  • Faster anchor setting with more control – three speed settings and improved LED light
  • On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

  • Bolting steel – such as for handrails, racking and machinery (M8-M16 diameter)
  • Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (6-8 mm diameter)
  • Lag bolting in wood – such as for wooden roofs or temporary structures (8-10 mm diameter)
  • Setting wedge anchors in concrete (M8-M16 diameter)
  • Driving screws into 8 mm and 10 mm HRD frame anchors in masonry and concrete
