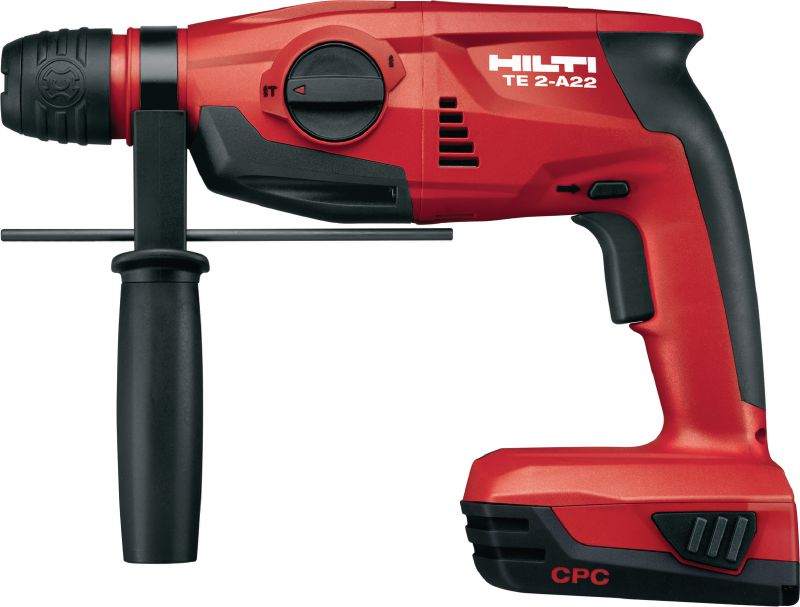

TE 2-A22 Cordless rotary hammer
Compact pistol-grip 22V cordless rotary hammer for superior handling
- Weight according to EPTA-Procedure 01/2003 without battery: 2.7 kg
- Optimum hammer drilling range: 4 - 12 mm
- Single impact energy: 1.5 J
Customers also searched for SDS drill, drill or hammer drill.
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
2.7 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.5 J
Hammer drilling diameter range
4 - 16 mm
Hammer drilling RPM
980 rpm
Full hammering frequency
5040 impacts/minute
Functionality
LED working light, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.7 m/s² 1
Triaxial vibration for chiselling in concrete
12.7 m/s² 2
A-weighted emission sound power level
103 dB (A) 3
A-weighted emission sound pressure level
92 dB (A) 4
Dust removal system available
TE DRS-D, TE DRS-S
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Features & Applications
Features
- Compact cordless tool which delivers corded power without the cord
- Compact size and light weight for superior handling
- LED work light provides direct illumination of the work surface
- Best-in-class durability backed by Hilti Lifetime Service covering the tool and accessories
Applications
- Construction: Light-duty drilling in concrete and masonry
- Interior finishing: Installing partition walls and suspended ceilings
- Metal fabricators: Fastening metal items such as handrails, staircases, sun blinds, barriers, etc.
- Electricians: Electrical installation work
- Telecom contractors: Installing telecom equipment, cables and switchgear
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- 3-month no-cost period after each repair
- One click or call is all it takes – we do the rest
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Free verification of tool accuracy in accordance with manufacturer’s specifications.
- Individual labels and online visibility provide tool fleet transparency
- Theft coverage helps to reduce financial risk and unexpected expenses.
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- Materials and workmanship warranty over the entire life of the tool
- 6-month no-repair-cost period again after every repair
- After the no-cost period, repair costs are capped for as long as we service the tool
- Pick-up and delivery service
Related Products
Ultimate SDS Plus (TE-C) hammer drill bits sets with different bit diameters and lengths (metric)
Hard-sided carrying case for storing and transporting your Hilti rotary hammer and its accessories
Dust removal system for concrete and masonry drilling with all rotary hammers

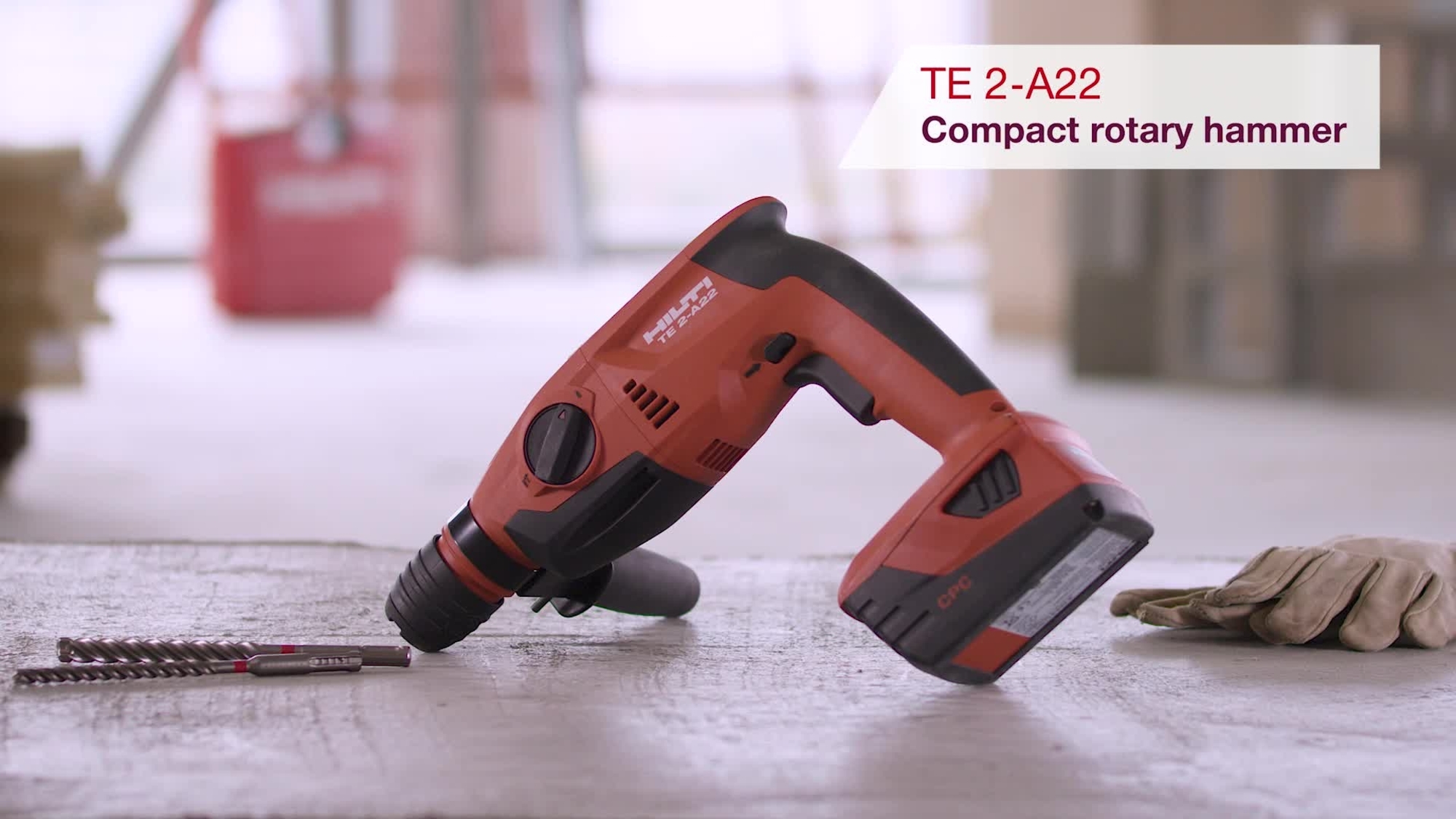

Product Videos
