MT-THB OC T-head bolt

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £115.50

Technical Data

Material composition

Bolts: F Class 8.8 per ISO 898-1, Polyamide PA 6, Nut: ISO 898-2 10

Surface finish

Hot-dip galvanized, 55 µm - DIN EN ISO 1461, bolt, nut: min. 40 µm - DIN EN ISO 10684

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

pdf MT Systems Brochure W4569 [ 1.6 MB ]

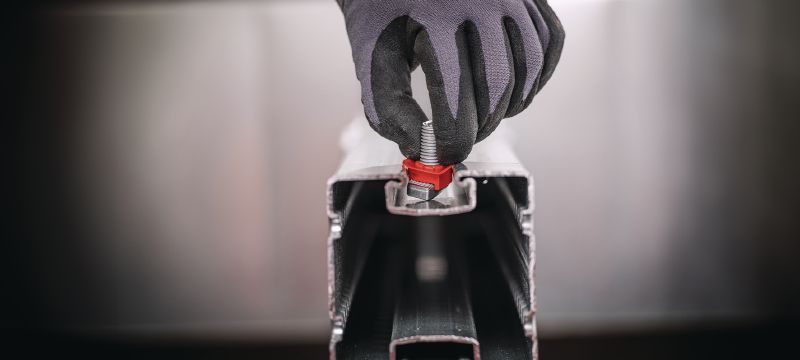

Simple to adjust – can be inserted and adjusted at any point along the profile, with 2.5 mm (1/8") incremental adjustments
Faster to install – switch between MT Thread Forming Bolts (MT-TFB) and MT T-head bolts (MT-THB) without interruption, thanks to matching socket size and AT-Module torque parameters
Reliable connections – compatible with the Hilti Adaptive torque system for tightening bolts to the correct pretension (compatible tool and SI-AT module required)
Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

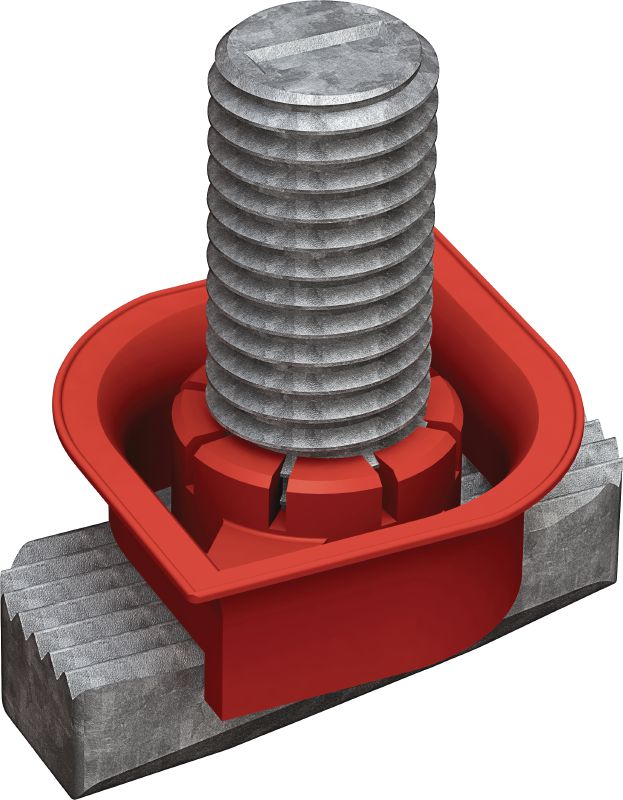

Simple but secure bolt for fastening connectors and other construction elements to MT profiles

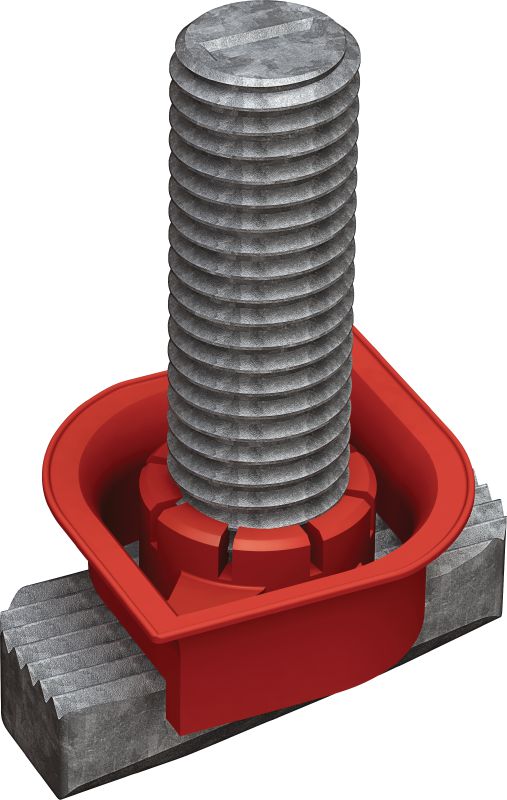

Optional M12x33 version for overhead grid applications

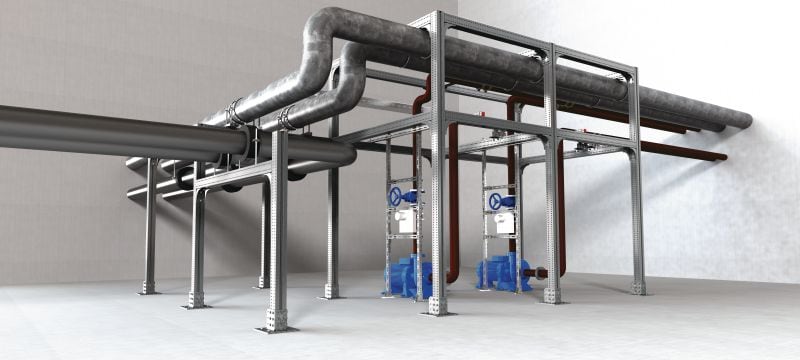

Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
Process piping for energy and industry applications
Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage

For approval or certificate information, please see individual items.
