MT-AS B OC pipe ring saddle

Configurator
Technical Data
Documents
Features & Applications
Related Products
L151177 (3548897)
L151178 (3548904)
L133735_cropped (3606883)
02_IS_MT-AS B M16 OC_0001 (3618345)

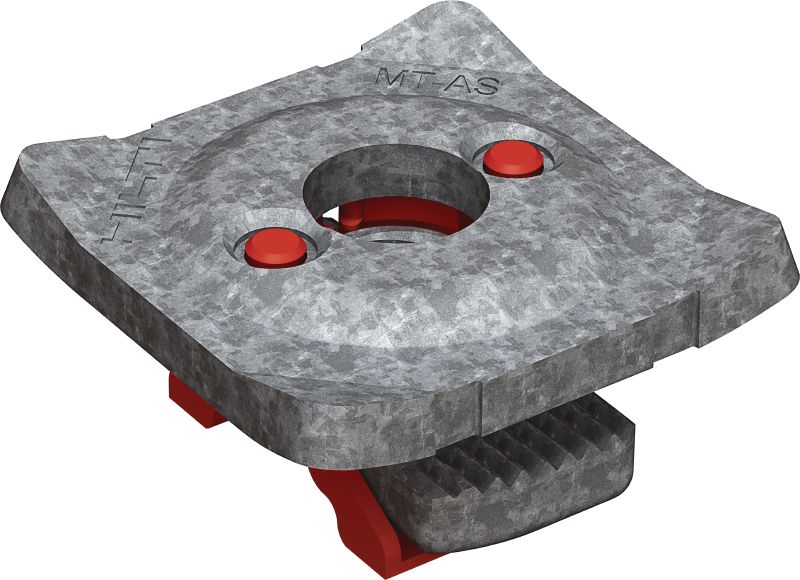

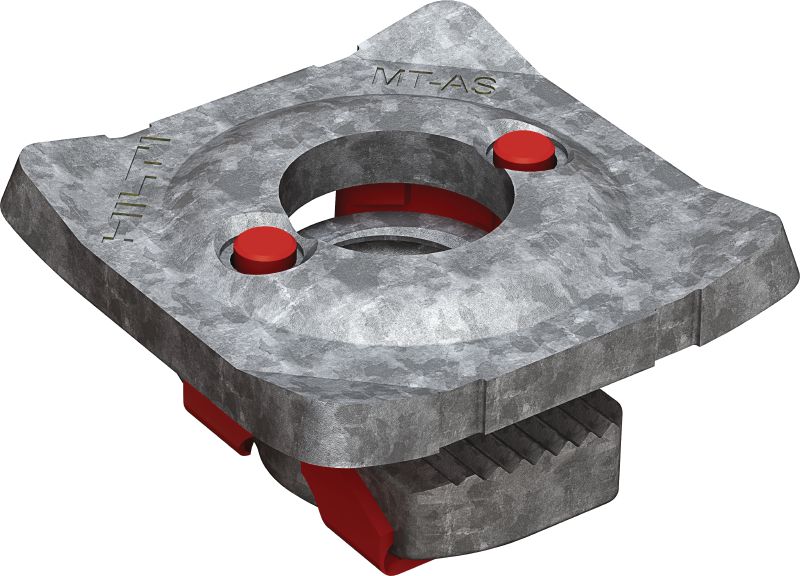

Pipe ring saddle for connecting threaded components to MT C-Channels, in moderately corrosive environments

  • Material composition: Nut: C4C - EN 10263-2, DD11 MOD - HN 547, Plastic: PBT
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £86.25

Technical Data

Details
Technical illustrations
Material composition
Nut: C4C - EN 10263-2, DD11 MOD - HN 547, Plastic: PBT
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Brochure
Technical information
Approval document
Declaration of performance
Operating Instruction
pdf MT Systems Brochure W4569 [ 1.6 MB ]

Features & Applications

Features

  • Fewer work steps – faster installations in under three work steps and serrated design to help pre-secure connecting elements for better handling
  • Simple to adjust – can be inserted and adjusted at any point along the profile, with 2.5 mm (1/8") incremental adjustments
  • Reliable installations – approved for shear loads for secure connections
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

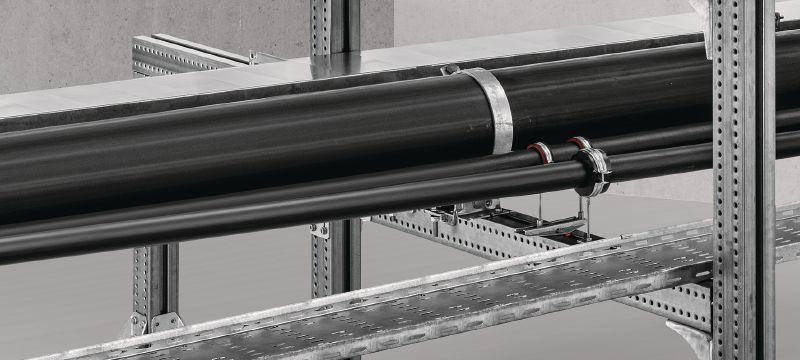

  • Attaching MEP media (hardware) to MT C-Channel profiles when shear load resistance is required
  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications
  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
  • Integrated modules and skids to support industrial pipes and other heavy-duty building services

For approval or certificate information, please see individual items.
