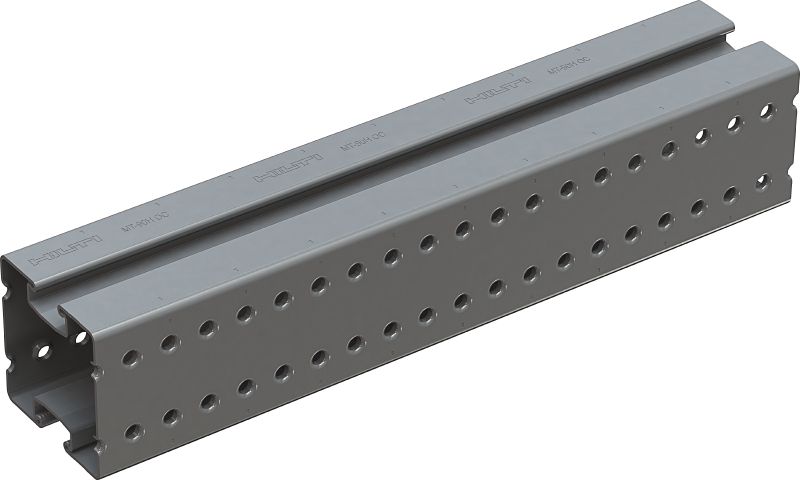

MT-90H OC Box profile
heavy-duty box profile for use with MT-TFB and MT-THB/MT-HL components in outdoor environments
- Material composition: S350 or better steel
- Surface finish: Outdoor Coated - ZM
- Material thickness: 2.25 mm
Technical Data
Material composition
S350 or better steel
Surface finish
Outdoor Coated - ZM
Material thickness
2.25 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features

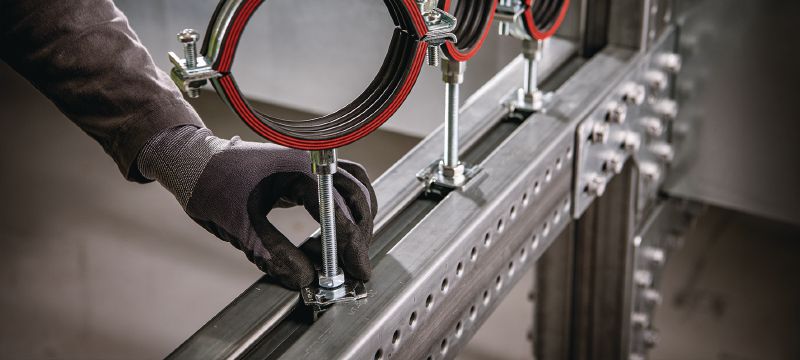

- Fast and flexible assembly – mounting slot with pre-holding function allows you to quickly attach, adjust, re-adjust connectors at any point along the section, helping reduce costly errors and re-work
- Simpler to design – you can use all Hilti MT System components for the lightest to heaviest-duty MEP installations, helping to simplify your designs, logistics and on-site operations
- Simpler to instal – domed-holes combine with the MT Thread Forming Bolts, for full integration with a wide range of MT connectors and baseplates
- Lighter and more cost-effective – steel with improved load efficiency makes MT-90H OC box profiles an efficient alternative to welding for many heavy-duty MEP supports and modular structures
- Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
Applications

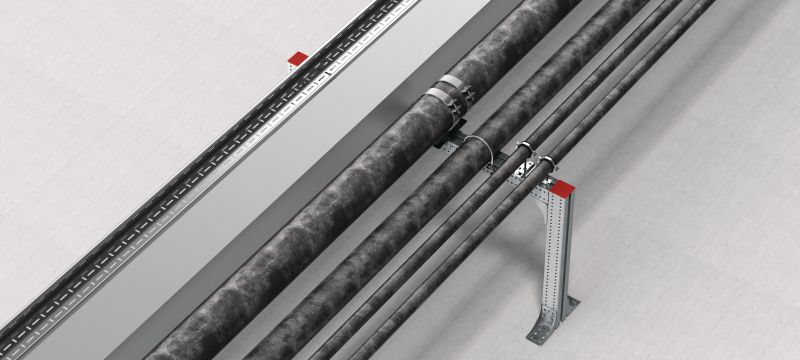

- Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
- Process piping for energy and industry applications

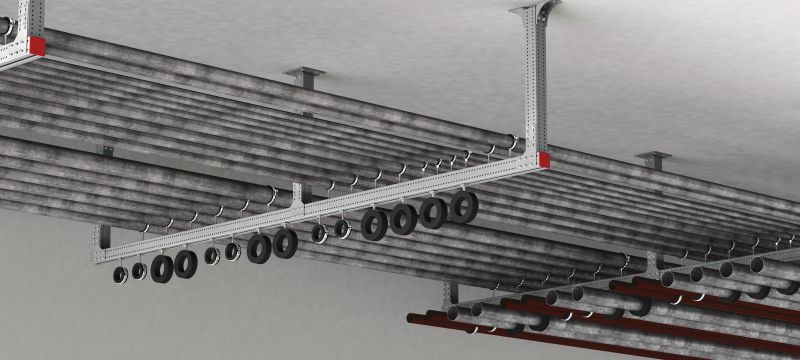

- Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage

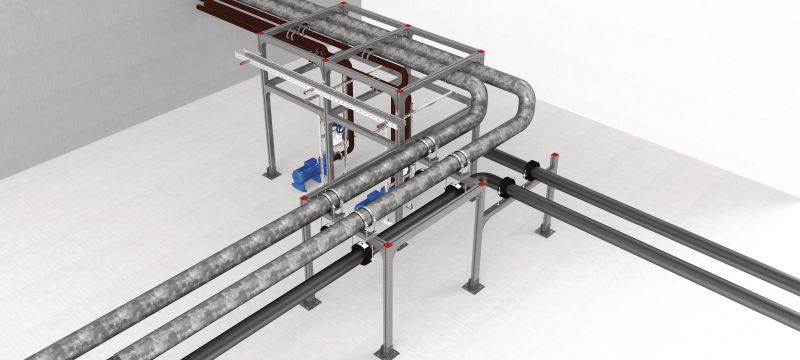

- Integrated modules and skids to support industrial pipes and other heavy-duty building services
- Floor-mounted MEP support structures with heavy loads
For approval or certificate information, please see individual items.
