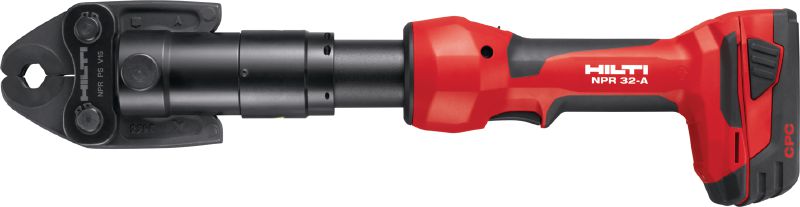

NPR 32-A Pipe press tool
Cordl. press tool NPR 032 IE-A22 case #2168657
Versatile 22V cordless press tool for metal pipes up to 66.7 mm and plastic pipes up to 110 mm
- Press force: 32 kN
- For use with jaws: NPR PS **; NPR PA **
- Head rotation: 350 °
Customers also searched for Pipe press, NPR, Cordless pipe press, 32 kN pipe press or Large Press.
Technical Data
Press force
32 kN
For use with jaws
NPR PS **; NPR PA **
Head rotation
350 °
Tool body weight
2.22 kg
Dimensions (LxWxH)
410 x 75 x 120 mm
Service interval
15,000 cycles or 1 year
Documents
Features & Applications
Features
- Rotating head – 350 degree rotation to allow for access in many applications
- Safety locking pin – can only be closed in correct position
- Automatic jaw retraction – returns to initial position once press operation is completed
- Pressure sensor – tool does not retract unless the right pressure has been achieved
- Safety warnings – audio-visual signals to warn the operator in case something went wrong
Applications
- Pressing range up to 54 mm for steel pipes*
- Pressing of Mapress® steel pipes made by Geberit® up to 66.7 mm*
- Pressing range up to 54 mm for copper pipes*
- Pressing range up to 110 mm for plastic pipes*
- Pressing range up to 4" for ProPress XL-C copper pipes*
Services
Hilti Tool Service
- After 2 years repair costs are capped
- 3-month no-cost period after each paid repair
- One click or call is all it takes – we do the rest
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Individual labels and online visibility provide tool fleet transparency
- Theft coverage helps to reduce financial risk and unexpected expenses.
Related Products
Press jaws for M profile press fittings up to 35 mm. Compatible with NPR 32-A pipe press tools
Press jaws for TH profile press fittings up to 50 mm. Compatible with NPR 32-A pipe press tools.
Press jaws for U profile press fittings up to 50 mm. Compatible with NPR 32-A pipe press tools.
Press jaws for V profile press fittings up to 54 mm. Compatible with NPR 32-A pipe press tools.
