Nuron

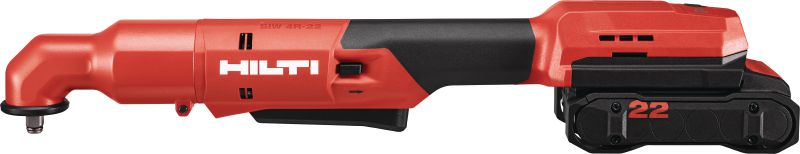

SIW 4R-22 3/8" Right-angle impact wrench
Cordl. RA imp wrench SIW 4R-22 3/8" box #2349973
Compact, cordless right-angled impact wrench for reaching tough to access applications
- Anvil type: 3/8" anvil
- Maximum torque: 37 Nm (1); 106 Nm (2)
- Full hammering frequency: 3800 impacts/minute
Customise your kit
Tool body with cardboard box
How many kits do you want to order?
Discounted net
£290.00
Technical Data
Anvil type
3/8" anvil
Maximum torque
37 Nm (1); 106 Nm (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
A-weighted emission sound pressure level
97 dB (A) 2
Rated voltage
21.6 V
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Access to hard to reach spaces where other tools won't fit
- Reach even further into confined spaces with the longer grip and in-line battery interface
- Robust 3/8" anvil with friction ring for quick and easy socket changes
- Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
- Strong LED light provides more powerful illumination of the work area
Applications
- Bolting steel – such as for handrails, racking and machinery (M8-M10 diameter)
- Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (6 mm diameter)
- Driving screws into 8 mm and 10 mm HRD frame anchors in masonry and concrete
- Metal bolting in steel – such as handrails, racking and machinery
Related Products
Nuron
Compact and light 22V Li-ion battery for light-duty tasks using Nuron power tools
Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, hex head)
