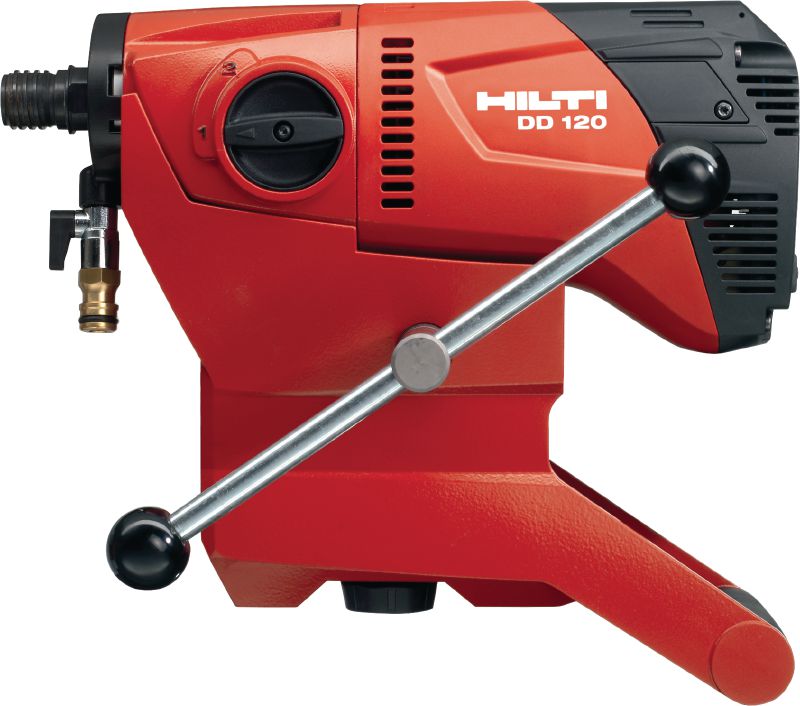

DD 120 Core drill

L015506_v2 (192823)
43626.tif
L015509_v2 (227385)
9451.tif
9452.tif
9453.tif
9454.tif

Extremely compact, light and mobile diamond coring machine for rig-based concrete coring from 16-162 mm (5/8 - 6-3/8") in diameter

  • Diameter range: 16 - 162 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for diamond-drilling, rig or coring.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £4,268.01

Technical Data

Diameter range
16 - 162 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Rated input power
1600 W
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.5 kg
Weight of complete system
11 kg
Dimensions (LxWxH)
327 x 147 x 330 mm
A-weighted emission sound pressure level
89 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
Corner accessibility
49 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DD 120 (01), Arabic, cn, English, French, Japanese, Kazakh, Korean, Russian, Turkish, Ukrainian, Chinese [ 8.4 MB ]
pdf Operating Instruction DD 120 (01), Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Serbian [ 12 MB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively designed features and controls
  • Compact and lightweight concrete core drill – for much easier handling

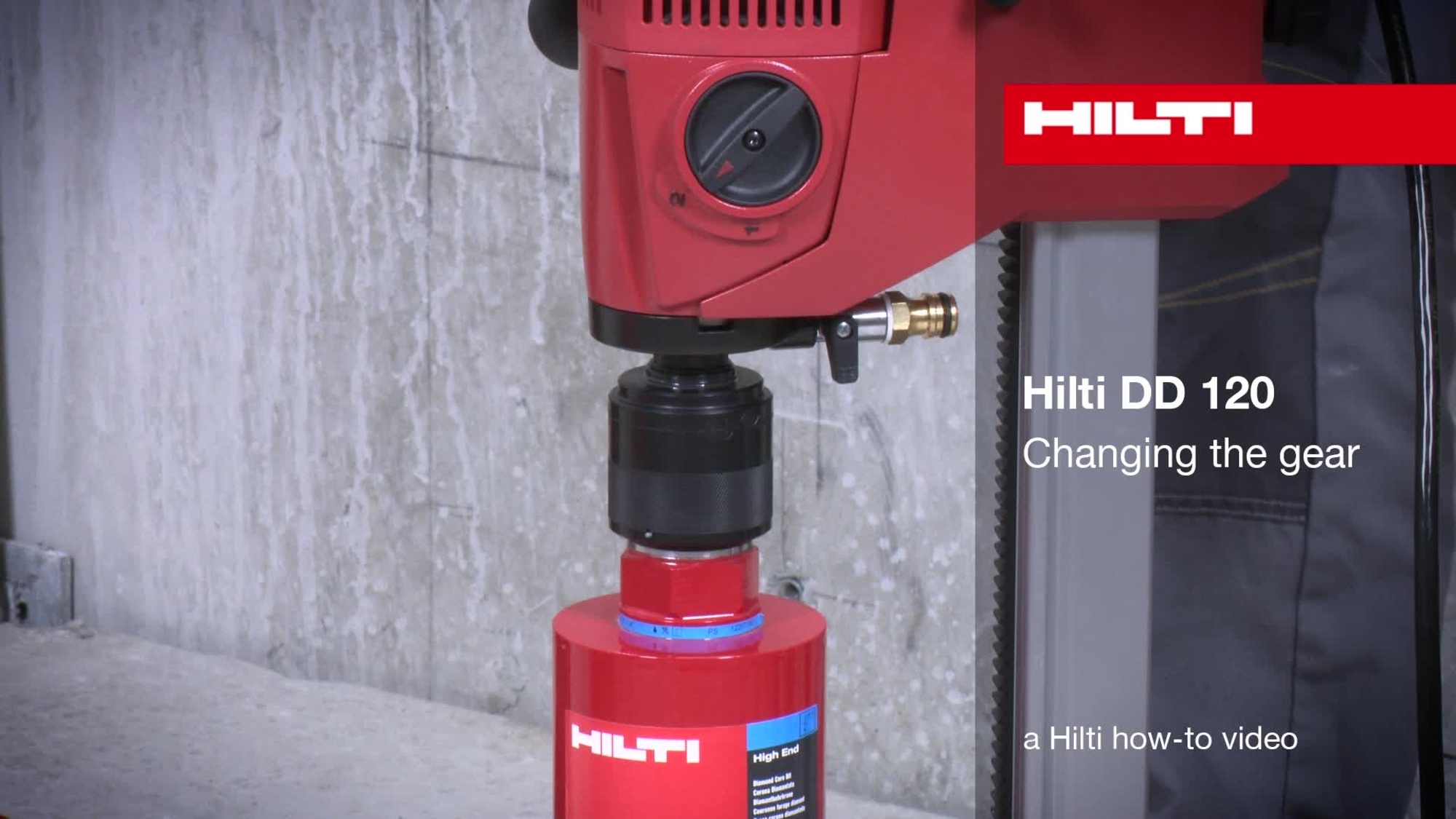

  • Two-speed gearing for optimum speed and torque
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

  • Installing pipes for sanitary, heating and air conditioning
  • Installing water supply and waste water pipes
  • Making openings for cable trays
  • Setting large-diameter anchors and reinforcing bars
  • Installing railings and barriers

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • 3-month no-cost period after each paid repair
  • One click or call is all it takes – we do the rest
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
  • Individual labels and online visibility provide tool fleet transparency
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
