A single unit for the supply of cooling water as well as the collection and filtration of wastewater from diamond drilling systems

  • Filling volume: 14 l
  • Supplied water volume per filling: 100 l
  • Flow rate: 2 l/min

Customers also searched for water collection system water supply unit core drill water pump or slurry water recycling.

Technical Data

Filling volume
14 l
Supplied water volume per filling
100 l
Flow rate
2 l/min
Hose length
5000 mm
Weight
22.5 kg
Dimensions (LxWxH)
520 x 380 x 650 mm
IP protection class
IP X5 (EN 60529)
A-weighted emission sound pressure level
76 dB (A) 1
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Keeps jobsites clean – slurry is directed into Hilti water collection systems
  • Provides up to one full day of water autonomy for wet diamond coring applications
  • Virtually maintenance-free
  • Easy disposal process – all the slurry is collected in the filter bag
  • One filter bag recycles wastewater up to 7 times; equal to 100 litres of water

Applications

  • Suitable for all wet diamond coring applications
  • Works with all Hilti diamond coring tools
  • Operates in 3 modes – recycling, vacuum cleaning and water supply

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After 2 years repair costs are capped
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management

Product Videos

Arrange a Demo & Support

Would you like an interactive demonstration of this product? Meet one of our product experts for a free and hands-on presentation.

Use this instant messaging tool to get easy and quick access to our Customer Service team.</br>This service is available during business hours Mon - Thur 09:30 - 16:00 & Fri 09:00 - 16.00

Let us call you back and connect you with one of our competent Hilti advisors. You will be contacted within a couple of minutes during business hours 8:00 AM – 5:00 PM.

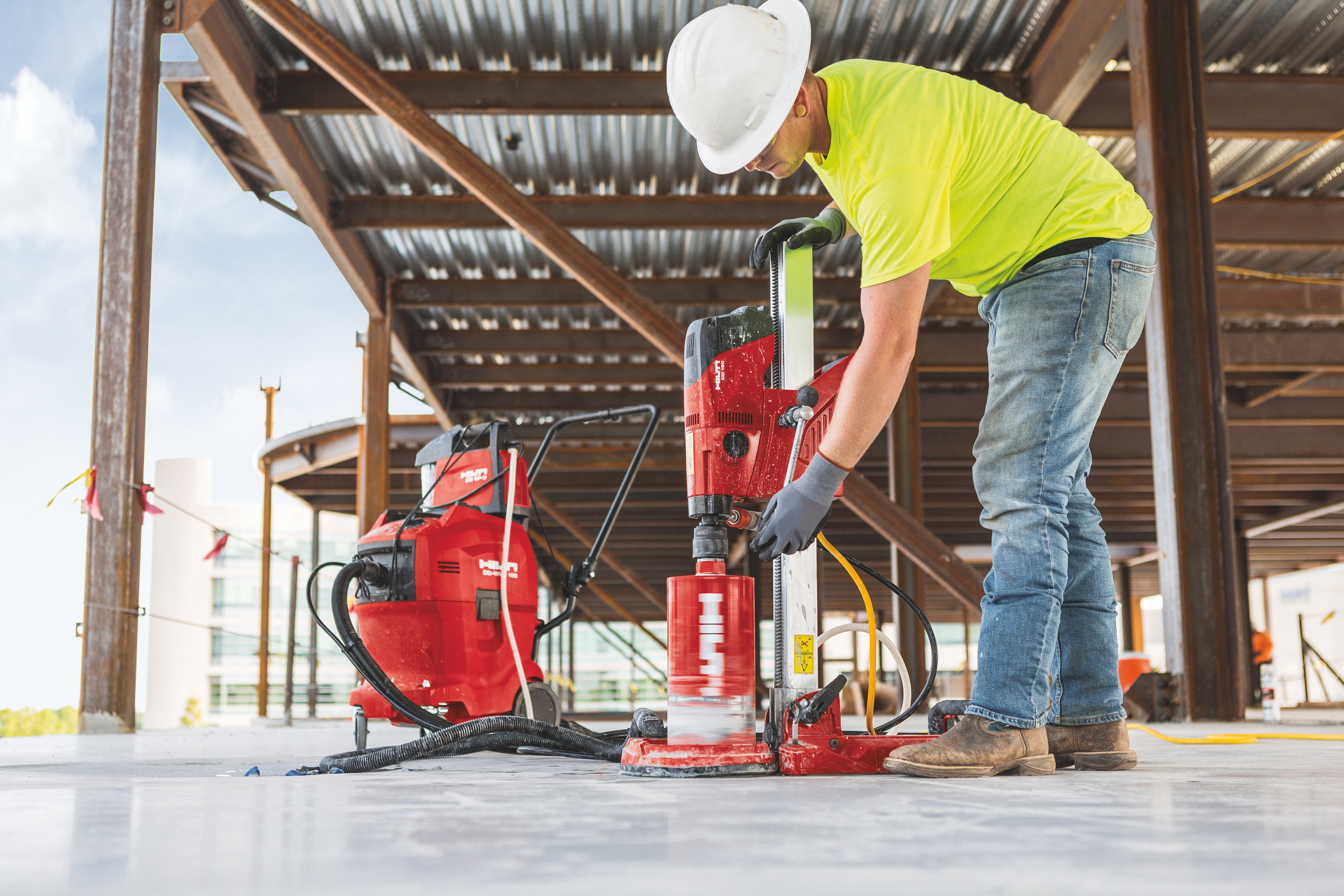

Constant water supply and a clean jobsite during drilling

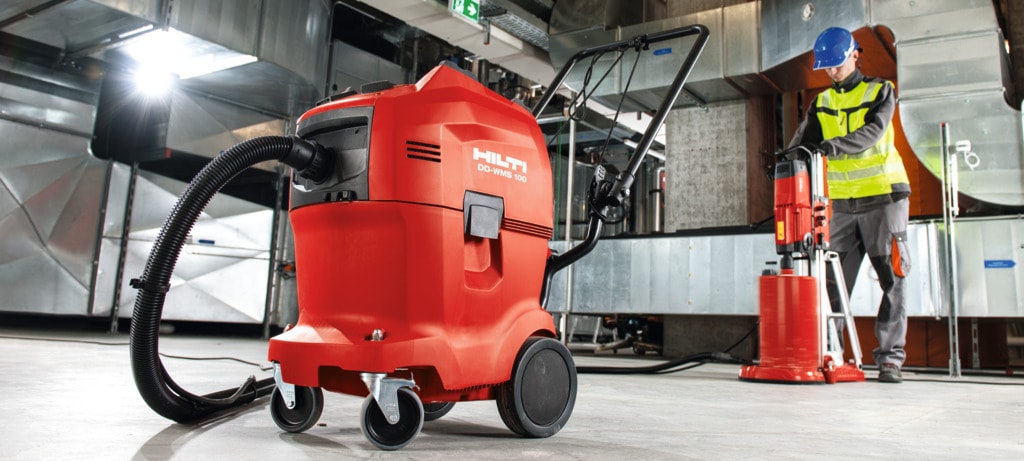

The new way of diamond drilling with DD-WMS 100 Water Management System

Diamond Drilling is a safe and efficient way to make clean openings in any base material, however it does require some time to get set-up and then there’s the clean-down to think of when you’re finished. In fact, the time it takes to actually do the drilling may be one of the shortest steps in the process!

Keeping the jobsite clean, maintaining a constant water supply, and disposing of slurry often occupy much more of your time. With our new DD-WMS 100 Water Management System, these tasks become a thing of the past.

Thanks to the recycling mode, you can drill for a full day with just one load of water and the slurry is taken care of while you drill. Diamond drilling has never been so quick and easy!

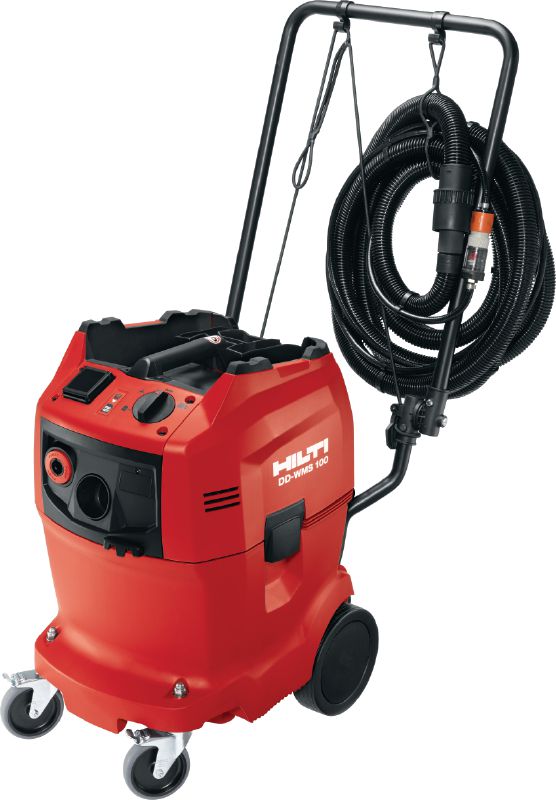

DD-WMS 100  Water Management System

One full day of water autonomy

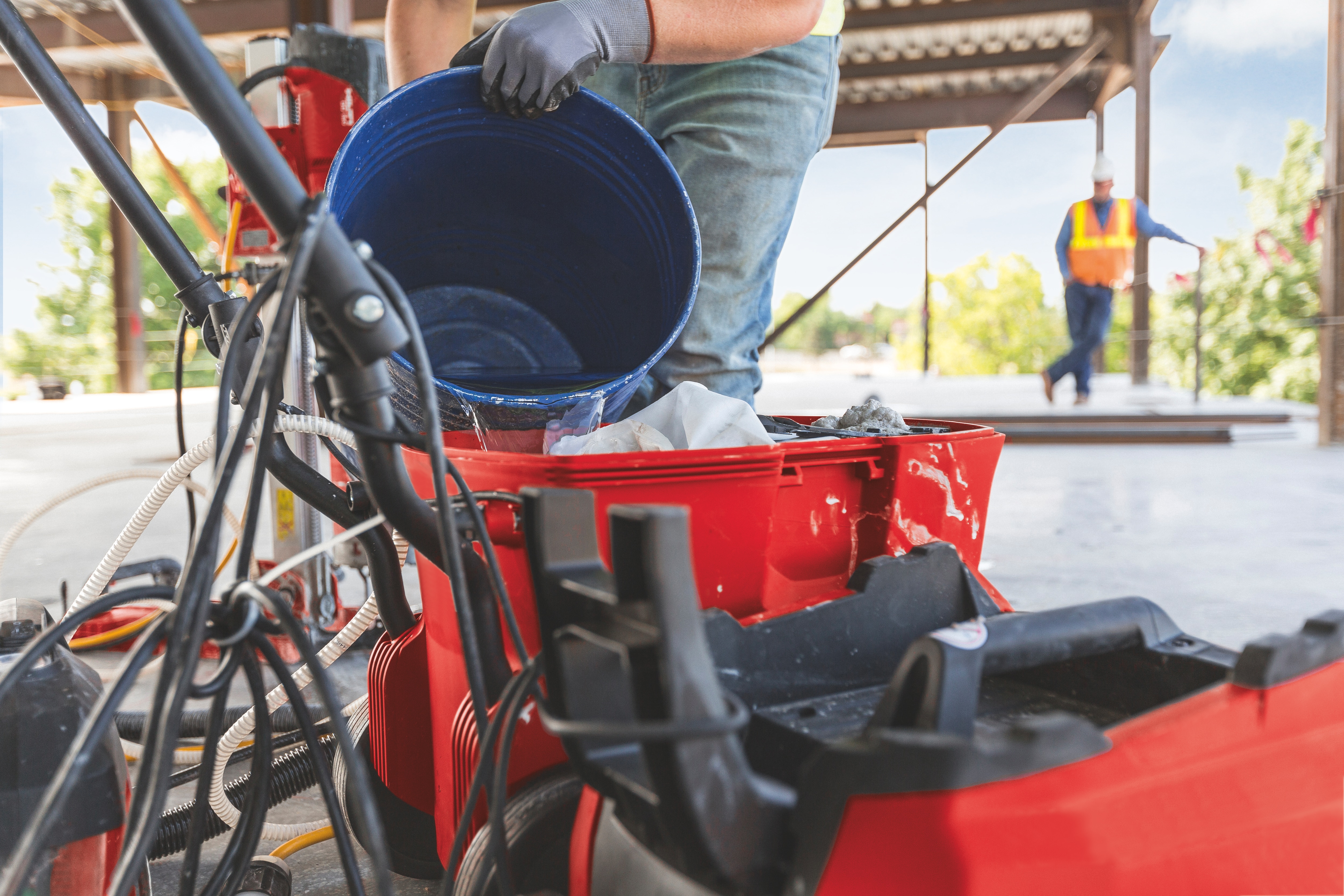

All you need to do is fill up the water tank and insert a filter bag. As the water is recycled up to 7 times, this is equivalent to about 100 L of continuous water supply. The large wheels and convenient handle bar also make it easy to move the DD-WMS 100 around on the jobsite.

Clean drilling

Dust and slurry often lead to additional labour time spent on cleaning up, decreasing your jobsite productivity even further. With our range of water collection accessories for diamond drilling tools, we can help you save time and money.

Diamond drilling is no longer a messy job!
