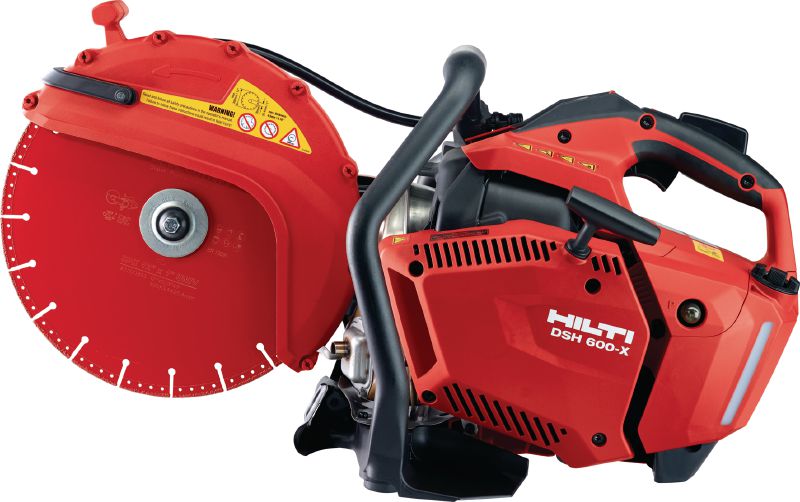

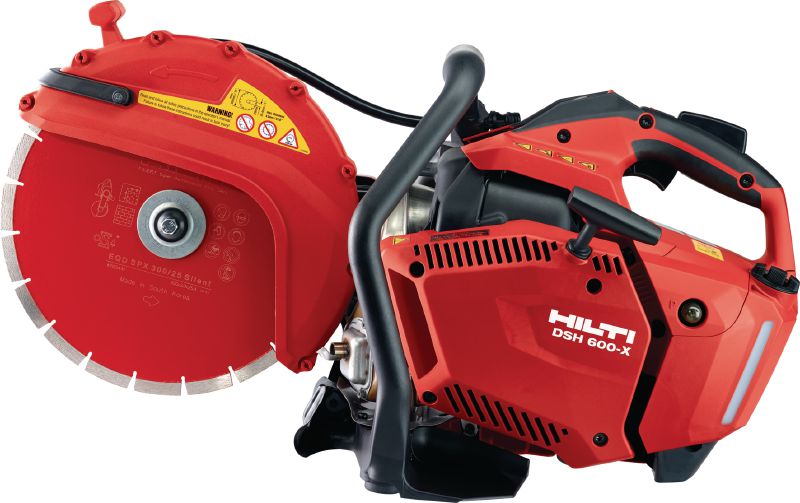

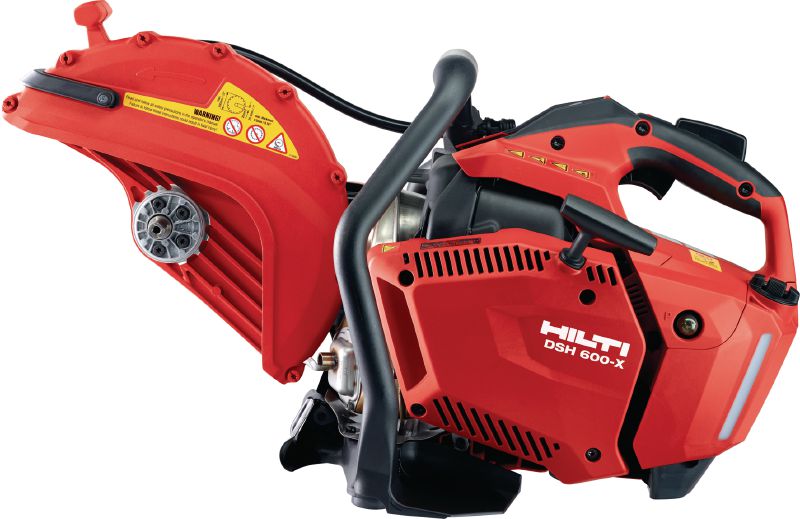

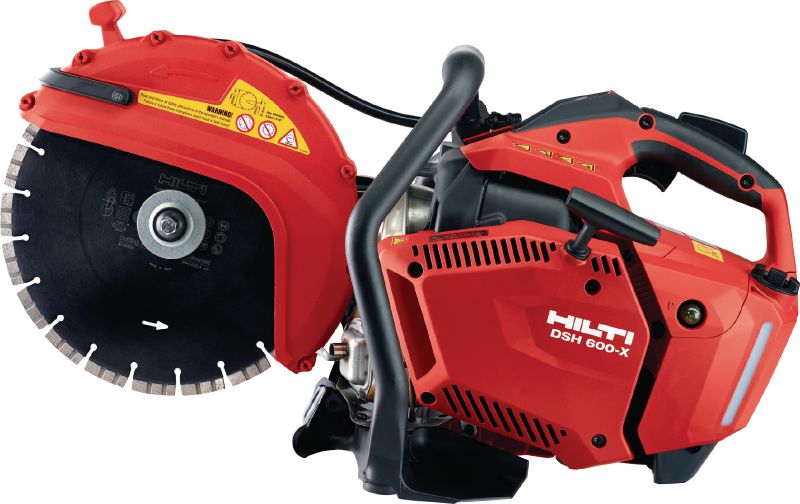

DSH 600-X Petrol cut-off saw (300mm)
Compact top-handle petrol saw (63cc) with blade brake, for cutting up to 120 mm with 300 mm blades in concrete, masonry and metal
- Motor cylinder: 63.3 cm³
- Rated power: 3.2 kW
- Wet or dry operation: Wet and dry
Technical Data
Motor cylinder
63.3 cm³
Rated power
3.2 kW
Wet or dry operation
Wet and dry
Dimensions (LxWxH)
558 x 326 x 370 mm
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
102 dB (A) 1
Disc diameter
300 mm
Cutting depth
120 mm
Triaxial vibration value for cutting concrete slab (ah)
2.5 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Top-handle design for even more compactness and lighter weight
- Fast blade stop – the blade stops in less than 10 seconds
- Cutting depth up to 120 mm with 300 mm blades
- Achieve even higher cutting speeds by using with customised Hilti blades
- Pre-tensioned belt – no belt maintenance required by the user
Applications

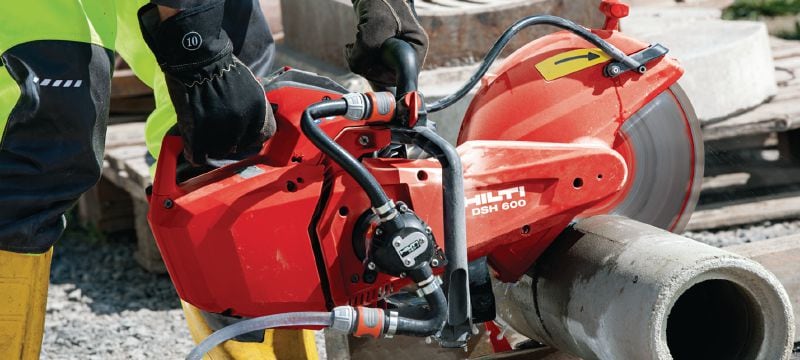

- Laying paving – cutting kerbstones and paving slabs to size
- Masonry work – cutting bricks and blocks to size
- Metalwork – cutting steel profiles, pipes and steel sheets
- Construction work – cutting out openings in brick or concrete walls
- Sewage work – cutting where working space is limited
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
Fleet Management
- Individual labels and online visibility provide tool fleet transparency
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
Related Products
Ultimate diamond blade with Equidist technology for superior cutting in different base materials
Ultimate diamond blade for superior cutting performance in metal and other base materials

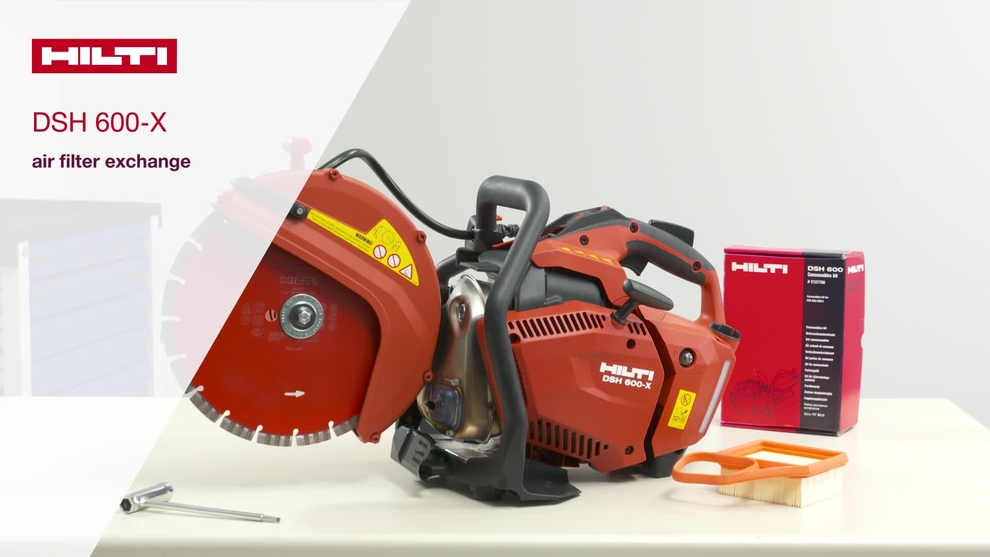

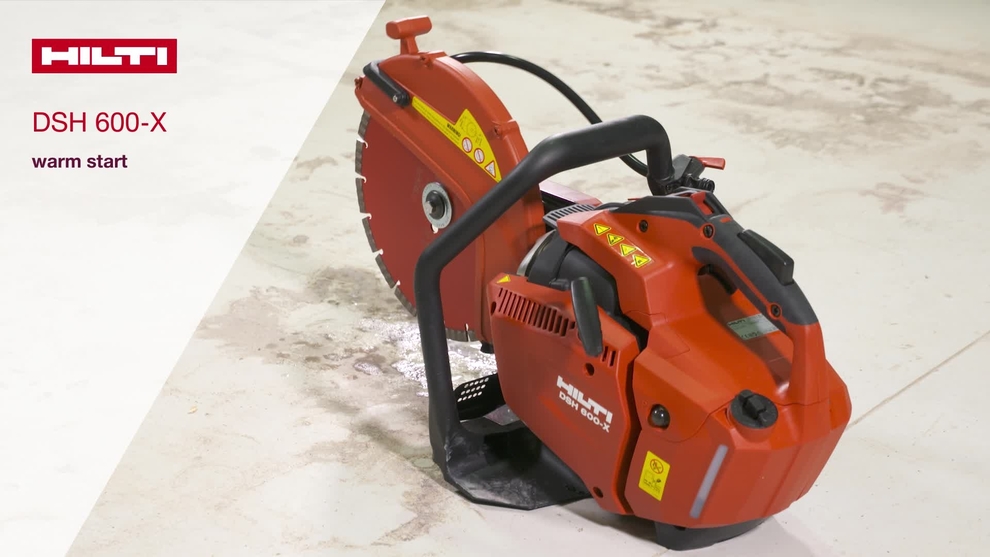

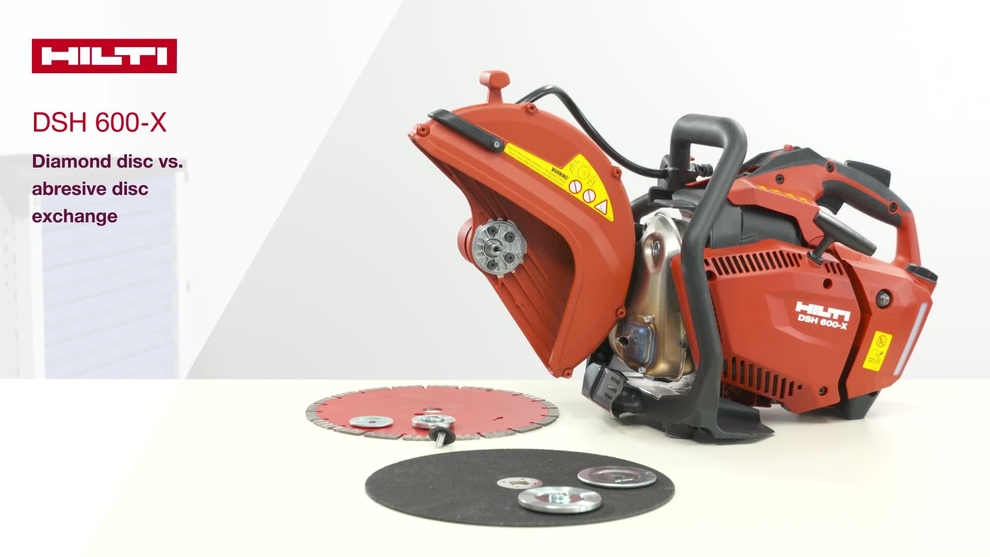

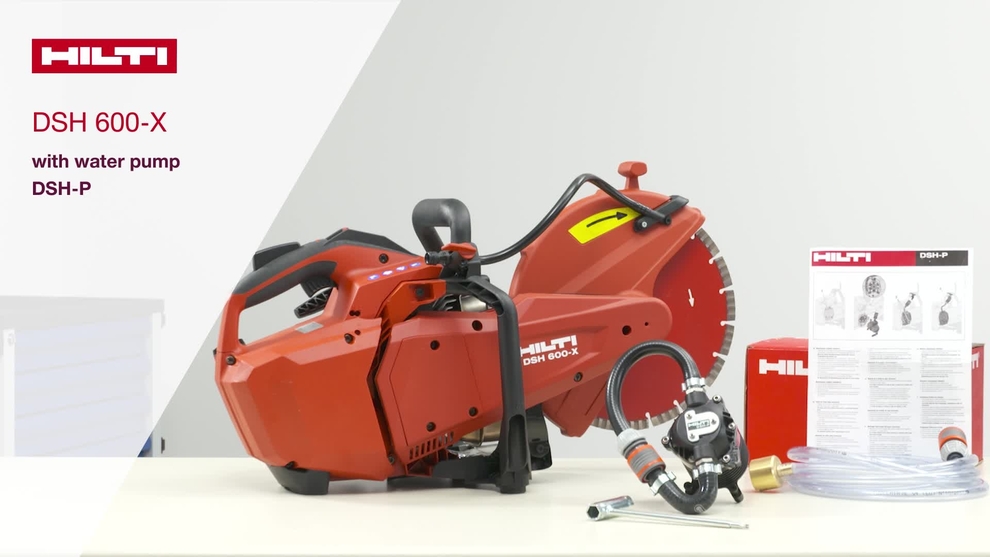

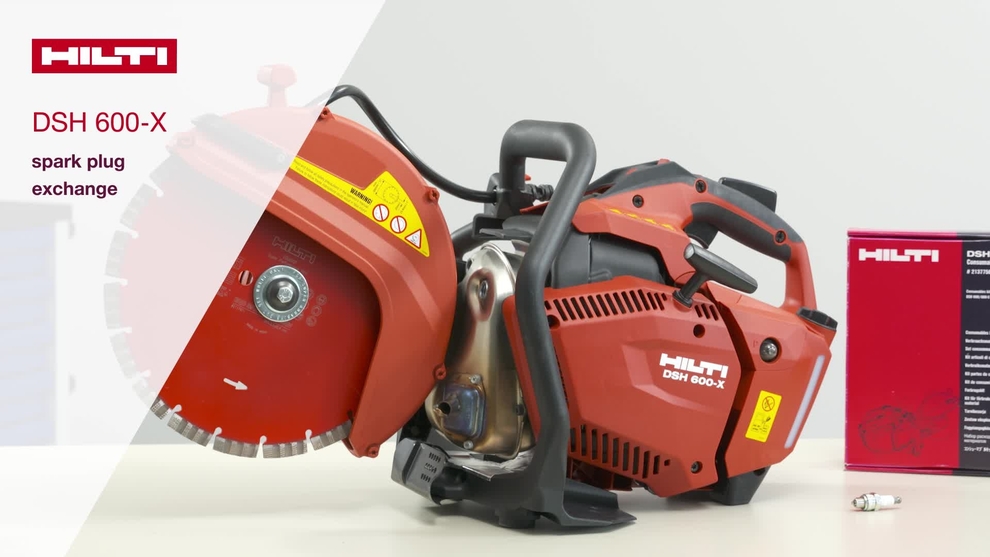

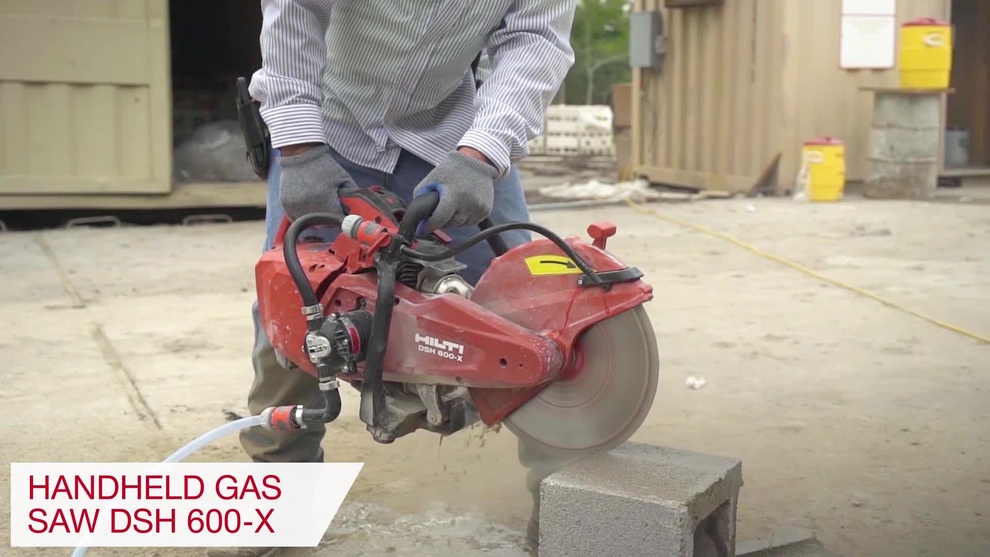

Product Videos
