MQV-3D-R Channel connector

Name: MQV-3D-R Channel connector
Brand: Hilti
SKU: r3130

New product

Item #r3130

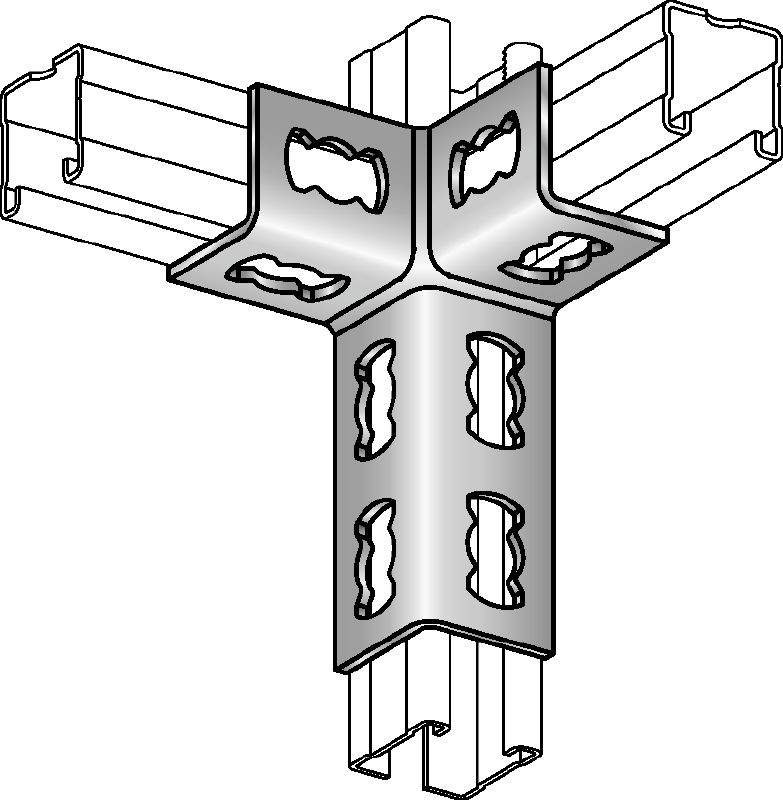

Stainless steel (A4) channel connector for three-dimensional structures

Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish: Outdoor Plus - Stainless Steel
Material thickness: 4 mm

More technical data

Features

Three-dimensional connector – engineered for high load capacity
Adjustable – easily fitted and repositioned along strut channels
Universal – complete many different applications using few parts

Applications

Connector for 3D channel design

For approval or certificate information, please see individual items.

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Connector MQV-3/3 D-R

- PDF 10_04_2022 Eurocode Product Qualification Document MQ System, [ 2.3 MB ]
- PDF Instruction for use MQV-3/3 D, [ 561.3 kB ]
