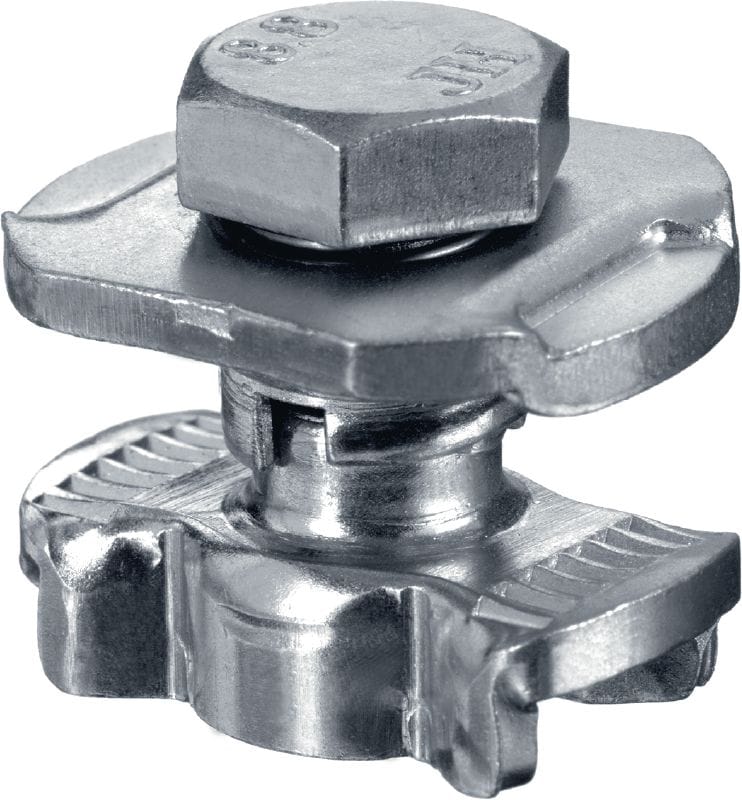

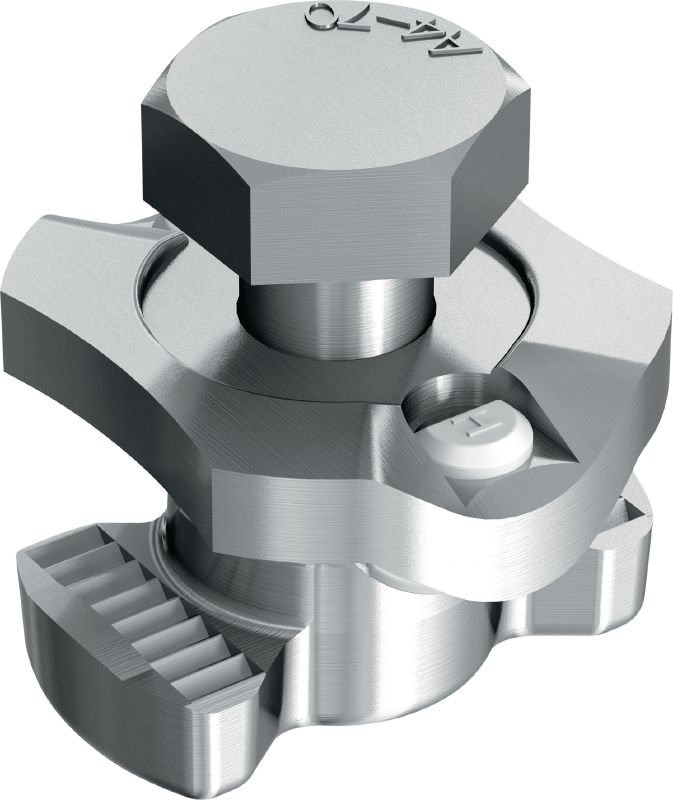

MQN-R Channel connector

LCG002219_v1 (199197)
54124.tif
MQN-F, MQN-R

Stainless steel (A4) channel connector for joining any elements with a butterfly opening

  • Approvals: VDE test potential equalisation MQ
  • Tightening torque: 40 Nm
  • Material composition: Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L

Choose options

Thread connection - M
  • M10
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£843.75
£33.75
/
1 Piece

Technical Data

Approvals
VDE test potential equalisation MQ
Tightening torque
40 Nm
Material composition
Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
For use with
All MQ channels
Wrench size
17 mm

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Designed to be simple, compact and time-saving
  • Universal – one connection element for all MQ strut channels
  • Universal – one push button for all connectors and MQ installation channels
  • Holds securely once it has been pressed, turned and tightened correctly
  • Fewer parts and high flexibility

Applications

  • Connecting stainless steel MQ brackets, angles and bases to MQ profiles
  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements

For approval or certificate information, please see individual items.
