MQA-F Pipe clamp saddle

Configurator
Technical Data
Documents
Features & Applications
Related Products
14678.eps
14676.eps

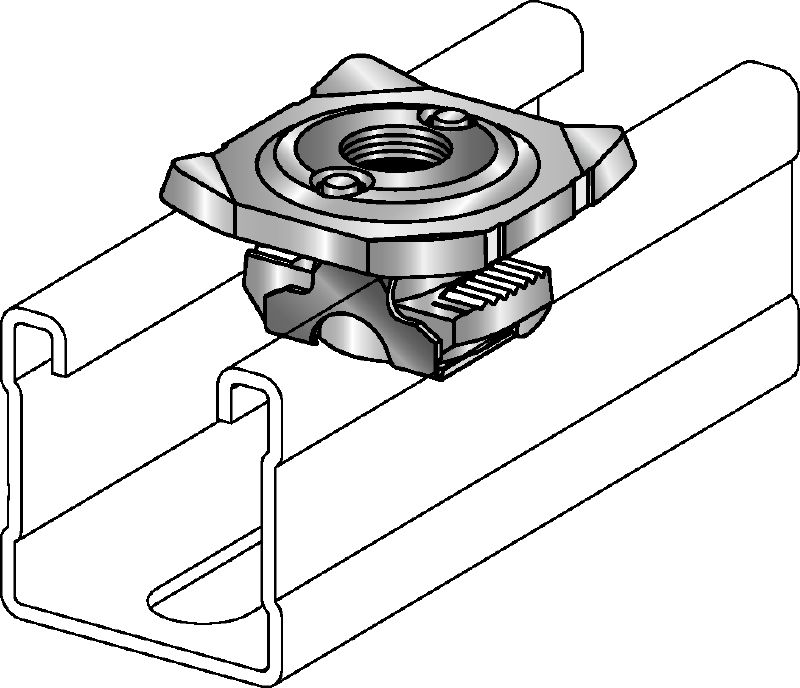

Hot-dip galvanised (HDG) pipe clamp saddle for connecting threaded components to MQ strut channels

  • Material composition: Nut: EN-GJMW-450-7 - DIN EN 1562, Plate: S235JR - DIN EN 10025, Plastic: PB
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Thread connection - M
  • M8
  • M10
  • M12
  • M16
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £273.00

Technical Data

Details
Technical illustrations
Material composition
Nut: EN-GJMW-450-7 - DIN EN 1562, Plate: S235JR - DIN EN 10025, Plastic: PB
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
For use with
MQ channels

Documents

pdf Operating Instruction MQA, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 569.3 KB ]

Features & Applications

Features

  • Quick connection of threaded components to the open side of MQ strut channels
  • Easy installation and positioning within MQ strut channel openings
  • Single, compact part – for higher productivity and flexibility
  • Various thread sizes available
  • Moveable

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
  • Recommended for use in moderately corrosive outdoor and indoor environments
  • For metric threads

For approval or certificate information, please see individual items.
