MQ-41-R C-Channel profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
18070.tif
MQ-41
14899.eps

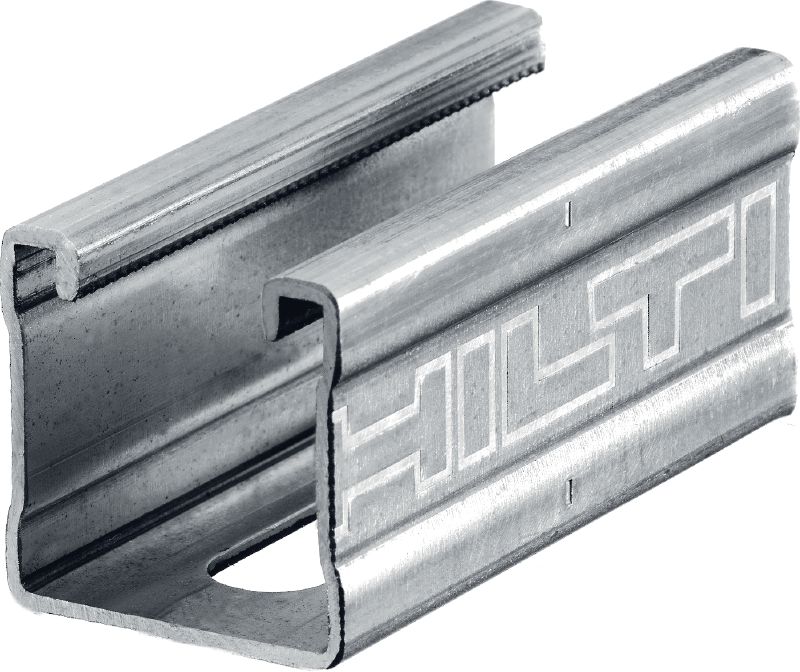

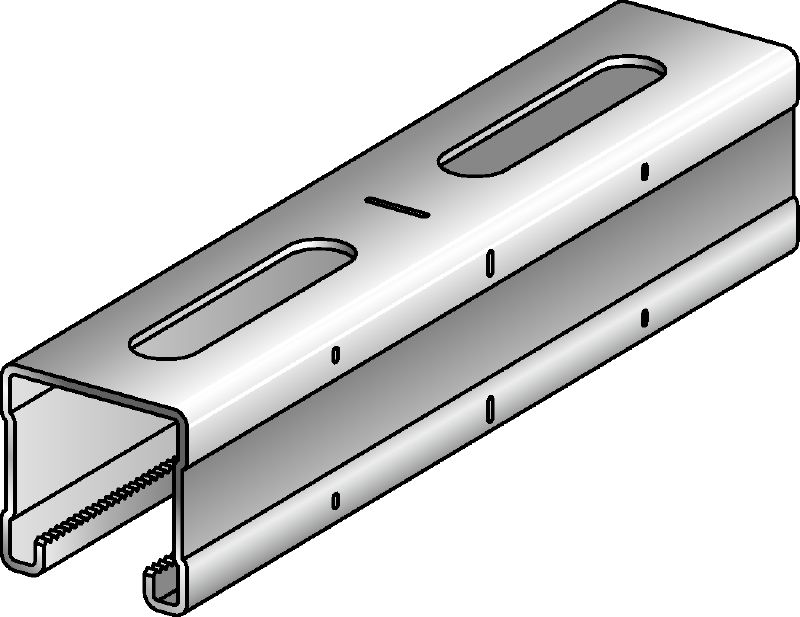

Stainless steel (A4) C-Channel profile for medium-duty applications

  • Approvals: VDE test potential equalisation MQ
  • Height: 41.3 mm
  • Material thickness: 2 mm

Choose options

Length
  • 3 m
  • 6 m
Pack size
  • 3 m
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £620.40

Technical Data

Details
Technical illustrations
Approvals
VDE test potential equalisation MQ
Height
41.3 mm
Material thickness
2 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)

Documents

Documentation
Test Report
Approval document
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimised hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in industrial atmospheres or areas with heavy condensation
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation

For approval or certificate information, please see individual items.
