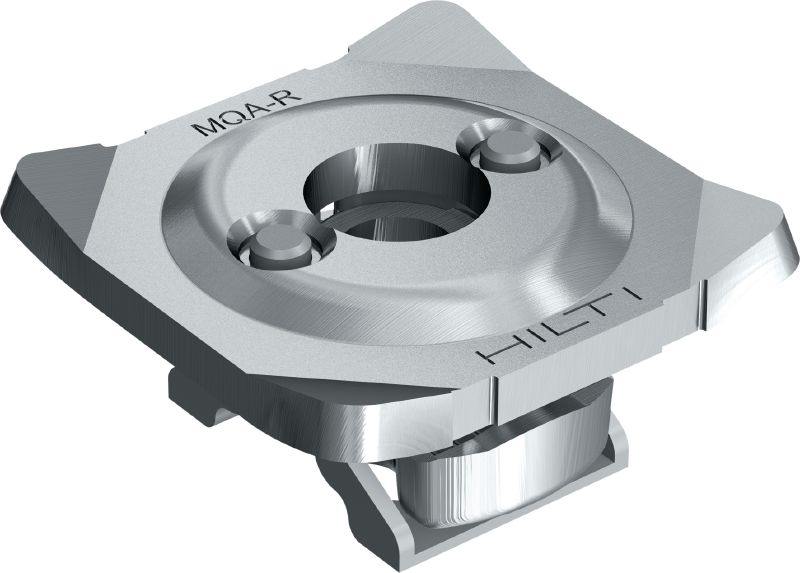

MQA-R Pipe clamp saddle

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG002253_v1 (199209)
18072.tif
14462.eps
14676.eps

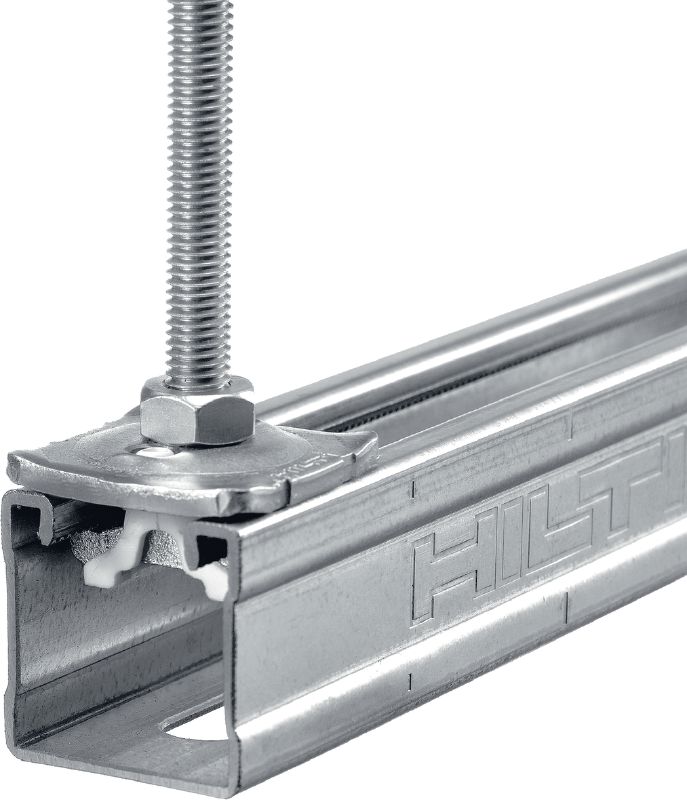

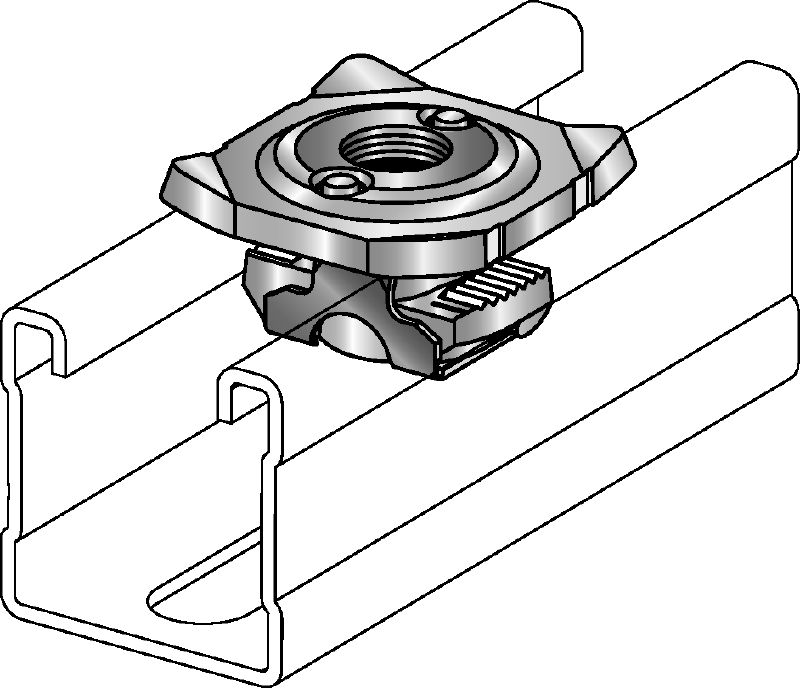

Stainless steel pipe clamp saddle for connecting threaded components to MQ strut channels

  • Material composition: Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
  • Surface finish: Outdoor Plus - Stainless Steel
  • Environmental conditions: Outdoor high pollution (C4 – high / C5)

Choose options

Thread connection - M
  • M8
  • M10
  • M12
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £666.25

Technical Data

Details
Technical illustrations
Material composition
Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)

Documents

pdf Operating Instruction MQA, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 569.3 KB ]

Features & Applications

Features

  • Quick connection of threaded components to the open side of MQ strut channels
  • Easy installation and positioning within MQ strut channel openings
  • Single, compact part – for higher productivity and flexibility
  • Various thread sizes available
  • Moveable

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
  • Recommended for use in corrosive environments
  • For metric threads

For approval or certificate information, please see individual items.
