MT-B-L FL Pre-assembled light-duty baseplate

Baseplate MT-B-L FL #2399665

Configurator
Technical Data
Documents
Features & Applications
Related Products
L150734 (3506050)
LCG004018_v2_cropped (3652079)
01_IS_MT-B-L FL_0001 (3658318)

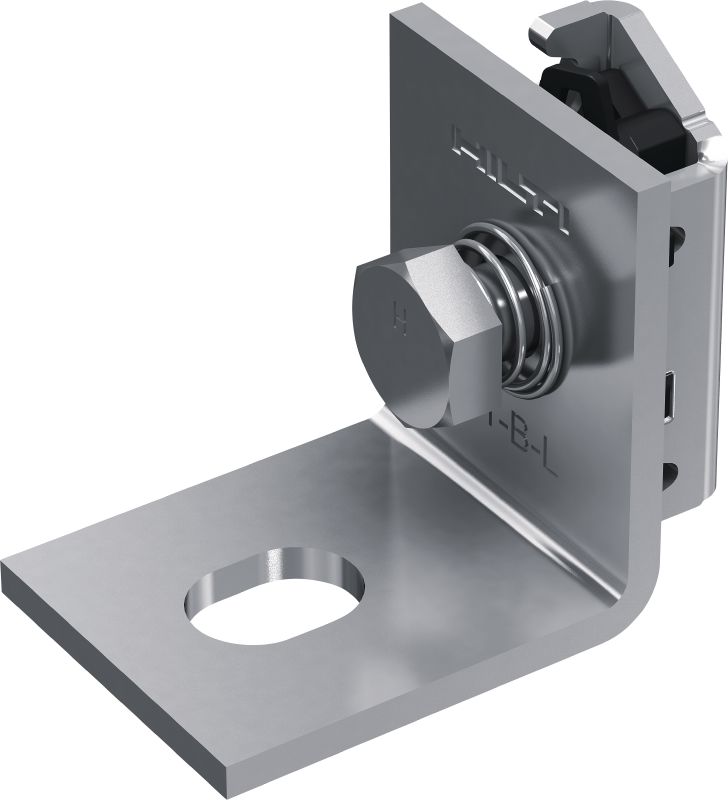

Base connector with pre-assembled Fast-Lock nut and bolt for anchoring light-duty strut channel structures to concrete or steel

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 18 pc
 Product options
Quantity
Packs
Total Pieces
18
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£90.00
£5.00 / 1 Piece

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanised
Thread connection - M
M10, 1/2 in
Tightening torque
30 Nm
Weight
0.18 kg

Documents

Approval document
Certificate
Brochure
Technical information
Declaration of performance
Operating Instruction
pdf ETA-23-0826 Static MT Base Connectors, English [ 2.4 MB ]
pdf UKCA - MT Channel System - Declaration of Performance BS EN1090, English [ 288 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

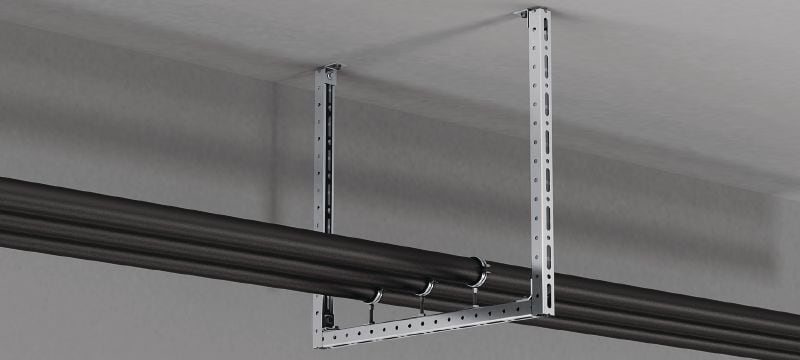

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with extra-light loads to a base material
  • Suitable for use in dry, indoor environments
