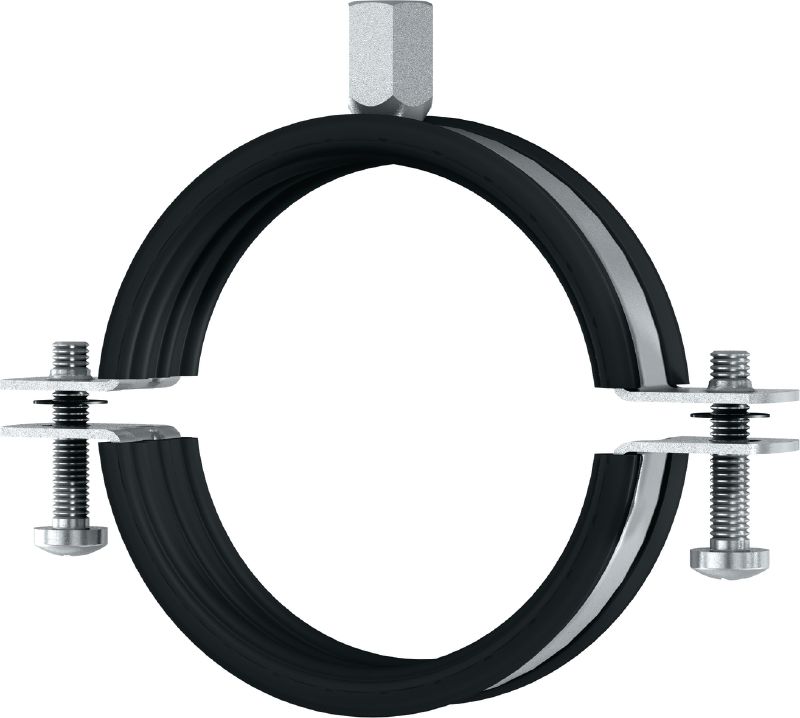

MP-PI HDG pipe clamp
hot-dip galvanised (HDG) pipe clamp with sound insulation for economical light/medium-duty applications
- Noise reduction: 16 dB (A)
- Temperature resistance: -40 - 110 °C
- Material composition: SPCC-SD FB - Q/BQB402, DC01 – EN 10130
standard
Choose options
Clamping range - D
- 11 - 15 mm
- 16 - 20 mm
- 20 - 24 mm
- 25 - 28 mm
- 32 - 36 mm
- 38 - 46 mm
- 48 - 53 mm
- 54 - 58 mm
- 59 - 66 mm
- 75 - 80 mm
- 87 - 92 mm
- 107 - 115 mm
- 162 - 170 mm
Thread connection - M
- M8, M10
Pack size
- 50 pc
- 100 pc
- 150 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £278.00
Technical Data
Noise reduction
16 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
SPCC-SD FB - Q/BQB402, DC01 – EN 10130
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM
Hardness insulation material
75° ±5° Shore A
Product class
Standard
Documents
Features & Applications
Features
- Two-screw pipe ring for easier installation of pipes
- Short connection head allows installation close to a wall, floor or ceiling
- Clamping ranges suitable for all standard plastic and steel pipes
- Engineered for longevity and reliability – recognised by third-party approvals
- Securely fixed rubber inlay – virtually impossible to drop or lose
Applications

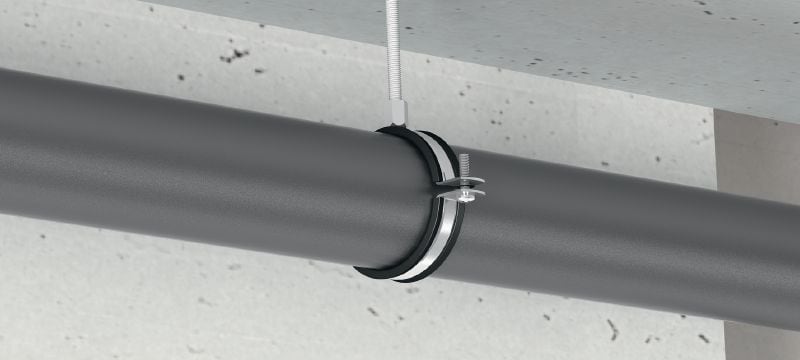

- Light to medium-duty pipe installations
- Fastening pipes in residential and industrial construction
- Fastening fresh water, waste water and heating pipes in residential and industrial construction
- Recommended for use in outdoor and indoor environments with moderately corrosive conditions
For approval or certificate information, please see individual items.
