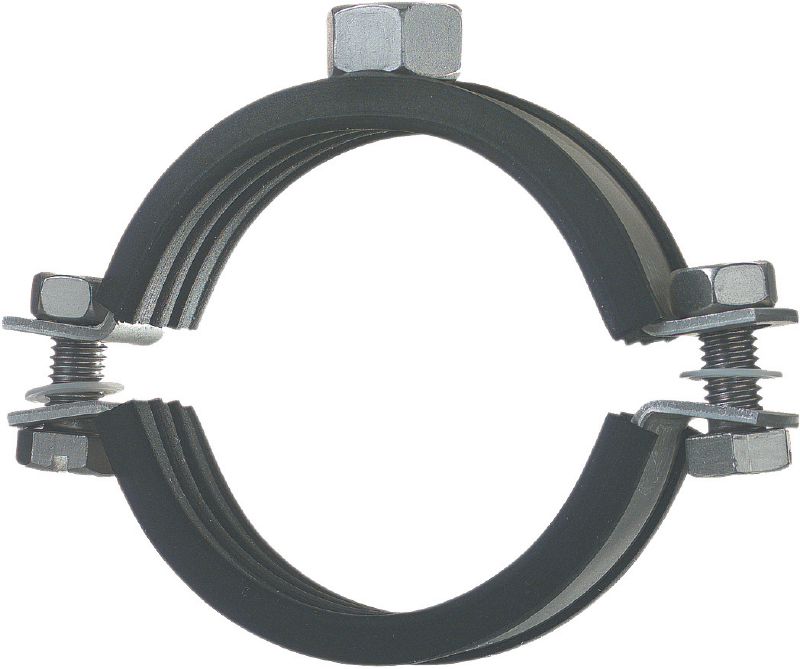

MP-SRN Pipe clamp light-duty (sound insulated)

Premium stainless steel pipe clamp with sound inlay for light-duty applications

  • Approvals: Fire class B2
  • Noise reduction: 15 dB (A)
  • Temperature resistance: -50 - 120 °C
premium

Choose options

Clamping range - D
  • 19 - 23 mm
  • 25 - 29 mm
  • 33 - 37 mm
  • 38 - 44 mm
  • 48 - 52 mm
  • 54 - 58 mm
  • 59 - 64 mm
Thread connection - M
  • M8
  • M10
Pack size
  • 10 pc
  • 25 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £913.00

Technical Data

60290_S18_S19.eps
60290_S18.eps
EB 20M/8
Approvals
Fire class B2
Noise reduction
15 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M8
Product class
Premium

Documents

Features & Applications

Features

  • Higher resistance to corrosion (A4 stainless steel)
  • Short connection head allows installation close to a wall, floor or ceiling
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • Closure screw secured to help prevent loss
  • Non-slip (bonded), pre-fitted rubber inlay

Applications

  • Light-duty pipe installations up to 2" (or 64mm)
  • Heating, plumbing and industry applications in corrosive environments
  • Mounting pipes in food industry (except production) and in water treatment
  • Water treatment
  • For fastening pipes up to 2" in corrosive environments

For approval or certificate information, please see individual items.
