CFS-VB/NVB cavity barrier brackets

Configurator
Technical Data
Documents
Features & Applications
Related Products
L133055 (3480748)
L133056 (3480753)
L133057 (3480759)
L151156_cropped (3553457)
L151157_cropped (3553459)
CFS-VB_NVB_intersection_g_105-2_cropped (3553480)
CFS-VB_NVB_window_0624_g_111-1_cropped (3553485)
L151155_cropped (3553158)

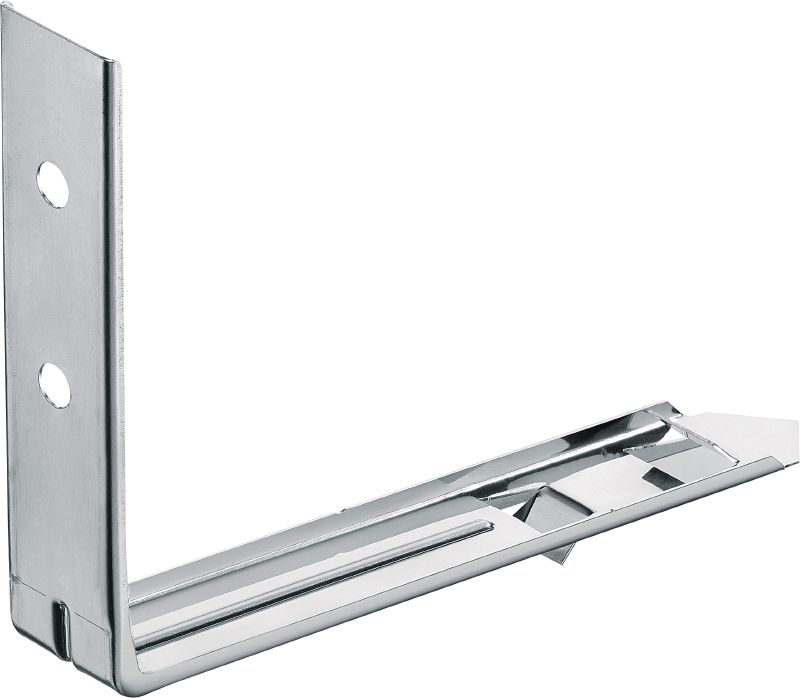

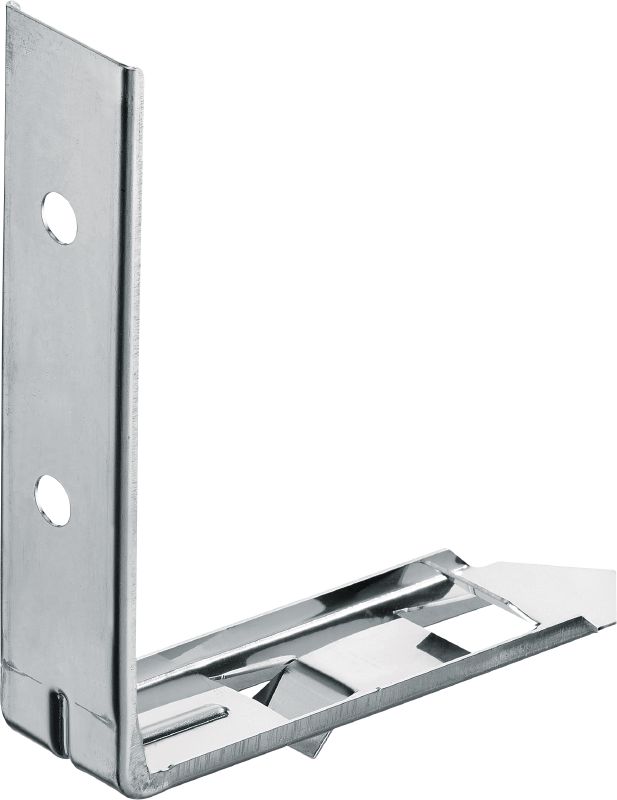

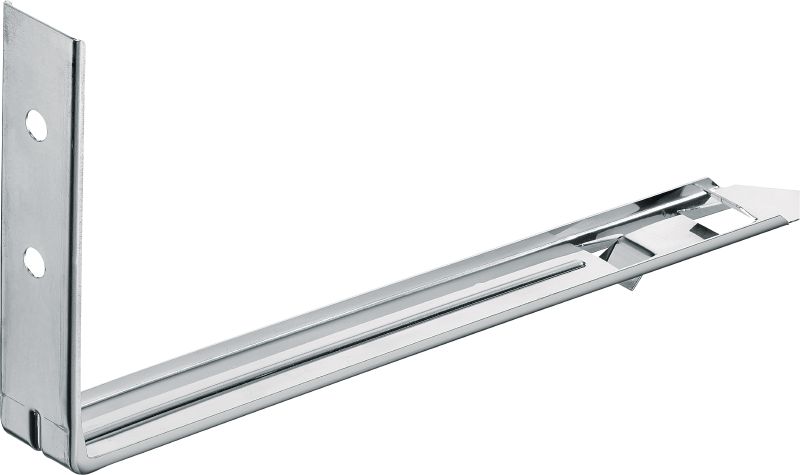

Pre-bent cavity barrier brackets for rainscreen cladding and non-ventilated façade applications, with push-to-fit system for faster installations

  • Height: 130 mm
  • Width: 30 mm
  • Application: Cladding, Ventilated façade

Choose options

Material
  • Hot-Dip Galvanised Steel
  • Stainless Steel
Device size
  • L
  • M
  • S
Pack size
  • 60 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £105.00

Technical Data

Height
130 mm
Width
30 mm
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

pdf Application Guideline - CFS-VB / NVB_2024_en, English [ 2.1 MB ]

Features & Applications

Features

  • Faster installations – new push-to-fit bracket system eliminates bending, cutting, and trimming, so you can install much faster than standard brackets
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Multiple finishes – available in stainless steel or hot-dip galvanised steel depending on your application
  • Direct fastening tested – combine with our range of direct fastening solutions for even faster installations

Applications

  • Installing cavity barriers for rainscreen cladding and non-ventilated façade applications
  • Available in three different sizes (S, M, and L) depending on your barrier size (see instructions for use for more details)

For approval or certificate information, please see individual items.
