CFS-VB E60 cavity barrier 25mm air gap

Configurator
Technical Data
Documents
Features & Applications
Related Products
L133043 (3480677)
L133044 (3480683)
L133045 (3480687)
L151157_cropped (3553459)

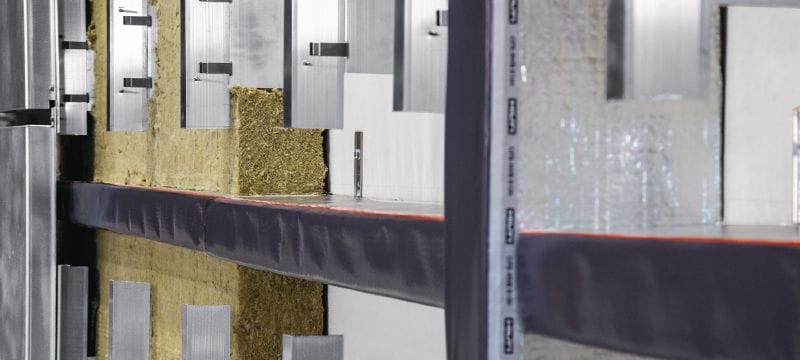

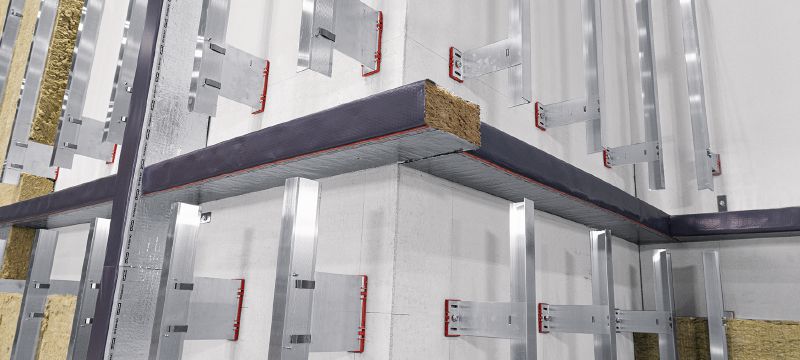

CFS-VB_NVB_intersection_g_105-2_cropped (3553480)

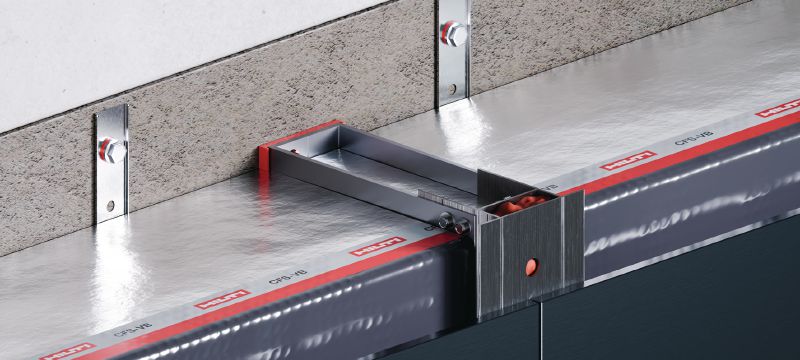

CFS-VB_facade_rail_0624_g_112-2_cropped (3553473)

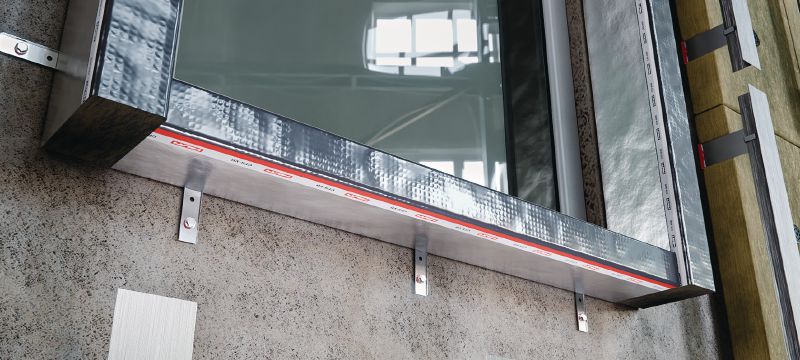

CFS-VB_NVB_window_0624_g_111-1_cropped (3553485)
L151153_cropped (3553149)
L151155_cropped (3553158)
CFS-VB_S2S_system_0624_g_119-9_cropped (3553493)

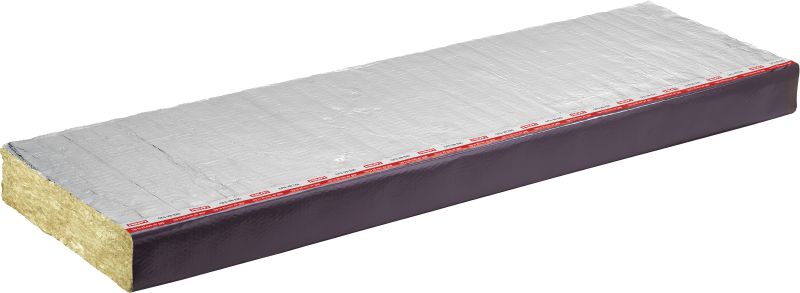

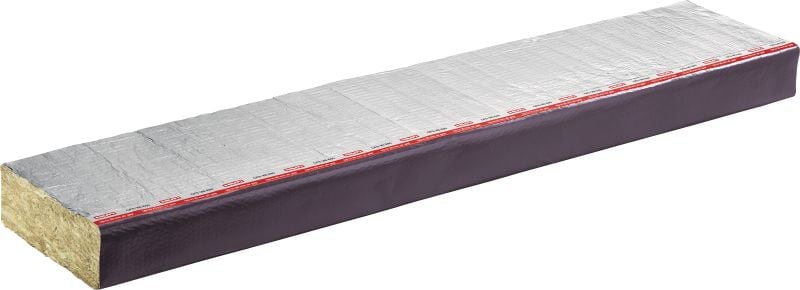

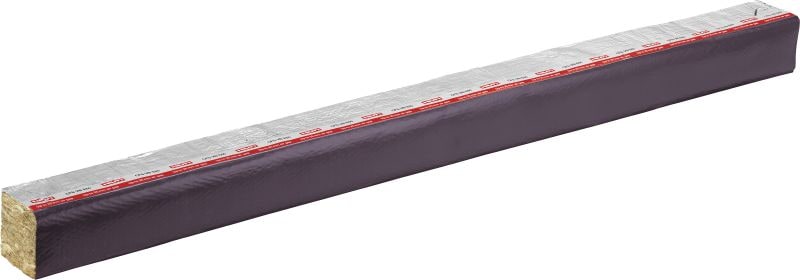

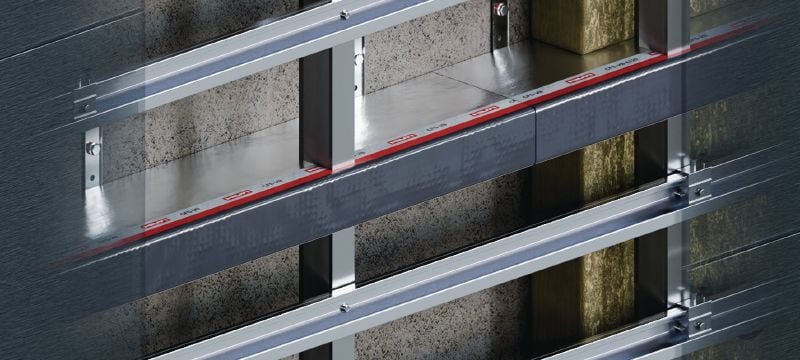

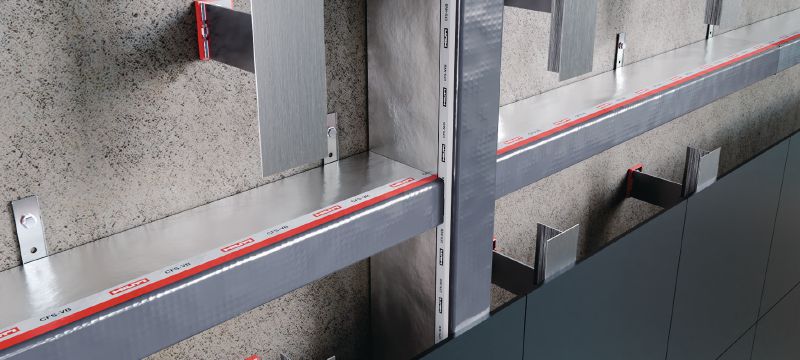

Pre-formed fire cavity barrier for rainscreen cladding with 60 minutes of fire integrity and air gaps up to 25 mm

  • Approvals: ASFP TGD-19, EN 13501-1
  • Length: 1200 mm
  • Height: 80 mm

Choose options

Cavity depth
  • 100 mm
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
Pack size
  • 5 pc
  • 10 pc
  • 15 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £242.05

Technical Data

Approvals
ASFP TGD-19, EN 13501-1
Length
1200 mm
Height
80 mm
Density
80 kg/m³
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Mold and mildew performance
Class 0 (ASTM G21, ISO 846 Method A)
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Approval document
Certificate
Technical information
Documentation
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Listing TGD-19_CFS-VB E60 25_2024_en, English [ 273 KB ]

Features & Applications

Features

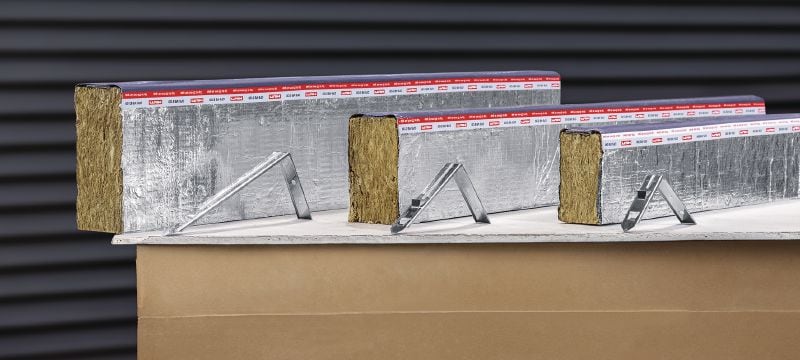

  • Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can instal up to 40% faster than standard brackets
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Extensive test evidence – tested and approved for a wide variety of Speciality applications
  • Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for rainscreen cladding
  • Direct fastening tested – combine with our range of direct fastening solutions for even faster installations

Applications

  • Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding while leaving an air gap of up to 25mm
  • Verified fire resistance for 60 minutes integrity and up to 30 minutes insulation according to ASFP TGD19

For approval or certificate information, please see individual items.
