CFS-BL P Firestop Block
Preformed firestop blocks for penetrations with cables, combustible and non-combustible pipes
- Dimensions (LxWxH): 200 x 130 x 50 mm
- Approvals: DIN
- Base materials: Concrete, Masonry, Gypsum board, Wood, Multi
ultimate
Technical Data
Dimensions (LxWxH)
200 x 130 x 50 mm
Approvals
DIN
Base materials
Concrete, Masonry, Gypsum board, Wood, Multi
LEED VOC
4.4 g/l
Application temperature range
5 - 40 °C
Temperature resistance range
-15 - 60 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate
Documents
Features & Applications
Features
- Easy to install – no power tools required
- Very easy maintenance and retrofitting of cables
- Economical installation – block is pre-cured and ready-to-use
- Fibre-, halogen- and solvent-free
- Installation can be sped up by using with CFS-F FX and CP 620 firestop foam
Applications

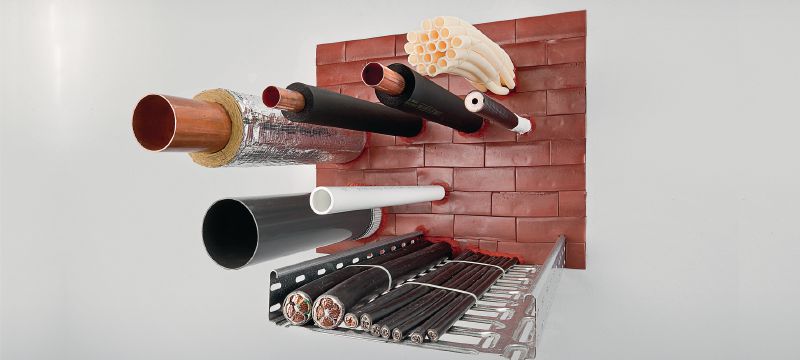

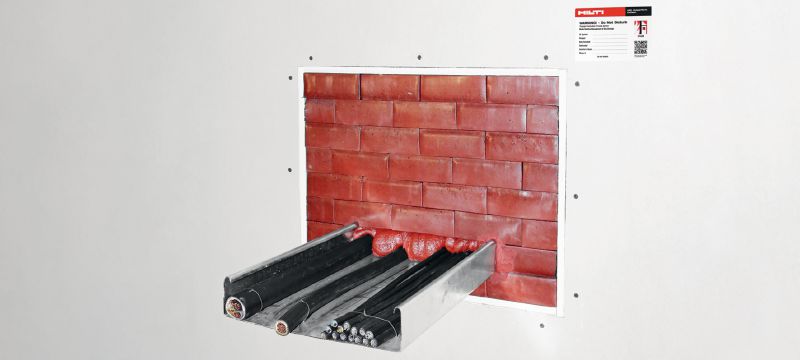

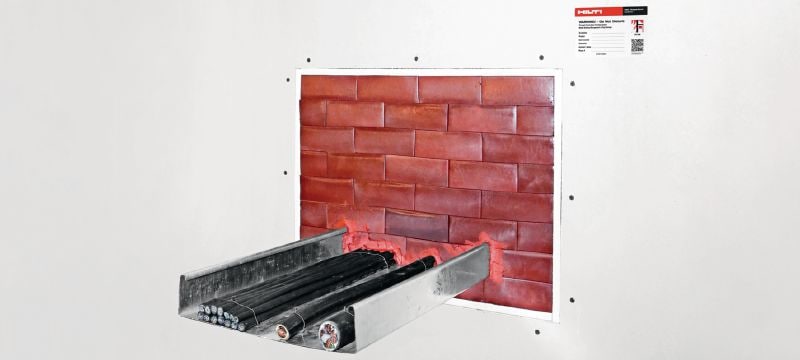

- Temporary or permanent sealing around cables, cable bundles and cable trays in wall and floor openings
- Cables, cable bundles and cable trays, conduits and conduit bundles, co-axial cables
- Non-combustible pipes with and without insulation
- Metal composite pipes
- Combustible pipes up to 110 mm diameter
For approval or certificate information, please see individual items.
