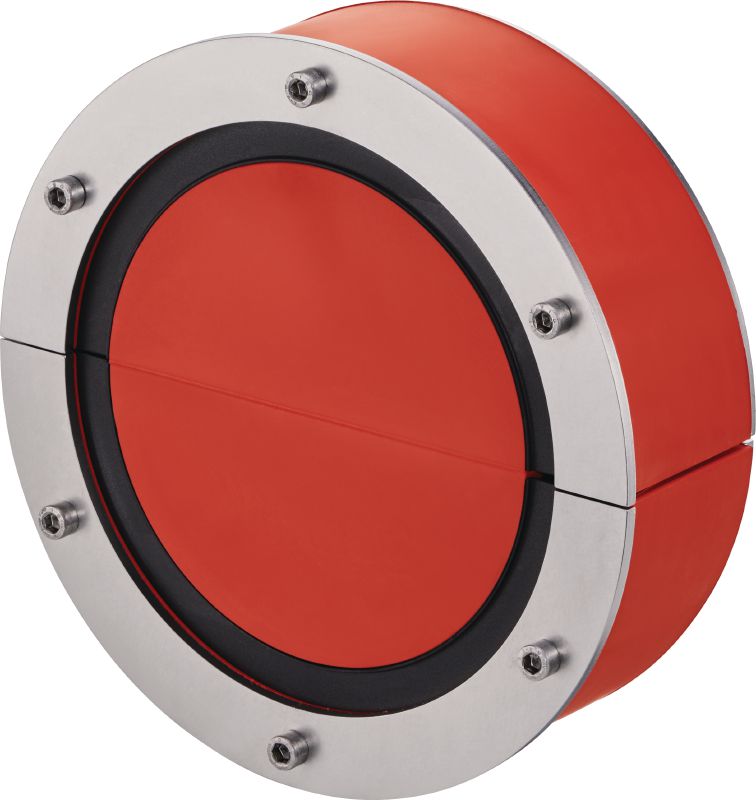

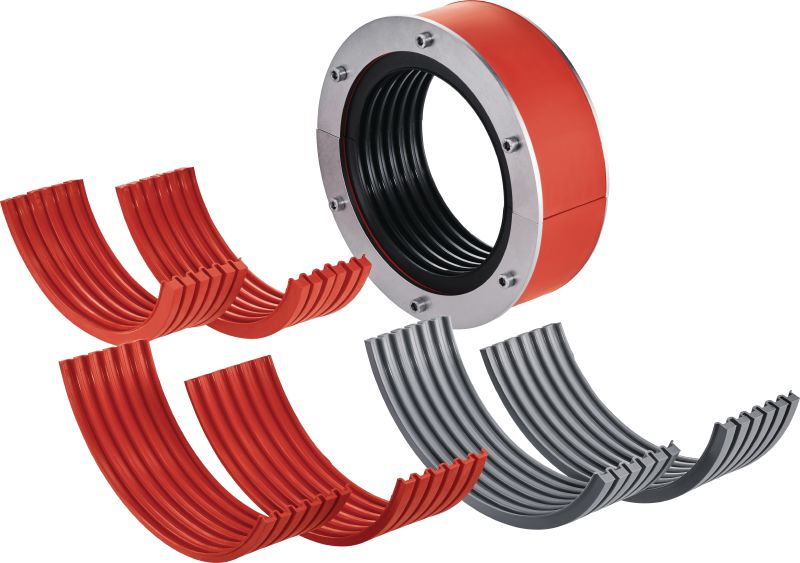

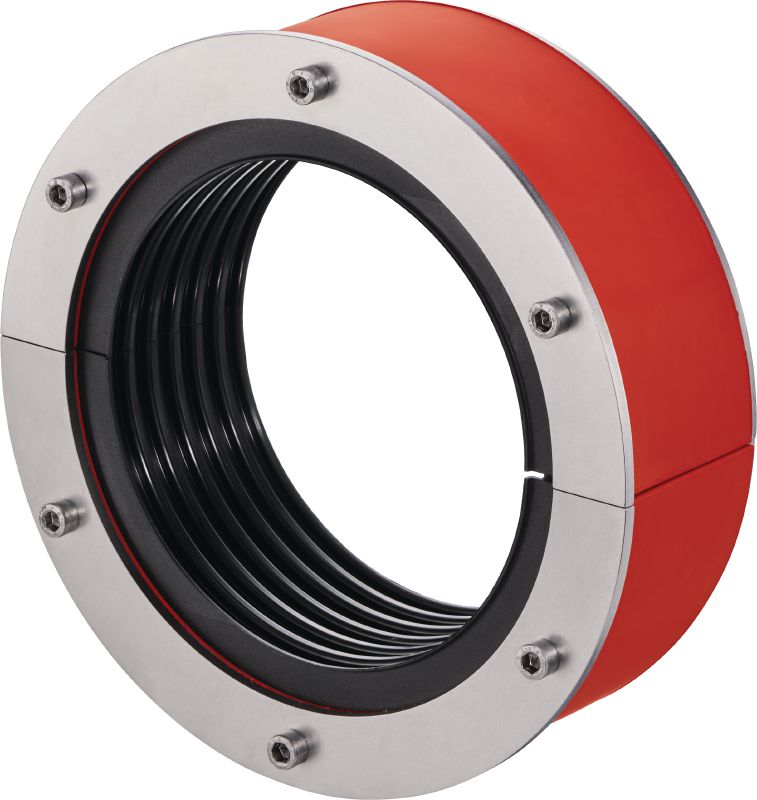

CFS-T RRS Plug seals

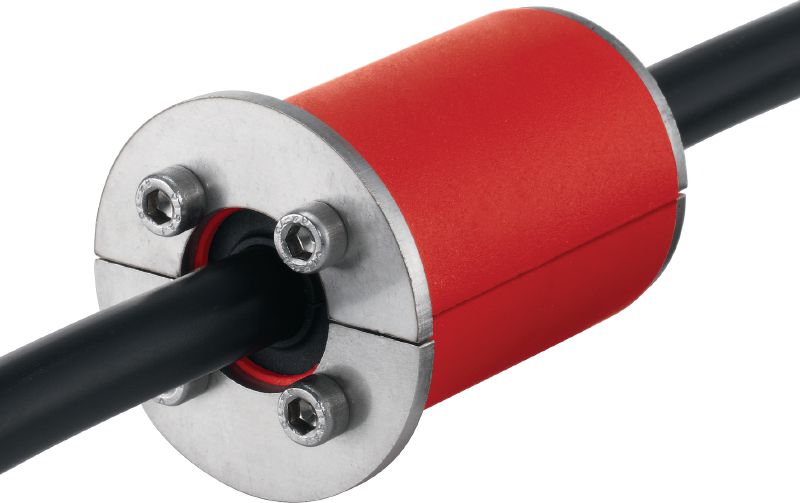

Water- and fire-resistant plug seal for sealing single cables/pipes in round penetrations, with up to 120 minutes of fire integrity
- Free from: Halogen (halogen content <= 0.1 weight %)
- Application temperature range: -20 - 50 °C
- Reaction to fire class (EN 13501-1): E
Customers also searched for Multi Cable Transit.
Choose options
Cable diameter - range
- 13 - 33 mm
- 23 - 51 mm
Base materials
- Concrete, Steel
Diameter
- 50 mm
- 70 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £72.40
Technical Data
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
-20 - 50 °C
Reaction to fire class (EN 13501-1)
E
Documents
Features & Applications
Features
- Water resistant and IP 68 rated – for demanding applications
- Safer installations and inspections – designed for easier installations, with a color-coding system for reduced errors and quicker inspections
- Durable and longer-lasting – engineered for resistance to heat and chemical exposure, for higher performance and increased installation lifetimes
- Multiple finishes – available in galvanised steel and stainless steel
Applications
- Sealing round penetrations for applications such as energy gearbox and distribution, oil and gas, infrastructure projects etc.
- Fire resistant through-penetrations in accordance with ul 1479 (F:2h) and verified fire integrity and insulation for up to 120 minutes according to EN 1366-3
For approval or certificate information, please see individual items.
