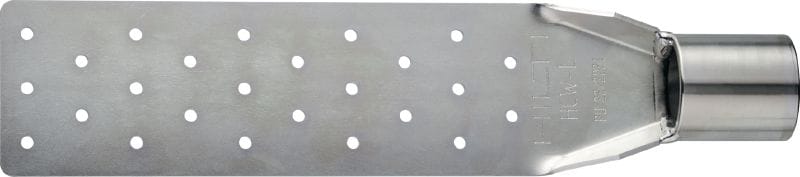

HCW-L wood connector
Wood coupler HCW L 40x295 M12 #2316495
HCW-L tensile load wood connector for assembling prefabricated timber structures – part of our faster more efficient wood connector system
- Material, corrosion: Carbon steel
- Head configuration: Inner thread
- Drill bit diameter: 40 mm
Choose options
Anchor size
- 40 mm
Pack size
- 5 pc
Quantity
Packs
Total Piece
5
Discounted net
£357.60
£71.52 / 1 Piece
Technical Data
Material, corrosion
Carbon steel
Head configuration
Inner thread
Drill bit diameter
40 mm
PROFIS software
No
Material composition
Screw: steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Improve design efficiency – the HCW wood connector system helps maximise versatility while minimising calculation workload, with HCW-L wood connectors for tensile loads
- Designed for factory panel production – wood members can be predrilled for HCW connectors with minimal manual effort using standard industrial joinery/CNC machines

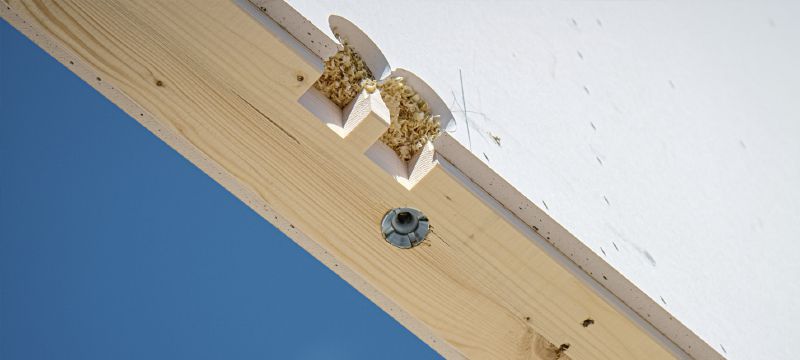

- Quicker progress on the jobsite with less personnel – pre-installed wood couplers help you to save labour, time or the risk of rework by making positioning, leveling and fastening easier
- Improve safety and quality – ETA-21/0357 available when fastened with Hilti ETA approved stud anchors and HAS-U anchor rods for timber-to-concrete applications and HSW hanger bolts for timber-to-timber applications
- Simplified planning – cover all requirements with just 4 wood connector types: HCW and HCW-S for concealed connections, HCW-UP for timber-to-timber upper floor positioning or HCW-L with nail plate for higher tension loads
Applications

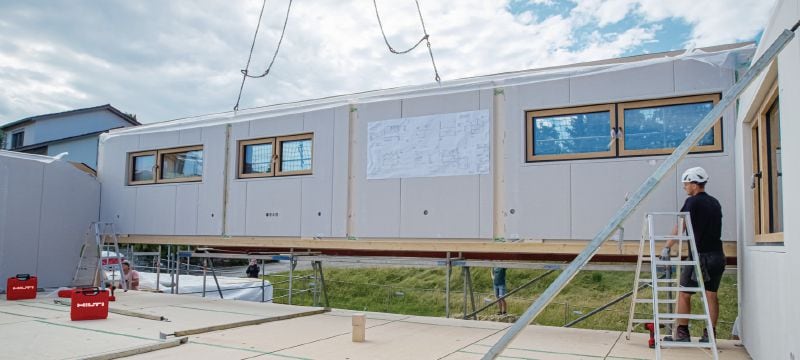

- Assembling and fastening prefabricated timber structures on-site, especially at residential scale
- Wood connector for tensile loads

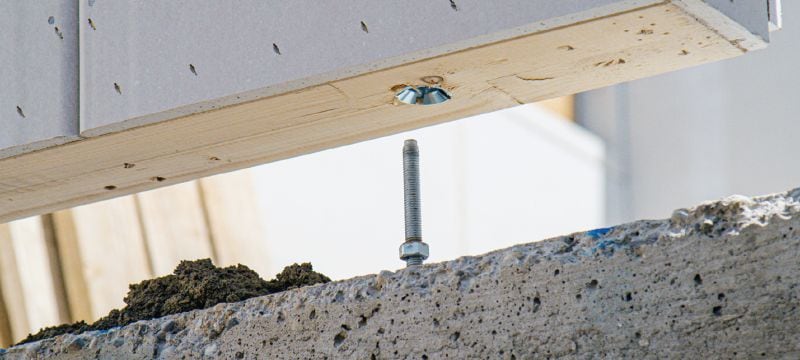

- Wood-to-concrete connections
- Wood-to-wood connections
