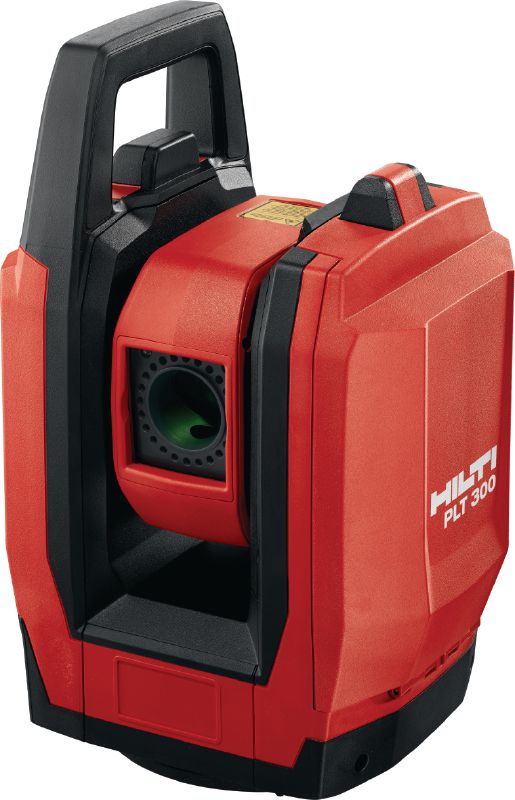

PLT 300 Digital layout tool

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
PLT 300 (76171)
PLT 300 (76168)
PLT 300 Layout Tool (79248)
PLT 300 Layout Tool (79191)
PLT 300 Layout Tool (79187)
PLT 300 Layout Tool (79188)
PLT 300 Layout Tool (79193)

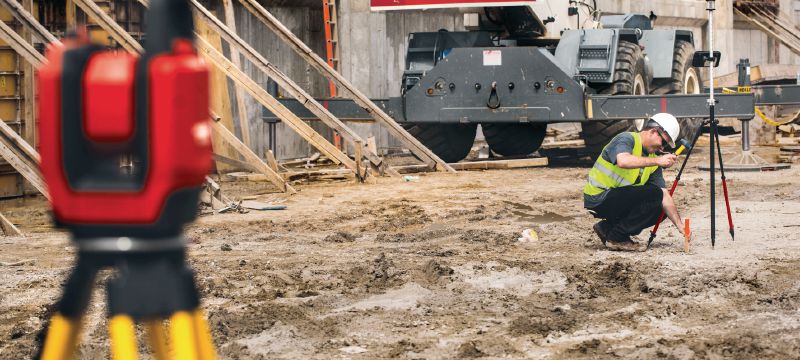

Automated construction layout tool to speed-up jobsite stake-out using digital methods and BIM

  • Distance measurement accuracy: ±3 mm + 10 ppm
  • Operating distance range of remote control (diameter): 2 - 100 m
  • IP protection class: IP 55 (EN 60529)

Customers also searched for Hilti total station.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £18,100.00

Technical Data

Distance measurement accuracy
±3 mm + 10 ppm
Operating distance range of remote control (diameter)
2 - 100 m
IP protection class
IP 55 (EN 60529)
Maximum operating time
5 h
Battery type
B 22/2.6 Li-ion
Charging time
0.25 h
Laser class
Class 2 (EN 60825)
Operating temperature range
-20 - 50 °C
Weight
5.31 kg

Documents

Material safety datasheet
Operating Instruction
Instruction for use
Battery Recycling Information
pdf Material safety datasheet LI-ION-BATTERIES <100Wh (EN) [ 199.4 KB ]
pdf Material safety datasheet LI-ION-BATTERIES >100Wh (EN) [ 230.5 KB ]
pdf Material safety datasheet REACH Note (EN) [ 146.7 KB ]
pdf Material safety datasheet LI-ION-BATTERIES <100Wh - BU M (EN) [ 187.2 KB ]

Features & Applications

Features

  • One-person construction layout and measuring – digital layout tools cut the labor needed for construction staking in half, while significantly increasing the number of points possible in one day

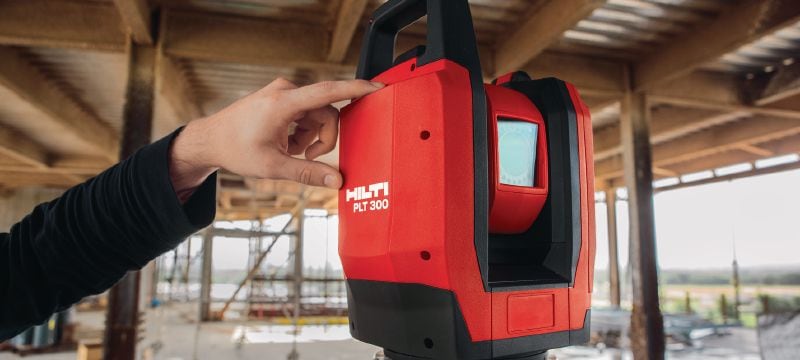

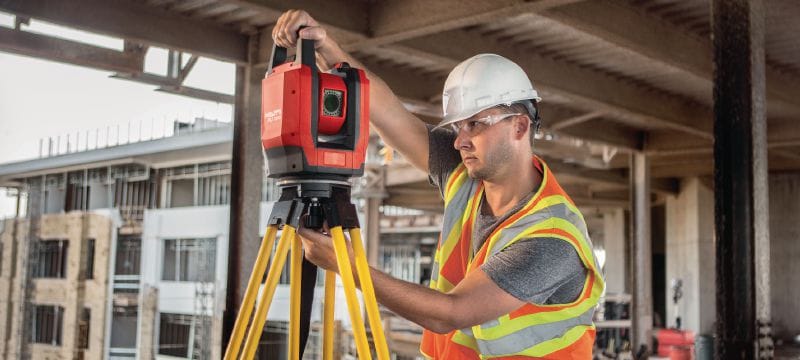

  • Get started faster – automatic stationing and tilt compensation for quick setup on the jobsite

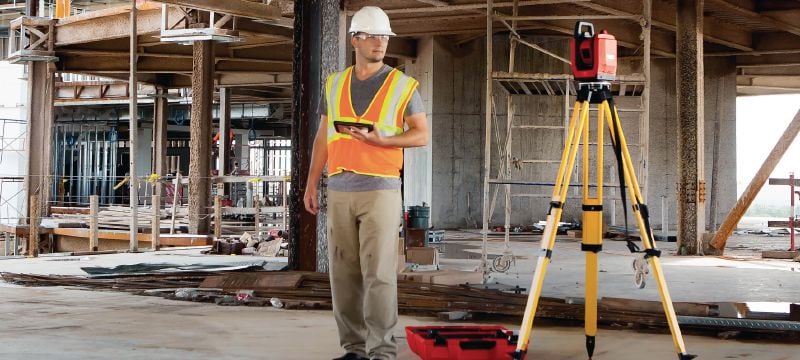

  • Digitized construction layout using green laser and tablet – simply tap the stake-out point you need on the controller, and the layout tool will localize it in reality using the motorized green laser pointer
  • BIM-ready digital layout tool – bring the accuracy and efficiency of BIM-to-Field to your jobsites by switching to digital construction layout tools

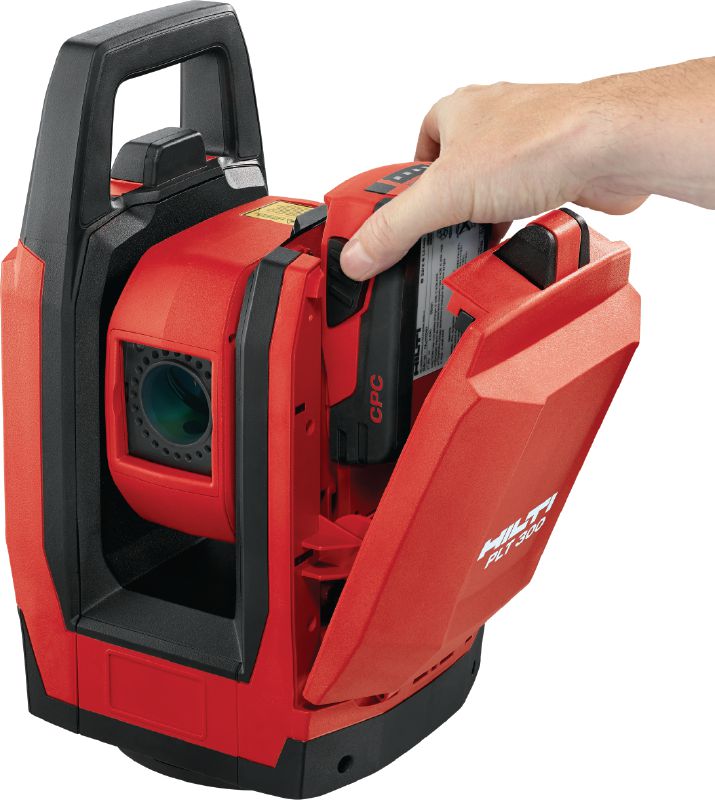

  • On the Hilti CPC battery platform – power this digital layout tool using the same batteries as all your Hilti 22V power tools (not compatible with Nuron batteries)

Applications

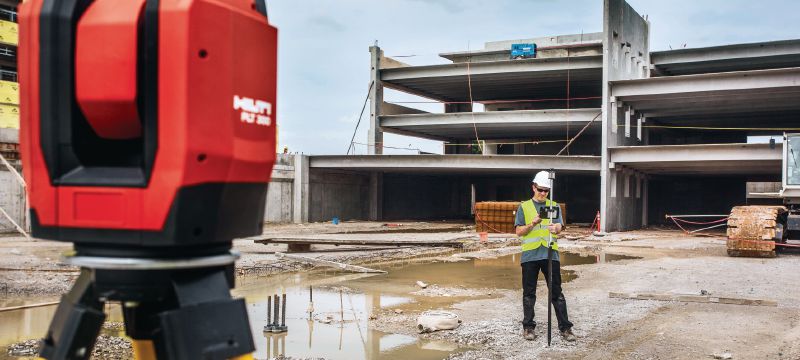

  • Staking out 2D and 3D positions on the jobsite using digital CAD/BIM input
  • Laying out formwork, positions for excavation and MEP fastening points on floors and ceilings
  • Laying out single and dual slopes
  • Laying out and transferring building control lines
  • As-built measurement of existing features, including real-time area and volume calculations

For approval or certificate information, please see individual items.
