X-BT-MR Stainless steel threaded studs

Configurator
Technical Data
Documents
Features & Applications
Related Products
L112175 (191948)
L113649 cropped (195872)
L113782_cropped (195877)
L113682 cropped (195875)
L113841 cropped (195880)

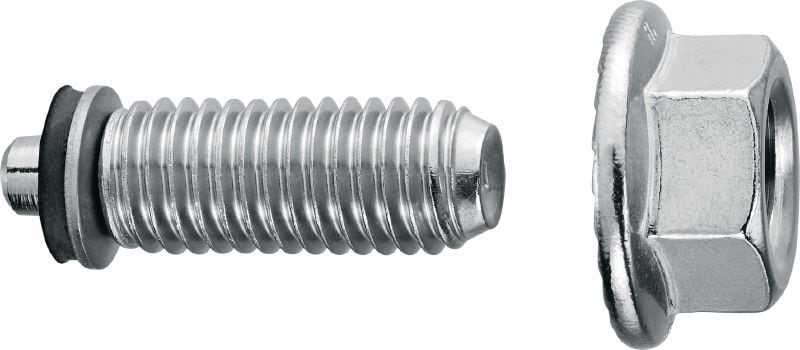

Threaded stud for fastenings on coated steel

  • Base materials: Steel, Stainless steel, Cast iron
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Equivalent to A4 (316) stainless steel
ultimate

Choose options

Thread size
  • M6
  • M8
  • M10
  • W10
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £1,955.00

Technical Data

Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Equivalent to A4 (316) stainless steel
Environmental conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Point type
Blunt tip
Approvals
ABS, BV, DNV, ICC ES, LR, UL
Product class
Ultimate

Documents

Approval document
Technical information
Reference document
Documentation
Certificate
Declaration of performance
Operating Instruction
pdf ETA-20/1042 for X-BT-MR and X-BT-GR, German, English [ 8.8 MB ]
pdf LR Type Approval LR2435310TA-02 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English [ 868.3 KB ]
pdf DNV Approval TAS00001SV-5 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners, English [ 435.1 KB ]
pdf ABS Type Approval 23-00T2426560-1-PDA for X-BT-GR. X-BT-MR, X-BT-ER fastening system in off-shore and shipbuilding application, English [ 114.9 KB ]
pdf BV approval 54054-B1 for X-BT-GR, X-BT-MR and X-BT-ER fastening system, English [ 1.1 MB ]

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • Versatile – suitable for use on most standard and high-strength construction steel
  • Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity

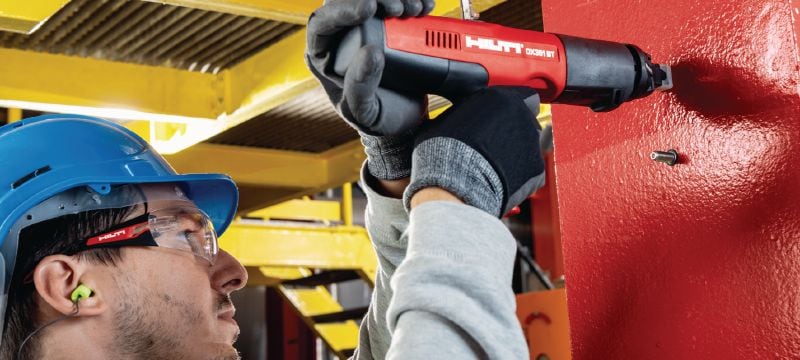

  • Portable, cordless system – eliminates the need for long electric supply cords
  • Fast – ideal for fastening directly to coated or treated steel

Applications

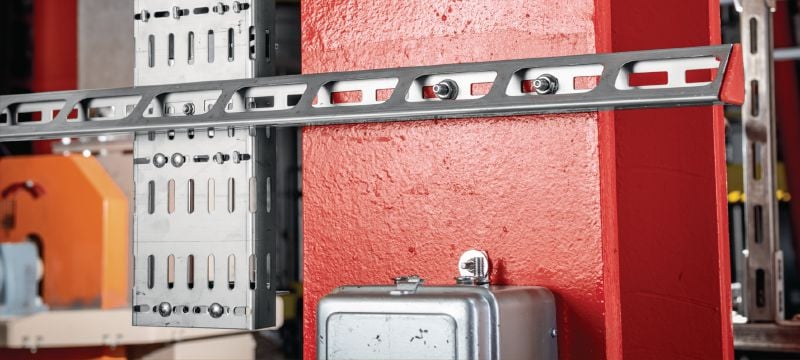

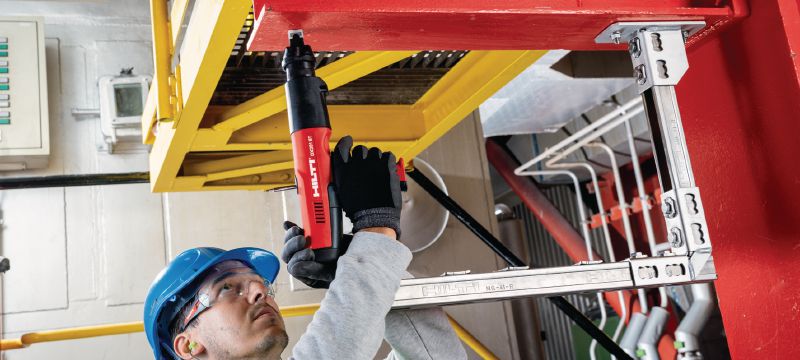

  • Fastening cable trays, cable ladders, channels, struts, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
  • Fastenings to fire-coated (PFP) beams

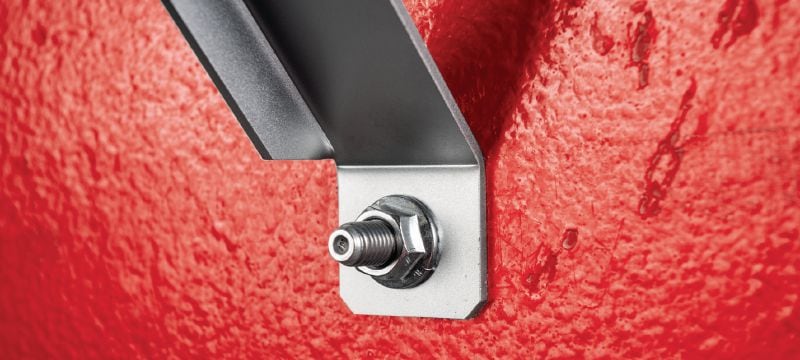

  • Fastening pipe supports to steel, cable tray supports to steel
  • Fastening handrails to steel
  • Fastening façade brackets to steel

For approval or certificate information, please see individual items.
