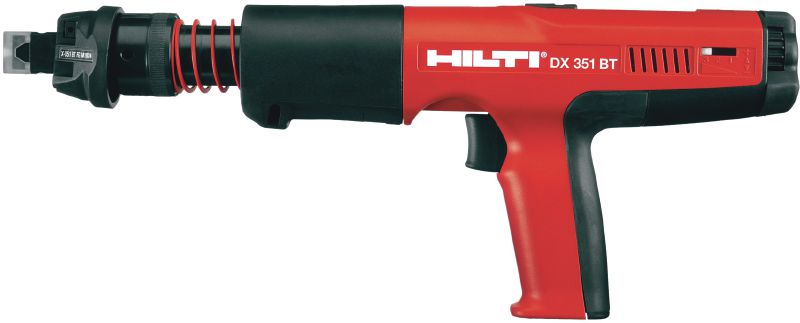

DX 351-BT Powder-actuated tool

Configurator
Technical Data
Documents
Features & Applications
Related Products
5718.tif
7630.tif
7631.tif

Fully automatic, high-productivity and compact powder actuated tool for fastening X-BT threaded stud

  • Dimensions (LxWxH): 403 x 56 x 164 mm
  • Weight: 2.28 kg
  • Fastener intake: Threaded stud

Customers also searched for x-bt , grating, Nail gun, nailer or direct fastening .

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £1,850.00

Technical Data

Dimensions (LxWxH)
403 x 56 x 164 mm
Weight
2.28 kg
Fastener intake
Threaded stud
Fastener length range
21 - 31 mm
Cartridge type
6.8/11 .27 calibre short
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
85 J
Power regulation
Yes
Piston type
X-351 BT P 1024

Documents

Technical information
Material safety datasheet
Operating Instruction
Instruction for use
Battery Recycling Information
pdf DX 351 - accessories and consumables compatibility, English [ 344.3 KB ]

Features & Applications

Features

  • Quicker, easier and more reliable fastening solution which eliminates steel base material finishing work
  • Ideal for use on high-strength coated steel 5/16" or thicker
  • Total mobility and complete independence from an electrical power supply
  • Virtually no reworking required – steel corrosion protection remains intact
  • Cordless solution

Applications

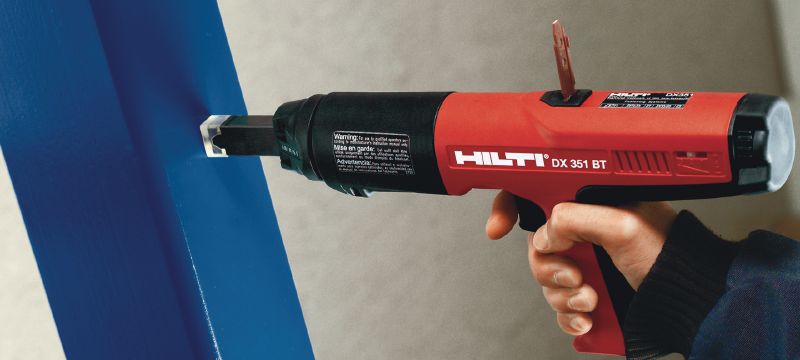

  • Fastening threaded X-BT studs to min. 8 mm thick coated steel substrates without through penetration of the steel

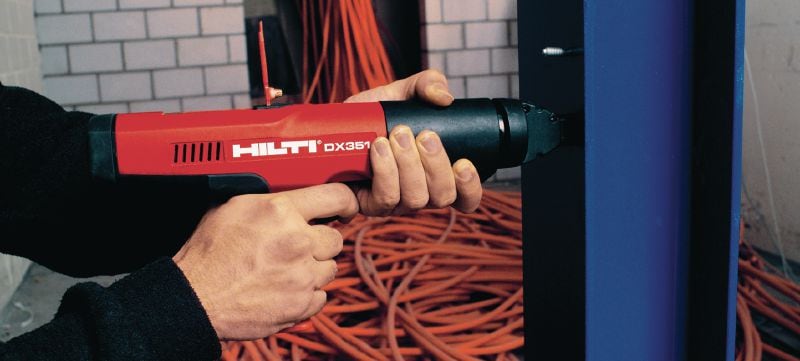

  • Fastening light-duty electrical, such as cables, conduit connectors, cable trays
  • Installing junction boxes, lighting, switch boards
  • Fastening light-duty mechanical, such as pipe hangers, struts
  • Outfitting steel structures with cabinets, lighting, signage, electrical junction boxes and conduits

For approval or certificate information, please see individual items.
