X-TH Pipe clamp mount

Threaded stud X-M6-TH #2402522

L600709 (3175466)
L600710 (3175468)
L149540_cropped (3353305)
L149549_cropped (3353309)

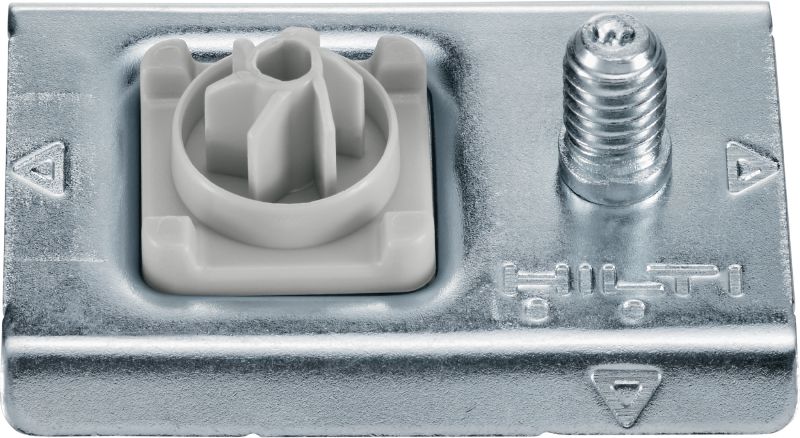

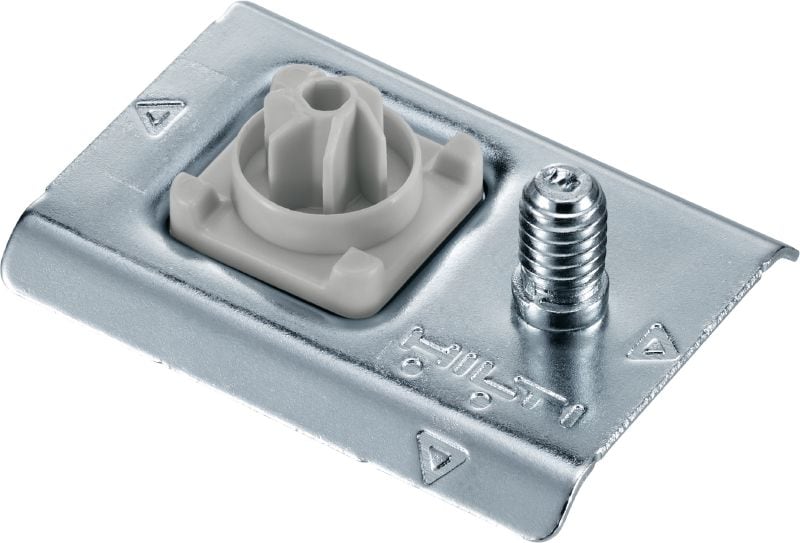

Metal pipe clamp mount with pre-installed threaded stud for light-duty electrical/mechanical fastenings on ceilings and use with collated nails

  • Base materials: Concrete, Steel
  • Minimum thickness of base material (steel): 4 mm
  • Environmental conditions: Dry indoor

Choose options

Thread size
  • M6
Thread length
  • 7 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£60.00
£0.60
/
1 Piece

Technical Data

Base materials
Concrete, Steel
Minimum thickness of base material (steel)
4 mm
Environmental conditions
Dry indoor
Material
Carbon steel
For use with (tools)
BX 3, BX 4-22

Documents

pdf X-TH Data Sheet, English, German, Spanish, French, Italian, Polish [ 504.9 KB ]

Features & Applications

Features

  • Quick handling - friction-fit in the nose of BX nailers for easier and faster installations
  • Time-saving solution – pre-mounted threaded stud, delivered ready to install using battery-actuated tools
  • Easier and reliable installations – designed for high stick rate and reduced concrete spalling
  • Combustion-free installation with BX tools – no gas cans or powder cartridges to store and dispose of

Applications

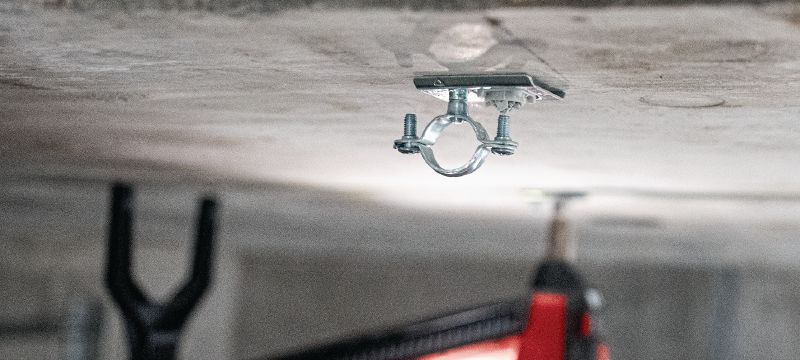

  • Light-duty fastenings on ceilings - fastening overhead pipe systems
  • Typical spacing between fastening elements ranges from 50-100 cm – load requirements must be taken into account
  • Typical spacing between fastening elements ranges from 20 -30 inches – load requirements must be taken into account
