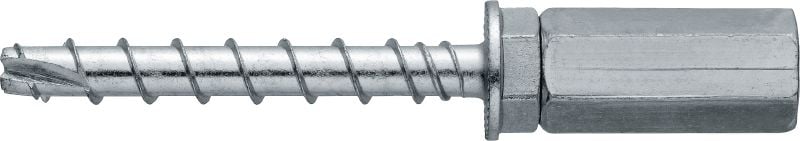

HUS3-I Flex 6 Screw anchor

HUS3-I Flex (75654)
HUS-I small, KH-EZ I
MM

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, internally threaded head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Internally Threaded
  • Approvals / test reports: ETA, Fire

Customers also searched for concrete screw.

Choose options

Anchor size
  • 6 mm / M12
  • 6 mm / M6
Anchor length
  • 35 mm
  • 55 mm
Pack size
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £95.50

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally Threaded
Approvals / test reports
ETA, Fire
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

pdf ETA-10/0005, HUS4/HUS3/HUS for fastening in concrete, static loading, ML, German, English, French, Polish [ 13.3 MB ]
pdf ETA 13/1038 for HUS3-H/C/HF/A/I/I-Flex/P/PS/PL screw anchor (ETAG 13/1038, Option 1), English, German, French, Polish [ 14 MB ]
pdf UKTA-0836-23/6689, English [ 1.1 MB ]
pdf UKTA-0836-23/6694, English [ 1.5 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Ideal for overhead installation – greatly simplifies the work
  • Coupler with various internal threads M6-M12 for direct attachment of threaded rods
  • More reliable and easier to set – HSE product profile available
  • Innovative cutting edge geometry guarantees superior setting characteristics

Applications

  • Fastening various piping and ventilation duct installations
  • Threaded rod hangers for single or multiple pipes
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
