HDA-TF Undercut anchor

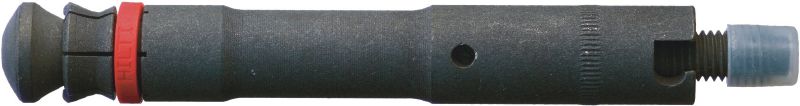

Undercut anchor HDA-TF M12x125/30 #412904

Configurator
Technical Data
Documents
Features & Applications
Related Products
7426.tif
L023465.tif
HDA-PF, HDA-TF
HDA
HDA
Mechanical treatment: Screening building More waste water treatment. More Hilti quality inside. adapted

Ultimate-performance through-set undercut anchor for dynamic loads (sherardised steel)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Head configuration: Externally threaded
  • Max. fixture thickness at standard embedment depth: 30 mm

Choose options

Anchor size
  • M12
Standard embedment depth
  • 125 mm
Max. fixture thickness at standard embedment depth
  • 30 mm
Pack size
  • 8 pc
 Product options
Quantity
Packs
Total Pieces
8
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£1,173.52
£146.69 / 1 Piece

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
Max. fixture thickness at standard embedment depth
30 mm
PROFIS software
No

Documents

Approval document
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf BZS D 09-601 for HDA self-cutting undercut anchor, English [ 1 MB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect helps to provide a secure hold in cracked concrete under dynamic loading
  • Manufactured under the NQA-1 nuclear quality program

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants
  • Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.
