HUS4-HR Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L026965_HUS-HR.tif
L144823_cropped (1918649)
L156302_cropped (4393580)

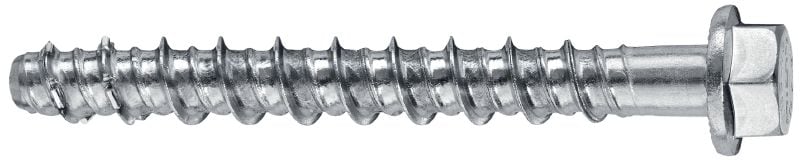

High-performing hexagonal head screw anchor for fastening to concrete (stainless steel)

  • Material, corrosion: Stainless Steel, 316
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 6 mm
  • 8 mm
  • 10 mm
  • 14 mm
Anchor length
  • 35 mm
  • 45 mm
  • 55 mm
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm
  • 80 mm
  • 85 mm
  • 95 mm
  • 105 mm
  • 115 mm
  • 120 mm
  • 130 mm
  • 135 mm
Pack size
  • 8 pc
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £106.25

Technical Data

Material, corrosion
Stainless Steel, 316
Head configuration
Hex head
Approvals / test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Concrete (uncracked), Masonry (solid)
Base material condition
Dry, Wet
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution
Material composition
Stainless steel, A4

Documents

Approval document
Certificate
Technical information
Brochure
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA 10/0005 for HUS3 screw anchor size 6 multiple applications, German, English, French [ 11.1 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German [ 3.3 MB ]
pdf UKTA-0836-23/6698, English [ 1.3 MB ]

Features & Applications

Features

  • Removable and high corrosion resistance – ideal for outdoor applications
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Hexagonal head – with an integrated washer
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

  • Fastening of baseplates – such as secondary steelwork, fences, handrails and racking systems
  • Suitable for use in uncracked and cracked concrete
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
  • Suitable for dry indoor and outdoor use, including high corrosion environments

For approval or certificate information, please see individual items.
