HSC-AR Shallow undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
5945.tif
Anchors
HSC-AR
HSC-AR
6108.tif
6265.tif

Ultimate-performance shallow undercut anchor (stainless steel, external thread)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • M8
  • M10
  • M12
Standard embedment depth
  • 40 mm
  • 60 mm
Max. fixture thickness at standard embedment depth
  • 15 mm
  • 20 mm
Pack size
  • 20 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £1,540.50

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Type of fastening
Pre-fastening

Documents

Approval document
Technical information
Brochure
Declaration of performance
Instruction for use
pdf ETA 02/0027 for HSC undercut anchor, French, English, German, Polish [ 3.5 MB ]
pdf BZS D 06-601 for HSC self-cutting undercut anchor, English [ 48.6 KB ]
pdf UKTA-0836-23/6688, English [ 725.8 KB ]

Features & Applications

Features

  • Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
  • Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
  • Requires a plain cylindrical drilled hole, no separate undercutting operation

Applications

  • Safety-relevant, medium-duty fastenings in cracked or uncracked concrete and corrosive environments, especially where shallow embedment and/or small edge distance or close spacing is required

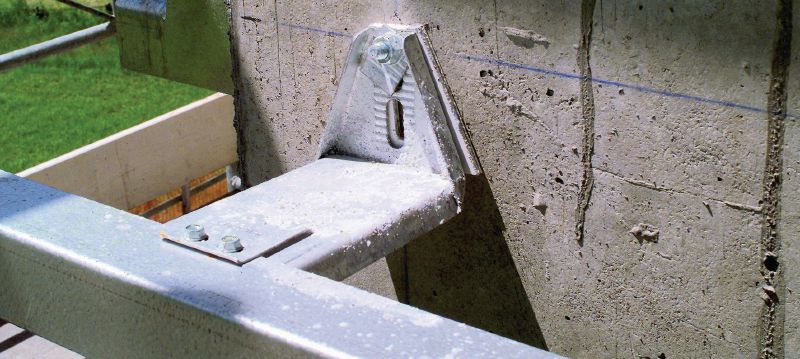

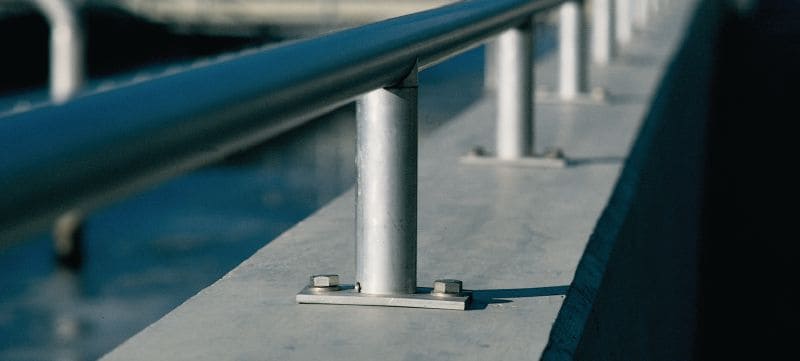

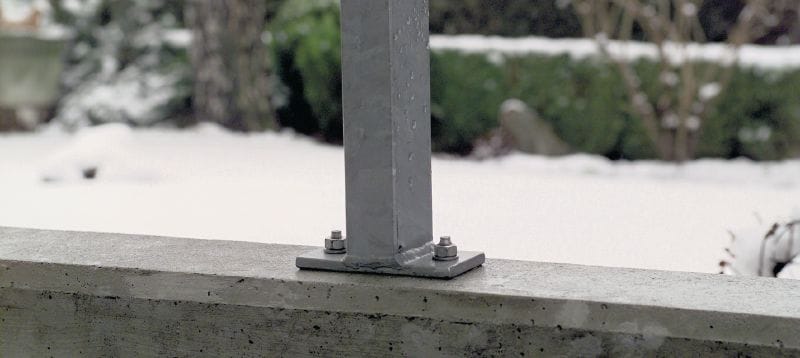

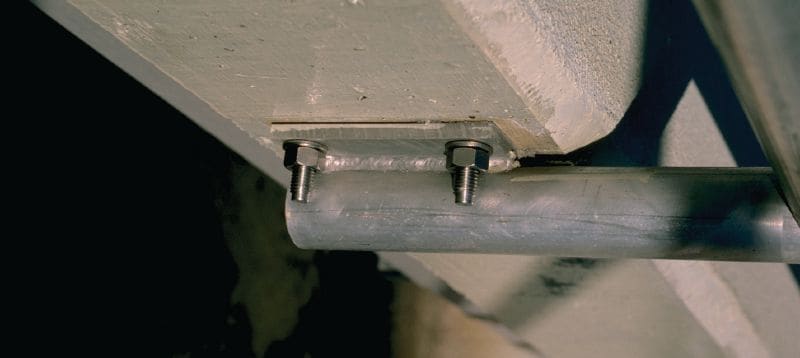

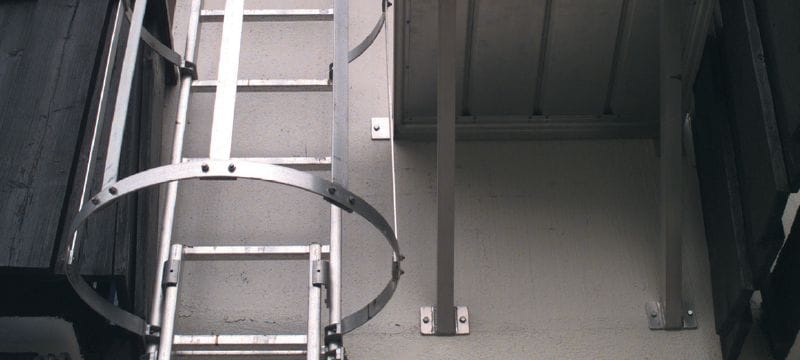

  • Examples: stair hand rails, balcony safety railings, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.

For approval or certificate information, please see individual items.
