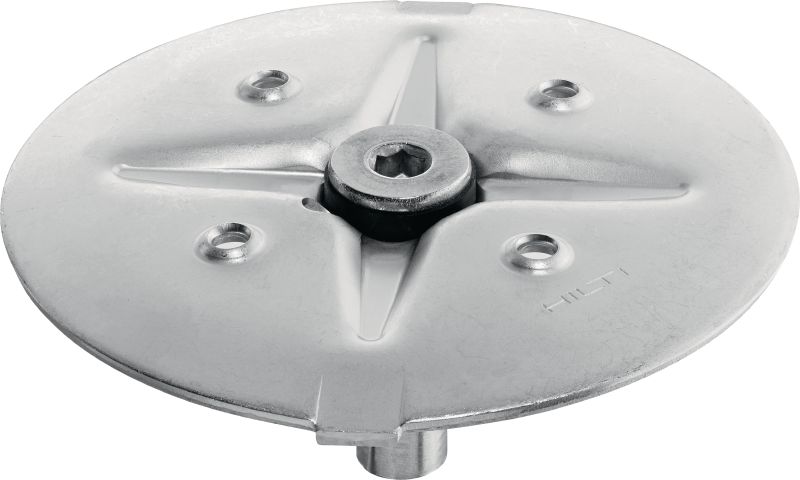

X-FCM-R L Grating fastener disc (large)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130775 (2556350)

Wide grating fastener disc for threaded studs in Highly corrosive environments

  • Application: Grating
  • For use with (tools): BX 3
  • Corrosion protection: Equivalent to A4 (316) stainless steel

Choose options

Grating height
  • 28 - 33 mm
  • 48 - 53 mm
Grating width range
  • 30 - 57 mm
Corrosion protection
  • Equivalent to A4 (316) stainless steel
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £2,145.50

Technical Data

Application
Grating
For use with (tools)
BX 3
Corrosion protection
Equivalent to A4 (316) stainless steel
Environmental conditions
Coastal areas, Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution
Minimum thickness of base material (steel)
6 mm

Documents

Technical information
Approval document
Declaration of performance
pdf X-FCM-R L Data Sheet, English, German, Spanish, French, Italian, Polish [ 3.9 MB ]

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Wide disc covers big grating mesh sizes

Applications

  • Fastening grating to steel in highly corrosive C5 environments, such as ships or offshore oil and gas installations
  • For wide mesh gratings exposed to standard loads such as walkways
  • Fastening wide mesh steel grating
  • Fastening wide mesh fiber-reinforced plastic (FRP) grating

For approval or certificate information, please see individual items.
