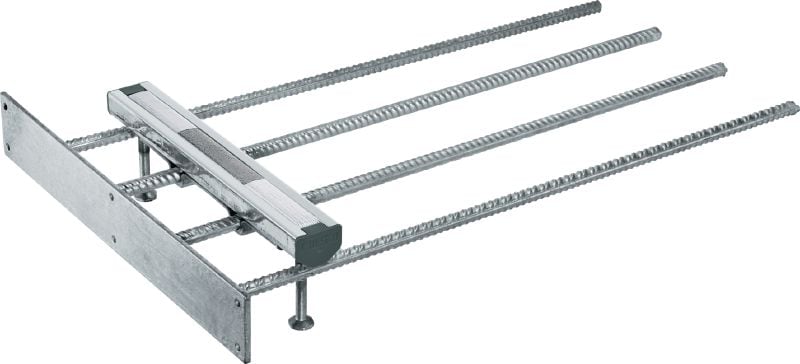

HAC-V-T EDGE C Top-of-slab reinforcing bar channel for corners
New product UltimateItem #r17744206
Serrated cast-in anchor channels in custom sizes and lengths for top-of-slab installations catering to 3D loads
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised
- Channel profile: HAC-V-T 50 EDGE C
- PROFIS software: Yes
Share
Features
- Increased design freedom – solution for designs, where standard HAC anchor channel reaches application limits
- Higher shear load resistance due to confinement of concrete edge
- Suitable for small edge distances and thin concrete slabs
- Available for different edge distances, already set for quicker installation
- Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
Applications

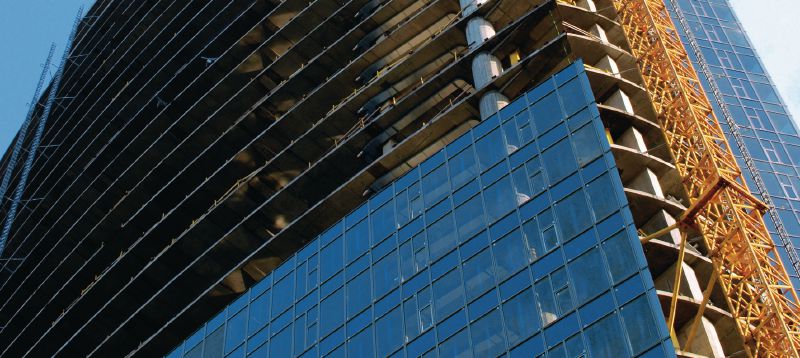

- Installing curtain wall brackets on anchor channels in top-of-slab position, especially in building corners
- Fastening to thin concrete slabs
- Seismic-relevant applications and 3D loads
For approval or certificate information, please see individual items.
