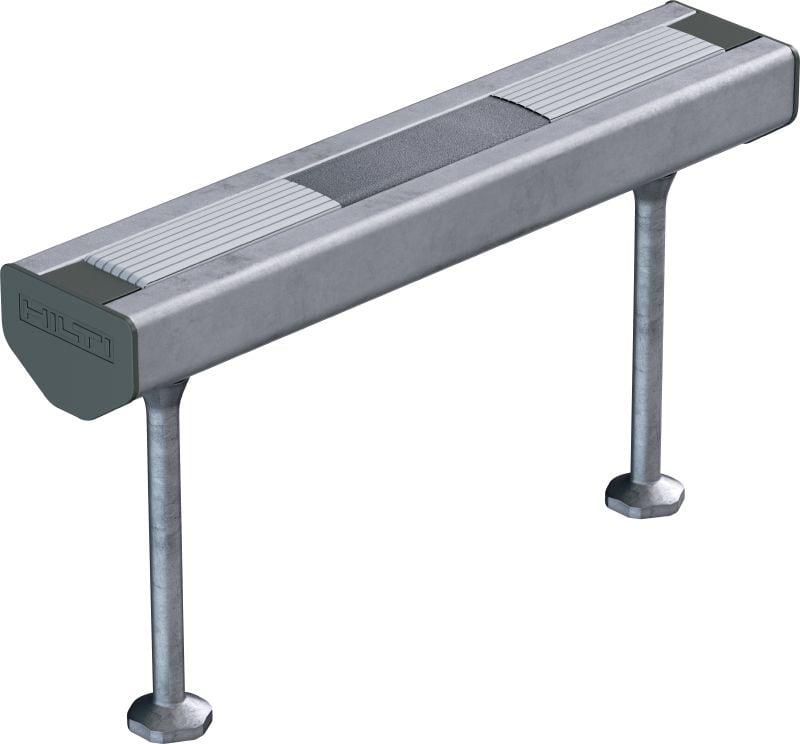

Serrated HAC-V-T Anchor channel

Name: Serrated HAC-V-T Anchor channel
Brand: Hilti
SKU: r14147749
Price: 4516 GBP

Channel profile

Length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £21.34

Technical Data

Material, corrosion

Carbon Steel, Hot-Dip Galvanised

Channel profile

HAC-V-T 30, HAC-V-T 50, HAC-V-T 70

PROFIS software

Yes

pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]

pdf ETA 11/0006 Hilti HAC(-V) anchor channel, English, German, Polish [ 14.5 MB ]

Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
More economical – higher load capacity and multiple embedment depth options so you can use smaller cast-in channels as needed
Engineering support available – use PROFIS Anchor Channel software to streamline the design process, or contact your local Hilti team for project-specific advice
Faster, safer, easier – automate setting T bolts by using the Hilti Adaptive Torque system, helping you improve consistency and save time when setting hundreds of bolts
Serrated HAC-30 anchor channel is compatible with Hilti MQ41 modular MEP support components

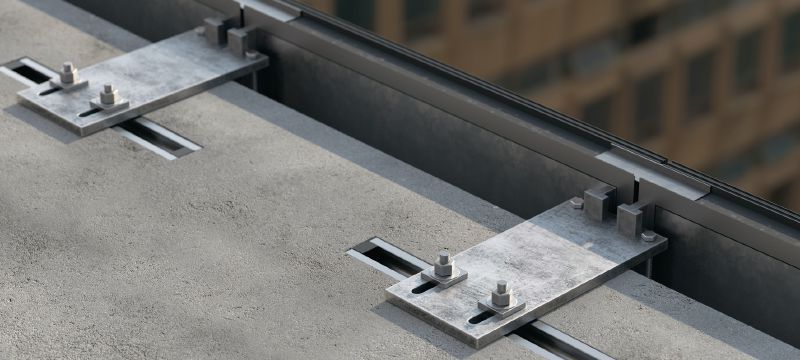

Fastening curtain wall façades in concrete slabs

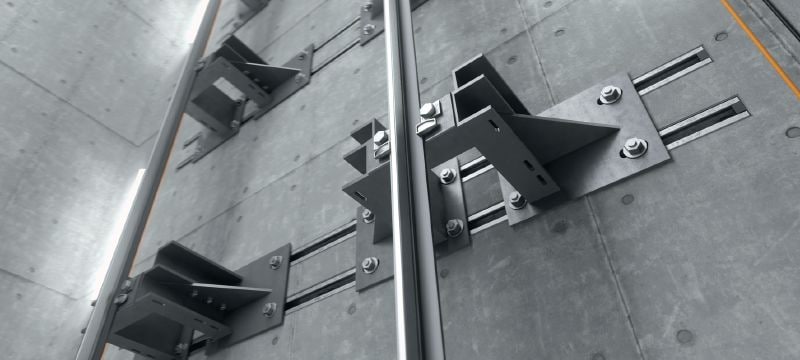

Fastening in lift shafts, such as fixing guiderails, sliding doors or divider beams

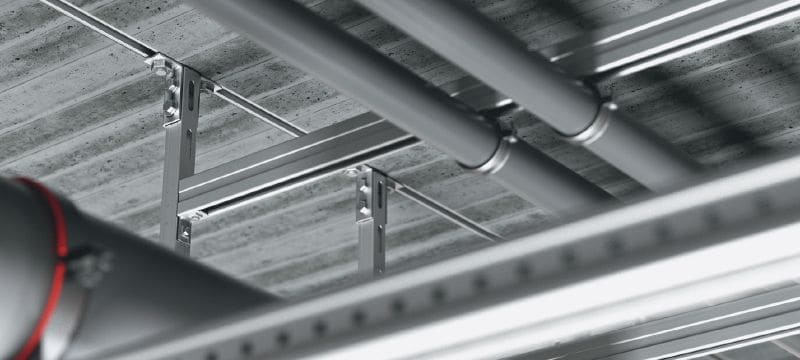

Fastening overhead MEP installations and equipment
Fastening building appliances (e.g. ventilation, heating)
ETA and ICC-ES approval documents for static, fatigue, seismic (ICC-ESR 3520) and fire loading available

For approval or certificate information, please see individual items.
