MFT-FOX VTR M Brackets

LCG003718_v1 (2315701)
LCG003717_v1 (2315872)
LCG003716_v1 (2315860)
LCG003722_v1_cropped (2315761)
LCG003723_v1_cropped (2315778)
LCG003724_v1_cropped (2315798)
LCG003718_v1 (2315701)
LCG003717_v1 (2315872)
LCG003716_v1 (2315860)
LCG003722_v1_cropped (2315761)
LCG003723_v1_cropped (2315778)
LCG003724_v1_cropped (2315798)

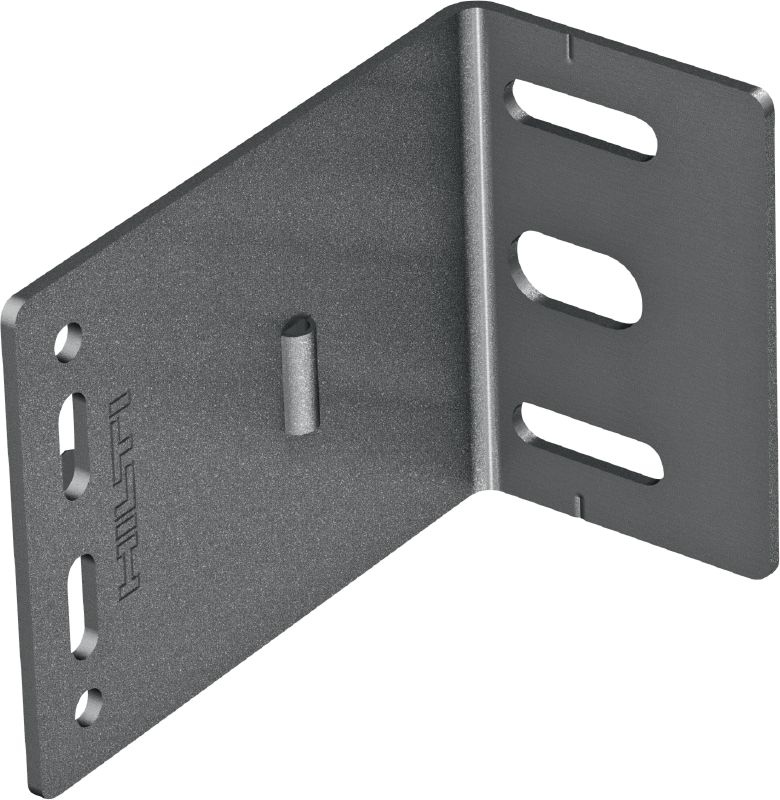

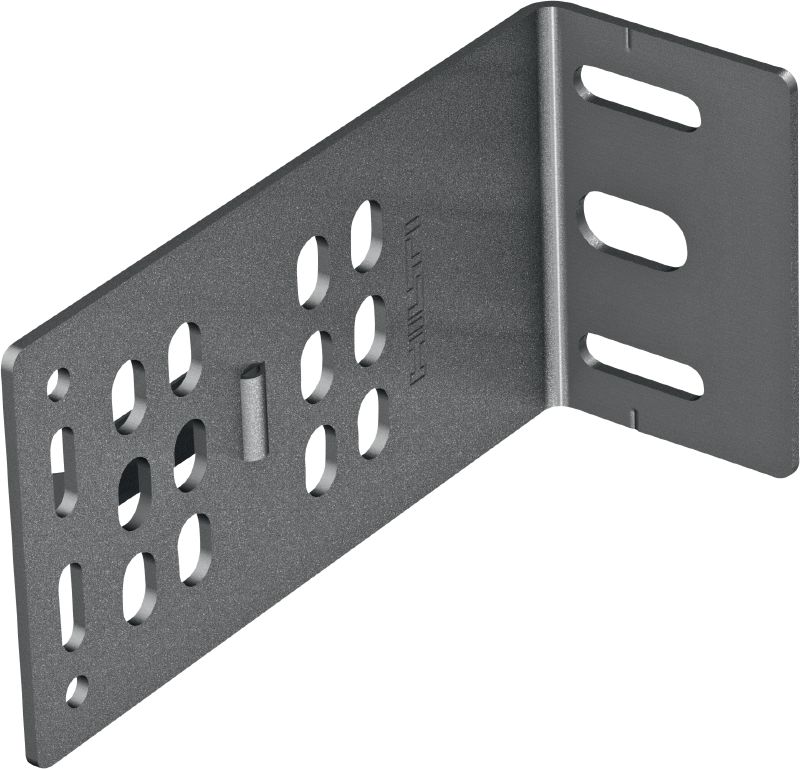

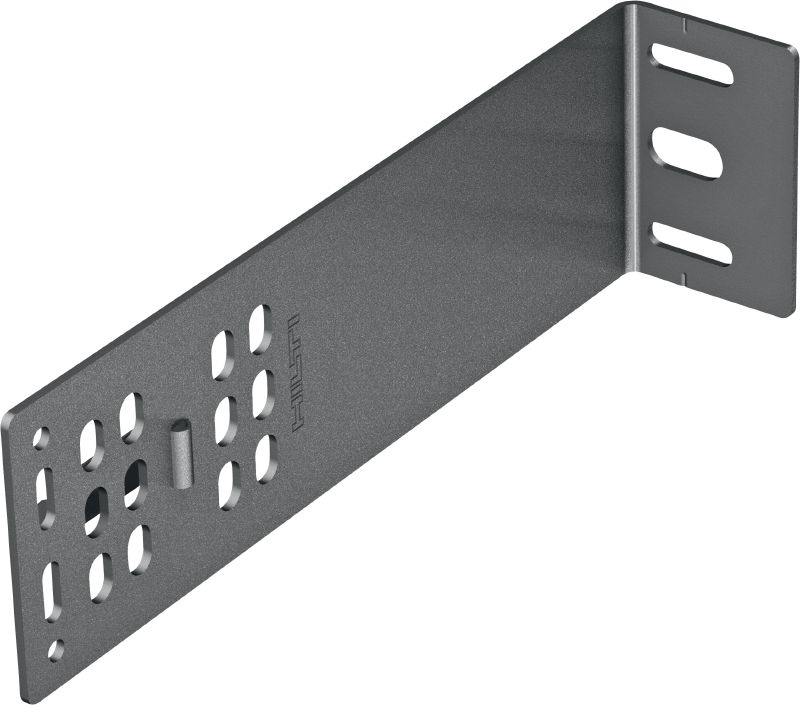

Medium stainless steel brackets for installing ventilated façades with high thermal efficiency

  • Material composition: Stainless steel (DIN 1.4404, Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Width: 50 mm
  • Height: 75 mm

Technical Data

Material composition
Stainless steel (DIN 1.4404, Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Width
50 mm
Height
75 mm

Documents

Features & Applications

Features

  • Versatile and easy-to-install façade mounting brackets with higher thermal performance, thanks to an optimised design
  • Faster installation and labor saving – includes "helping hand" clip and extra pre-drilled holes (fixed and sliding points) to help lower your total cost of installation
  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Certifications – EN 1090 (CE mark), Fire rating A, heat loss assessed by an independent company according to EN ISO 10211
  • Engineering support available – contact your local Hilti team for project-specific advice on the most economical ventilated façade substructure

Applications

  • Fastening ventilated façade substructure to concrete, masonry, SFS and wood

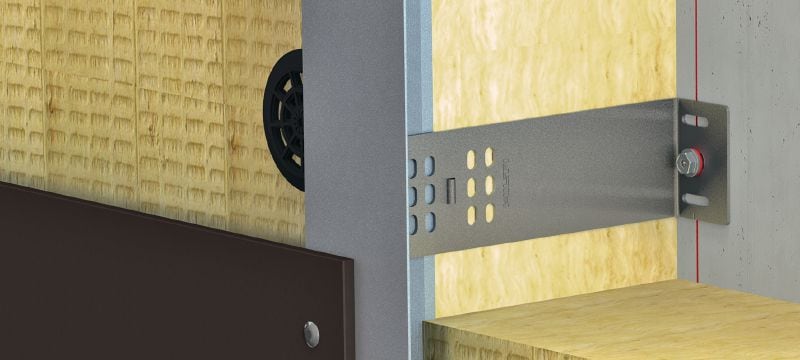

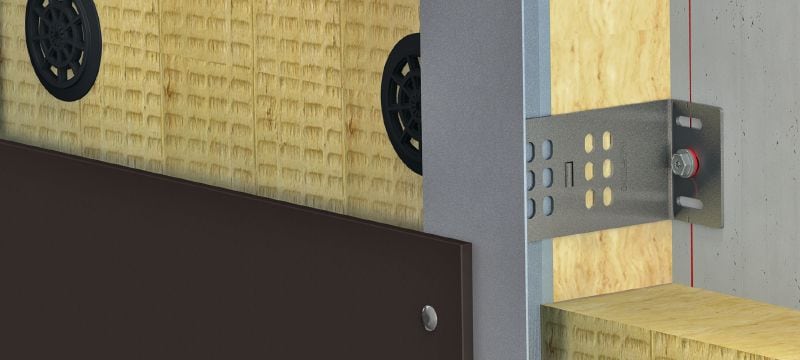

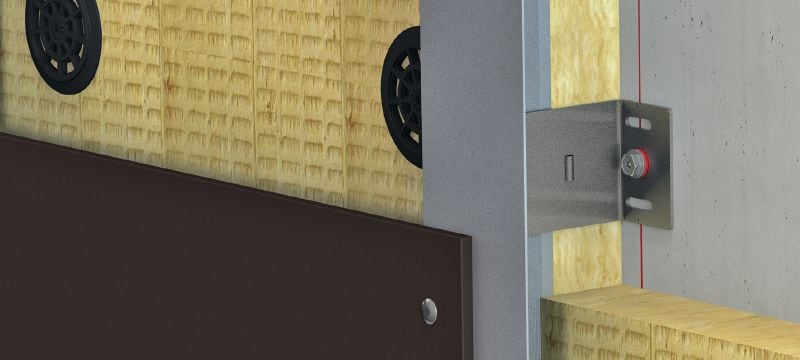

  • Mounting façade substructures on the primary structure (“helping hand” holds rails temporarily in place while fastening)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
