MFT-FOX VTR L Brackets

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003719_v1 (2315706)
LCG003720_v1 (2315721)
LCG003721_v1 (2315726)
LCG003725_v1_cropped (2315817)
LCG003726_v1_cropped (2315835)
LCG003727_v1_cropped (2315854)

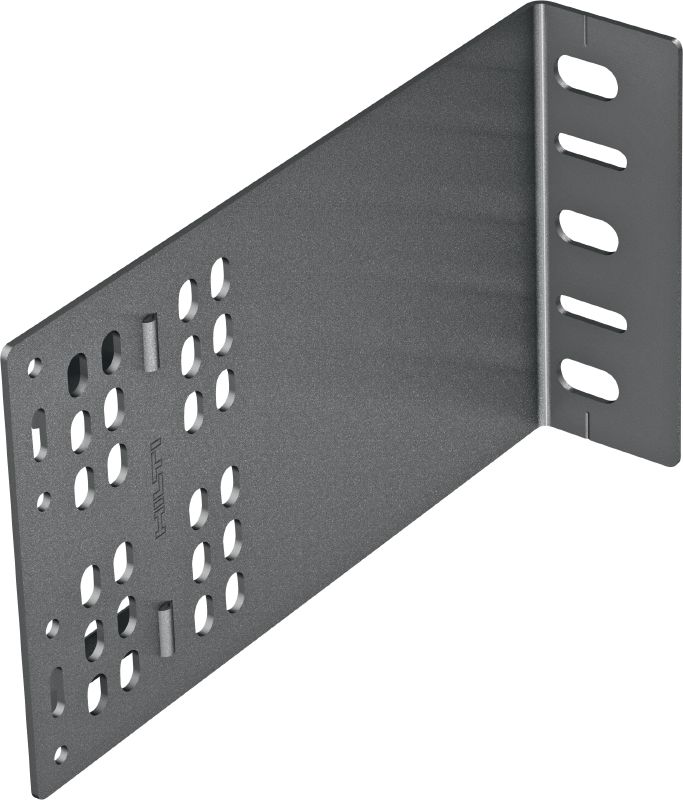

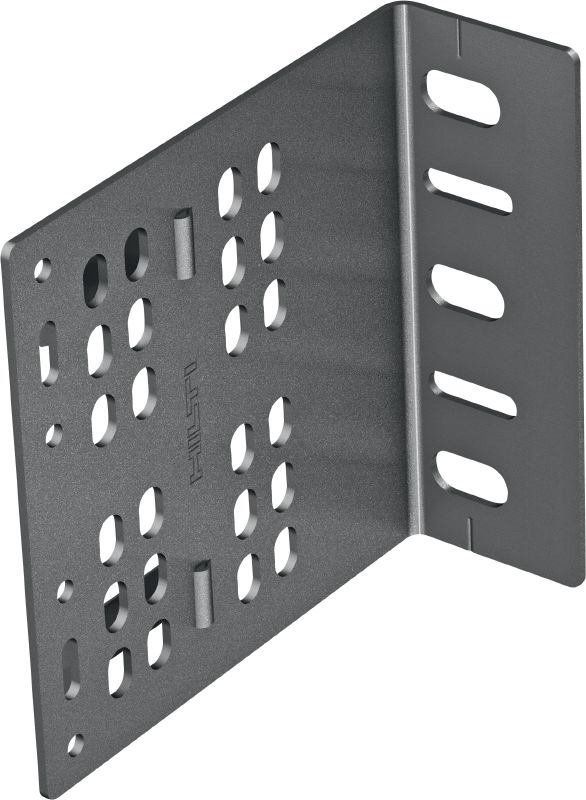

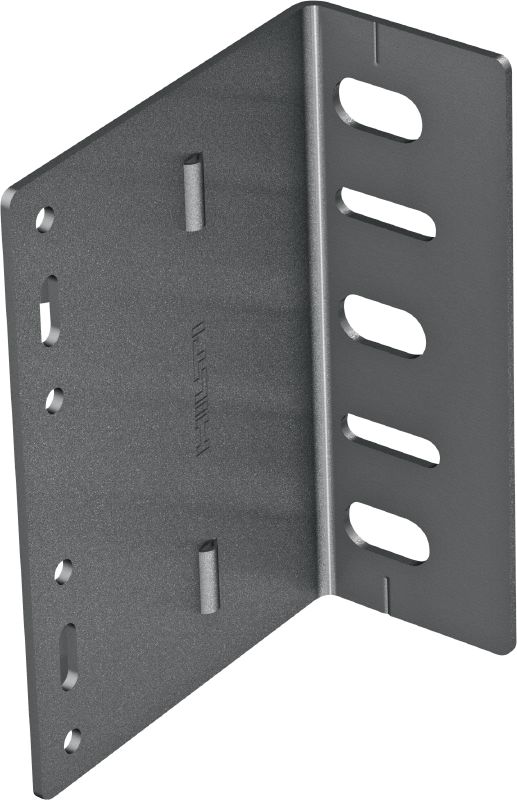

Large stainless steel brackets for installing ventilated façades with high thermal efficiency

  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L, Stainless steel (DIN 1.4404
  • Width: 50 mm
  • Height: 140 mm

Choose options

Length
  • 60 mm
  • 80 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Pack size
  • 15 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £441.30

Technical Data

Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L, Stainless steel (DIN 1.4404
Width
50 mm
Height
140 mm

Documents

Certificate
Reference document
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf BBA N. 13/5063_Sheet 2, English [ 1 MB ]

Features & Applications

Features

  • Versatile and easy-to-install façade mounting brackets with higher thermal performance, thanks to an optimised design
  • Faster installation and labor saving – includes "helping hand" clip and extra pre-drilled holes (fixed and sliding points) to help lower your total cost of installation
  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Certifications – EN 1090 (CE mark), Fire rating A, heat loss assessed by an independent company according to EN ISO 10211
  • Engineering support available – contact your local Hilti team for project-specific advice on the most economical ventilated façade substructure

Applications

  • Fastening ventilated façade substructures to concrete, masonry, SFS and wood

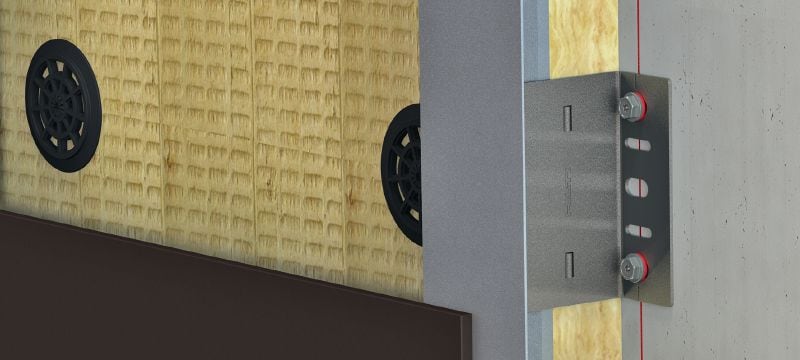

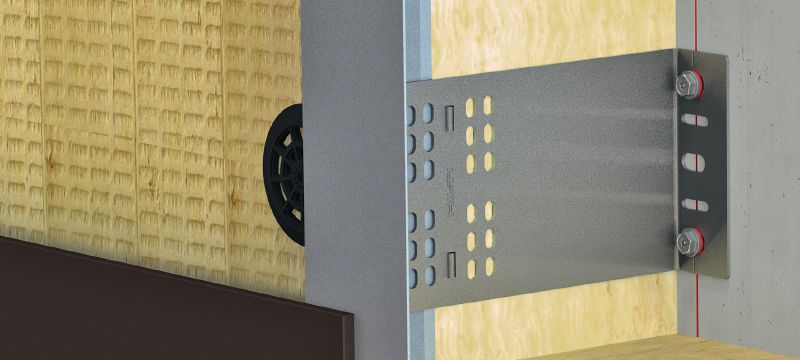

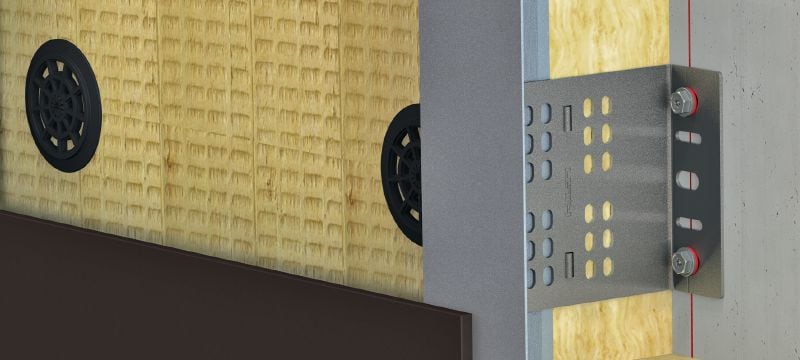

  • Mounting façade substructures on the primary structure (“helping hand” holds rails temporarily in place while fastening)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
