Ultimate wood core drill bit for fast drilling in all types of wood – for cordless core drills and corded tools

  • Base materials: Wood, Cross laminated timber (CLT)
  • Drilling mode: Hand-held and rig-mounted
  • Wet or dry operation: Dry
ultimate

Choose options

Diameter
  • 52 mm
  • 62 mm
  • 68 mm
  • 77 mm
  • 82 mm
  • 102 mm
  • 112 mm
  • 122 mm
  • 132 mm
  • 152 mm
  • 162 mm
  • 182 mm
  • 202 mm
Working length
  • 320 mm
Connection end
  • BI (Hilti)
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £90.87

Technical Data

Base materials
Wood, Cross laminated timber (CLT)
Drilling mode
Hand-held and rig-mounted
Wet or dry operation
Dry
Laser-welded segments
No
Product class
Ultimate
Working length
320 mm

Documents

Features & Applications

Features

  • Faster and smoother drilling – designed for very fast wood drilling with low feed force required, even when handheld drilling through hard wood
  • Long-lasting – high quality teeth provide consistently high drilling speed over the entire life of the core bit
  • Versatile – available in a wide range of core bit diameters to cover your main wood applications
  • Cooler cuts – engineered for cooler cuts with minimum burns
  • Reduced friction – internal teeth cut a gap between the core and the core bit for less friction, fewer jammed core bits and easier core removal

Applications

  • Rig-based or hand-held core drilling in soft, medium and hard wood (not recommended for cutting nails or screws embedded in the wood)
  • BI quick-release connection end for cordless and corded diamond drilling tools (less than 2.5 kW)and BS (1-¼") universal connection end for third party diamond drilling tools
  • Suitable for use with the DD 150-U (hand-held and rig-based core drilling up to 162 mm diameter) and the DD 160 (rig-based core drilling up to 202 mm diameter)
  • Suitable for use with the DD 150-U-22 (hand-held core drilling up to 202 mm diameter and rig-based core drilling up to 162 mm diameter) and the DD 160-22 (rig-based core drilling up to 162 mm diameter)

For approval or certificate information, please see individual items.

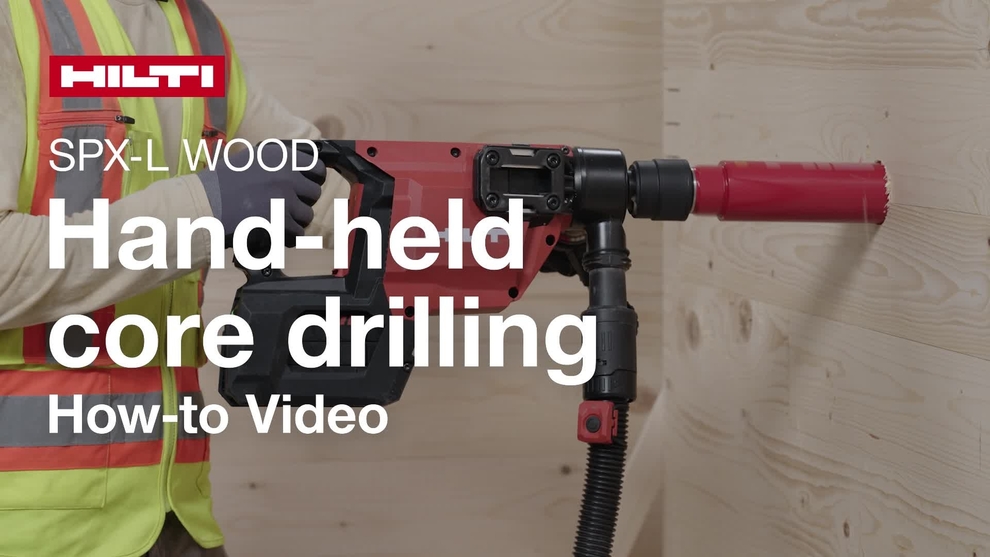

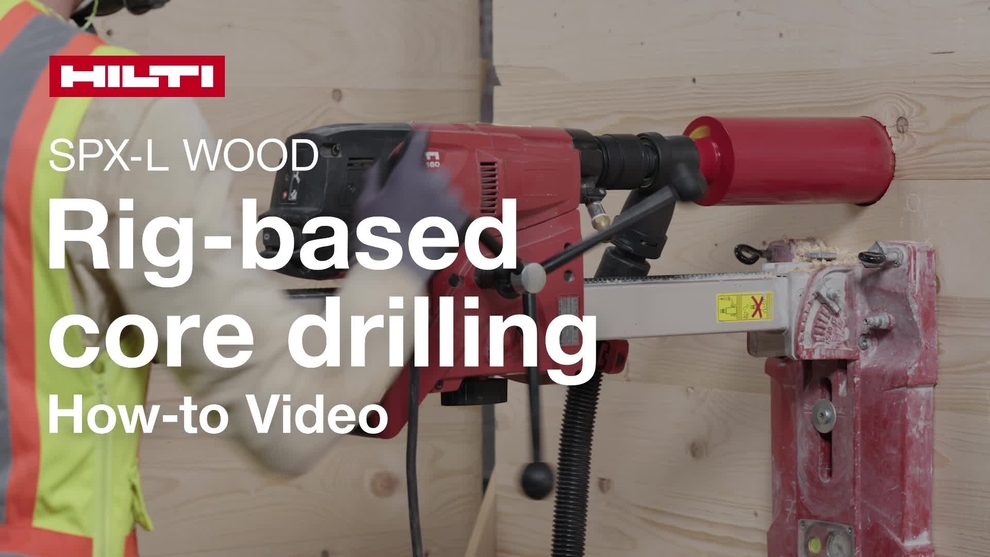

Product Videos
