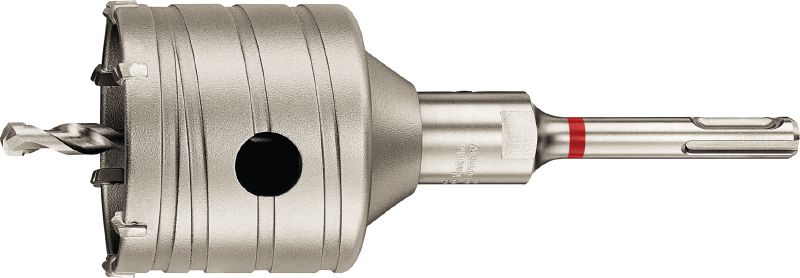

TE-C BK (SDS Plus) Rotary hammer core bit
SDS Plus (TE-C) rotary hammer core bit for cutting holes in masonry, brick and sandstone
- Connection end: TE-C (SDS-plus)
- Base material: Masonry, Brick, Sand-lime block
- Working mode: Hammer drilling
ultimate
Choose options
Diameter
- 65 mm
- 68 mm
- 80 mm
Length
- 175 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £331.70
Technical Data
Connection end
TE-C (SDS-plus)
Base material
Masonry, Brick, Sand-lime block
Working mode
Hammer drilling
System parts
No
Product class
Ultimate
Documents
pdf Operating Instruction TE-C BK, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.4 MB ]
Features & Applications
Features
- Asymmetrical tooth geometry and sharp cutting edges for higher efficiency and faster drilling progress
- Side holes in the core bit body enable easy removal of the drilled core
- Increased carbide tip protrusion and chamfer on the toothed crown reduce jamming
- Centring drill bit for easy, precise spot drilling
- Special screw with internal hexagon help to prevent the loosening of the centring drill bit during usage
Applications

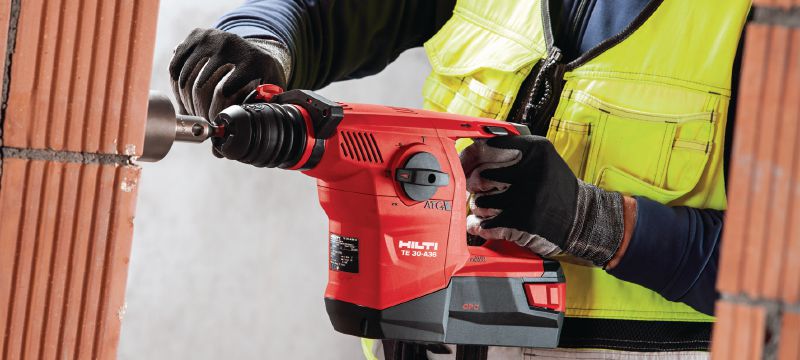

- Socket cutting in masonry, brick and sandstone
- Drilling large-diameter and penetration holes in masonry, brick and sandstone
For approval or certificate information, please see individual items.
