DD 250-CA Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125057 (213668)
L125072 (213665)
L125060 (213674)
L125058 (213681)
L125062 (213666)
L140723_cropped (223683)
L140724_cropped (223682)
L140708_cropped (223671)
L140710_cropped (223669)
L140714_cropped (223676)
L140716_cropped (223678)
L140717_cropped (223679)

Advanced heavy-duty diamond drilling tool with optional Cut Assist autofeed unit for coring very small to large diameter holes of 12-500 mm (1/2" - 20”)

  • Diameter range: 12 - 500 mm
  • Base material: Concrete, Reinforced concrete, Asphalt
  • Operation mode: Rig-based drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £4,850.00

Technical Data

Diameter range
12 - 500 mm
Base material
Concrete, Reinforced concrete, Asphalt
Operation mode
Rig-based drilling system
Number of gears
4
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm; gear 4: 2220 rpm
Weight according to EPTA-Procedure 01/2003 without battery
15.4 kg
Weight of complete system
37 kg
Dimensions (LxWxH)
630 x 190 x 215 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DD 250-CA, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hebrew, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Russian, Slovak, Swedish [ 12.9 MB ]

Features & Applications

Features

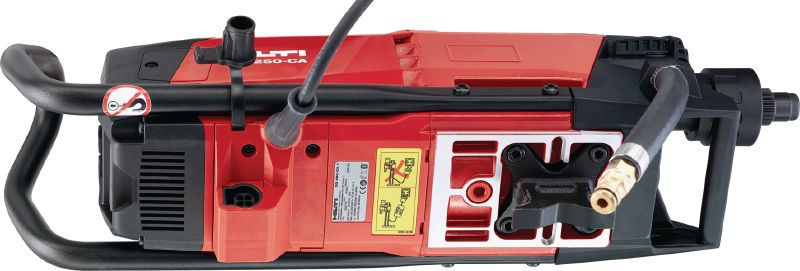

  • Air-cooled, heavy-duty drive unit – core drill built for high performance with a sturdy design and convenient controls
  • Extremely wide diameter range – four-speed gearing for use with most core bit sizes
  • Hole-starting function – low-vibration, low-speed mode to start drilling with large-sized core bits

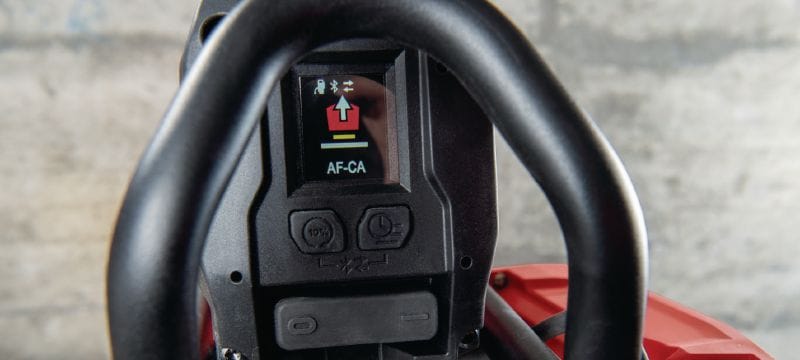

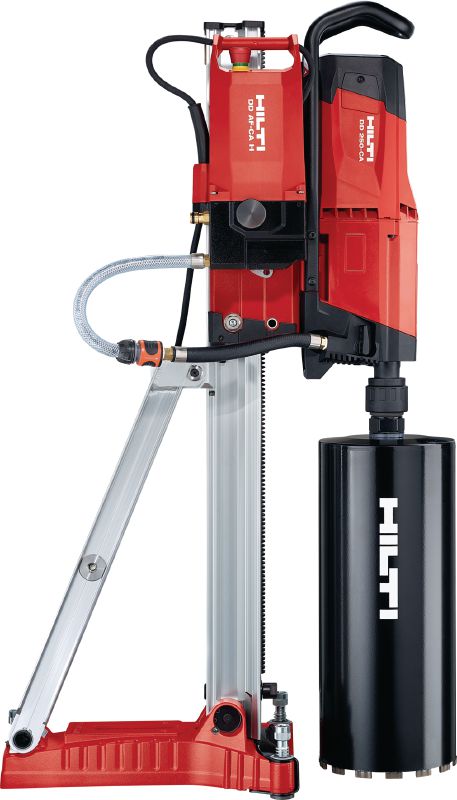

  • Hilti Cut Assist – equips the core drill for fully automated drilling. Starts when surface is detected, then continuously optimises speed and water flow, even when cutting through rebar. Cut Assist means much higher productivity and more time for other tasks (optional DD AF-CA H autofeed unit required)

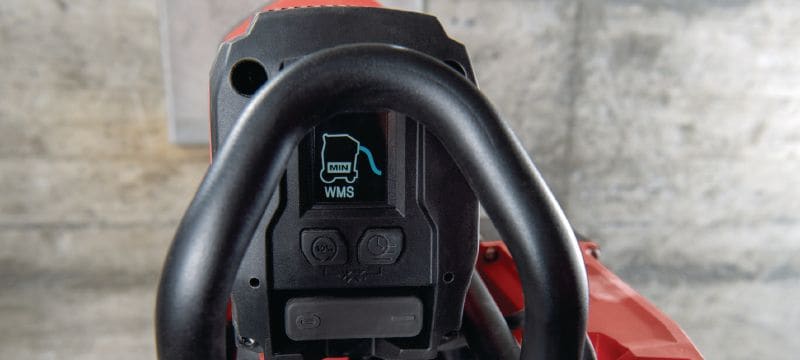

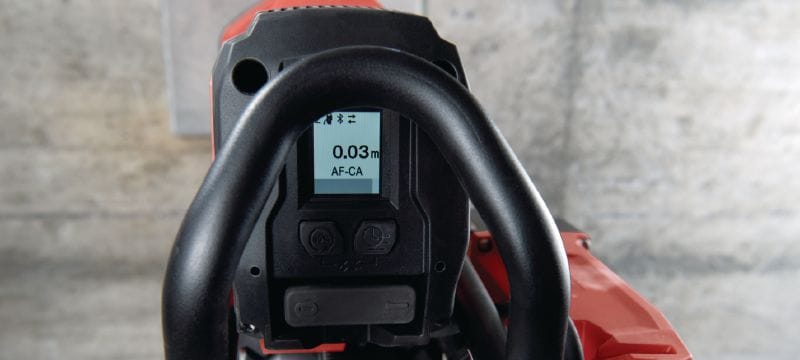

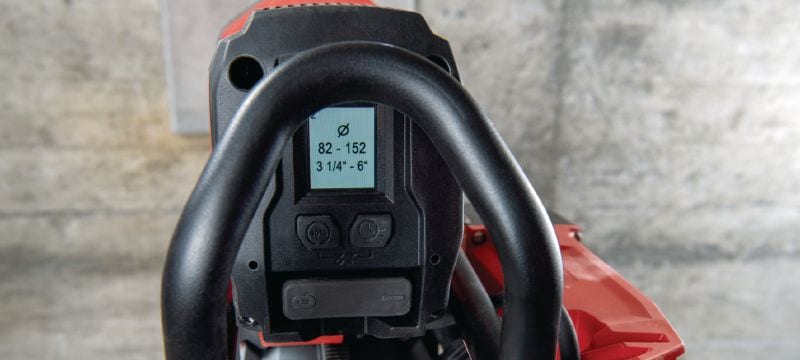

  • Real-time information display – digital spirit level, gear selector, power control function, detailed usage statistics and easy-to-understand service messages

Applications

  • Core drilling penetrations for ducts, pipes and cables
  • Core drilling blind holes for setting anchors or post-installed rebar
  • Stitch drilling for breaches
  • Assisted drilling of large quantities of holes with DD AF-CA H autofeed unit
  • Assisted drilling of deep holes and extremely large diameters with DD AF-CA H autofeed unit

For approval or certificate information, please see individual items.
