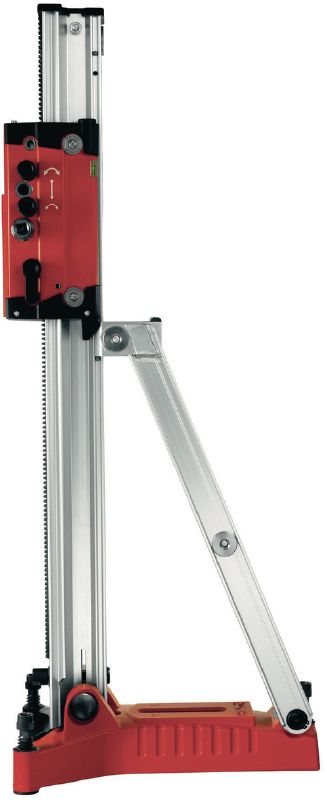

DD-HD 30 Core drill stand
Drilling stand DD-HD 30 #2148548
Drill stand for heavy duty Hilti coring machines (see technical data for tool compatibility)
- Fixation mode: Anchor, vacuum with add-on vacuum pad
- Angular coring: Yes
- Column extension: Yes
Customers also searched for rig-stand, columns or diamond-drill.
Technical Data
Fixation mode
Anchor, vacuum with add-on vacuum pad
Angular coring
Yes
Column extension
Yes
For use with
DD 200, DD 250-CA, DD 350-CA, DD 500-CA
Weight
21.4 kg
Base plate dimensions (LxW)
410 x 272 mm
Drill stand height
1086 mm
Extendable diameter capacity
Yes
Additional accessory information
Drill stand for DD 200, DD 250, DD 350-CA and DD 500-CA
Features & Applications
Features
- Built-in fine feed – making drilling less tiring during sustained operation
- Angular drilling – easy, stepless adjustment up to 45°
- Comprehensive range of accessories available – such as vacuum pads, spacers, cross column, jack screws and fastening kits
- Easy set-up – tool-free quick-connection of drive unit
Applications
- Drilling range up to 300 mm diameter without spacers
- Drilling range up to 600 mm diameter with spacers
- Coring at angles of up to 45°
- Can be fastened by anchor, using the optional vacuum pad or with the jack screw
