Nuron

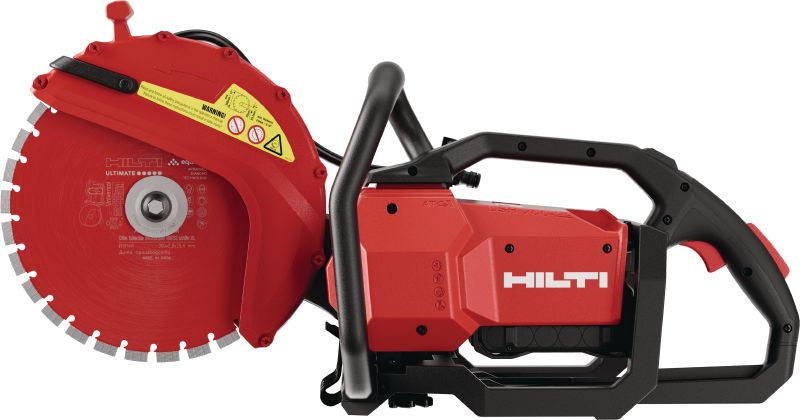

DSH 700-22 ATC Battery-powered cut-off saw (300mm)

Kit DSH 700-22 ATC + SPX-A

L152465 (3706858)
L152664_cropped (4074200)
L153048_cropped (4074170)
L152699_cropped (4074201)
L153090_cropped (4074175)

Versatile rear-handle battery cut-off saw, for cutting up to 120 mm with 300 mm blades in concrete, masonry and metal (Nuron battery platform)

  • Base materials: All types of concrete and brick, All types of masonry (hollow brick, sand-lime block, etc.), Asphalt, Steel, Mineral
  • Dimensions (LxWxH): 740 x 290 x 350 mm
  • Protection class: IEC Battery operated

Customise your kit

Tool body
Tool body with cardboard box Includes: 1x Flange D60 kit, 1x Blade SF DSH 300/25 SPX univ A
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occurred

Please contact us

Technical Data

Base materials
All types of concrete and brick, All types of masonry (hollow brick, sand-lime block, etc.), Asphalt, Steel, Mineral
Dimensions (LxWxH)
740 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
107 dB (A) 1
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DC-D, DG-CW, DC-TP, Russian, English, Spanish, French, Portuguese [ 3.1 MB ]
pdf Operating Instruction DSH 600-22 & DSH 700-22, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Slovak, Swedish [ 4.9 MB ]

Features & Applications

Features

  • Matching power-class – our second generation offers improved power to help match the performance and feel of a 70cc gas cut-off saw, all without the fumes, noise or high vibration rate
  • Advanced safety features – new 3D Active Torque Control (ATC) stops unexpected saw kickback in under 1 second and fast-acting blade brake stops the blade in ≤ 4 seconds after releasing the trigger
  • Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-290 Nuron batteries and 300 mm SPX univ. A cordless-optimised blades (see technical data below)
  • Push button start – green LED power button indicates whenever the tool is ON and automatically turns the tool OFF after 1 minute
  • Versatile handling – weighing 13.5 kg (with two B 22-290 batteries and a 300 mm blade), this cut-off saw can be used for both ground-facing and front-facing applications

Applications

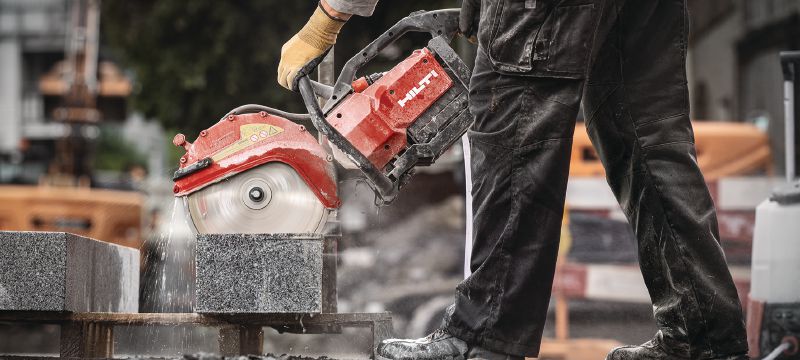

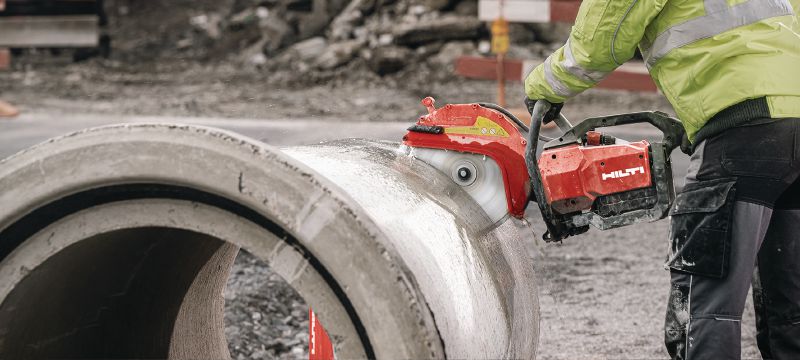

  • Construction work – cutting out openings in brick or concrete walls

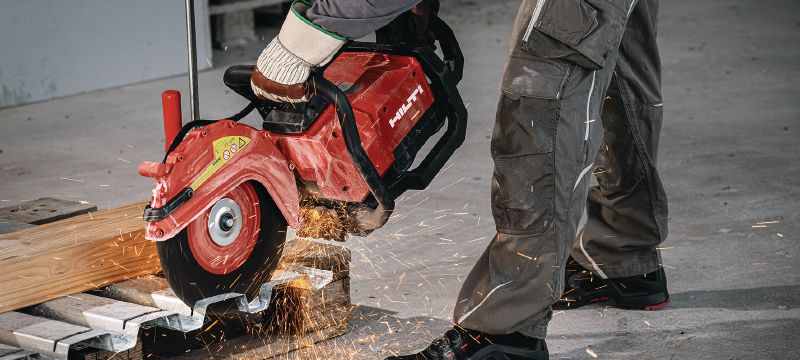

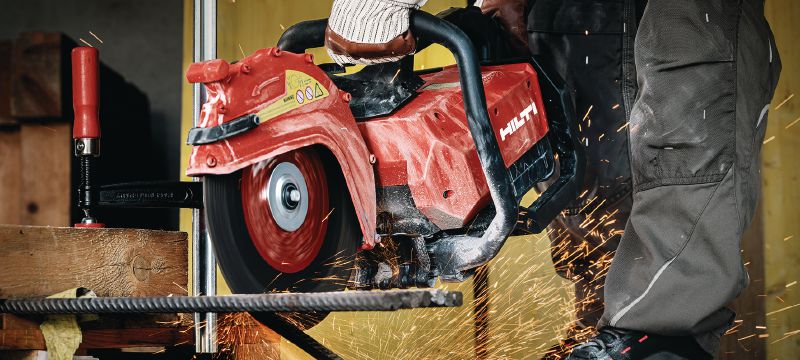

  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Laying paving – cutting curbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Floor construction – cutting expansion joints in fresh concrete
