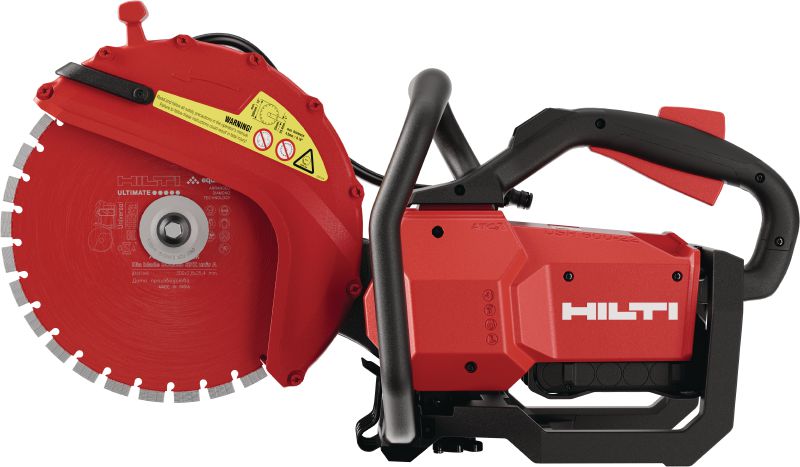

DSH 600-22 ATC Battery-powered cut-off saw (300mm)
Kit DSH 600-22 ATC + SPX-A #3952833
Compact top-handle battery cut-off saw, for cutting up to 120 mm with 300 mm blades in concrete, masonry and metal (Nuron battery platform)
- Base materials: All types of concrete and brick, All types of masonry (hollow brick, sand-lime block, etc.), Asphalt, Steel, Mineral
- Dimensions (LxWxH): 660 x 290 x 350 mm
- Protection class: IEC Battery operated
Customise your kit
Tool body with cardboard box Includes: 1x Flange D60 kit, 1x Dia blade 300/25 SPX univ A
How many kits do you want to order?
Discounted net
£1,124.10
Technical Data
Base materials
All types of concrete and brick, All types of masonry (hollow brick, sand-lime block, etc.), Asphalt, Steel, Mineral
Dimensions (LxWxH)
660 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
107 dB (A) 1
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Matching power-class – our second generation offers improved power to help match the performance and feel of a 60cc gas cut-off saw, all without the fumes, noise or high vibration rate
- Advanced safety features – new 3D Active Torque Control (ATC) stops unexpected saw kickback in under 1 second and fast-acting blade brake stops the blade in ≤ 4 seconds after releasing the trigger
- Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-290 Nuron batteries and 300mm SPX univ. A cordless-optimised blades (see technical data below)
- Push button start – green LED power button indicates whenever the tool is ON and automatically turns the tool OFF after 1 minute
- Comfortable handling – weighing 12.2kg (with two B 22-195 batteries and a 300 mm blade), this cut-off saw offers easier and more controlled cuts in any orientation
Applications
- Laying paving – cutting curbstones and paving slabs to size

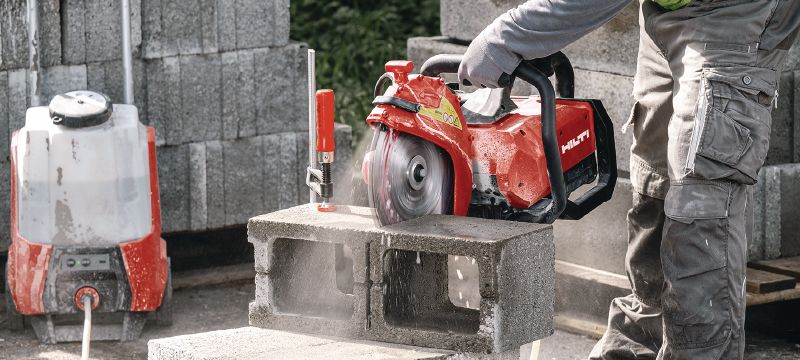

- Masonry work – cutting bricks and blocks to size

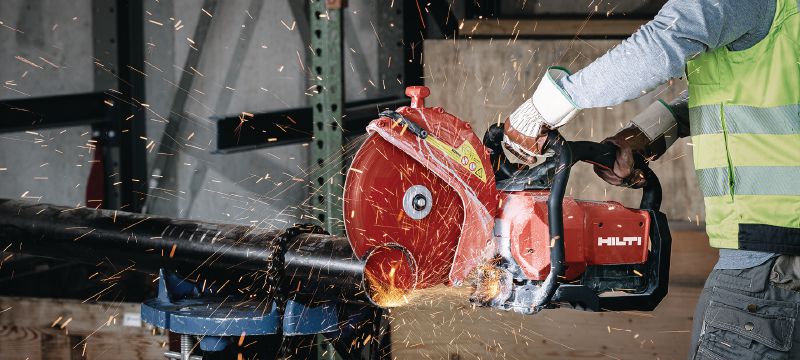

- Metalwork – cutting steel profiles, pipes and steel sheets
- Construction work – cutting out openings in brick or concrete walls
- Sewage work – cutting where working space is limited
