DSH 700-22 battery cut-off saw (rear handle)

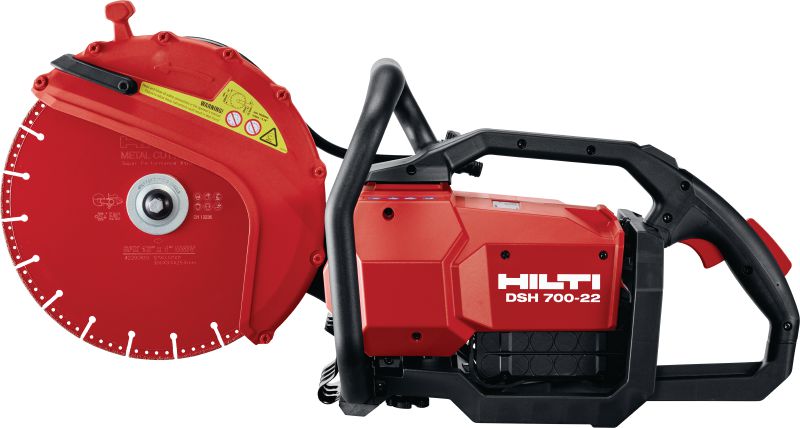

Hand-held battery cut-off saw DSH 700-22 #2334179

Configurator

Technical Data

Documents

Features & Applications

Customise your kit

Tool body

Tool body with cardboard box Includes: 1x Flange D60 kit

How many kits do you want to order?

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

£935.00

Technical Data

Base materials

All types of concrete and brick, All types of masonry (hollow brick, sand-lime block, etc.), Asphalt, Steel, Mineral

Dimensions (LxWxH)

740 x 290 x 350 mm

Protection class

IEC Battery operated

Work environment

Interior and exterior

Arbor Size

Option 1 : 25.4 mm; Option 2: 20 mm

A-weighted emission sound power level

108 dB (A) ¹

According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DSH 600-22 (01), Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Slovak, Swedish [ 10.2 MB ]

Download

Features & Applications

Features

Battery-powered rear handle cut-off saw for floor-focused tasks – DSH 700-22 gets the same work done as gas cut-off saws in this class, but without the fumes, noise, extra maintenance and fuel mix issues
Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimized blades
Lower running costs – no fuel to buy or mix; less maintenance and up to double the lifespan of a gas saw thanks to a brushless electric motor
Perfect for ground-facing applications – this cut-off saw weighs just 8.8 kg (or 13.3 kg including two B 22-255 batteries and a 300 mm blade)
Improved safety features – fume-free, quieter, lower-vibration cutting and a fast-acting blade brake

Applications

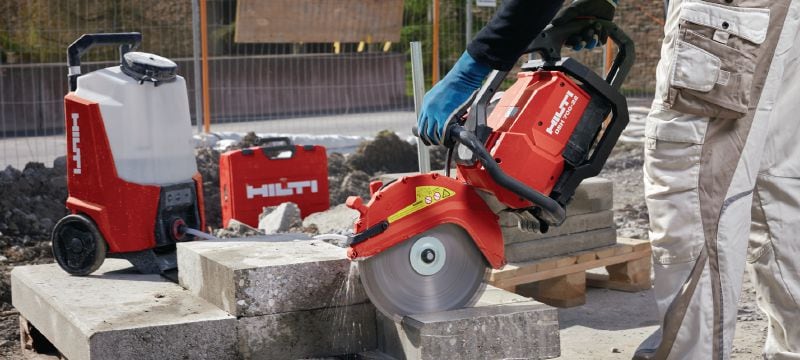

Slabs and paving – cutting concrete, asphalt, curbstones and pavers (max. cutting depth 120 mm with 300 mm blades)

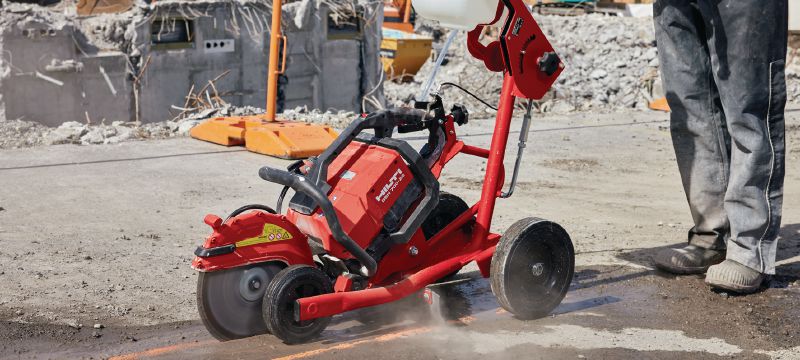

Floor construction – cutting expansion joints. Compatible with the DSH-FSC floor saw trolley (sold separately)
Cutting concrete and masonry – such as making new openings or trimming blocks to size

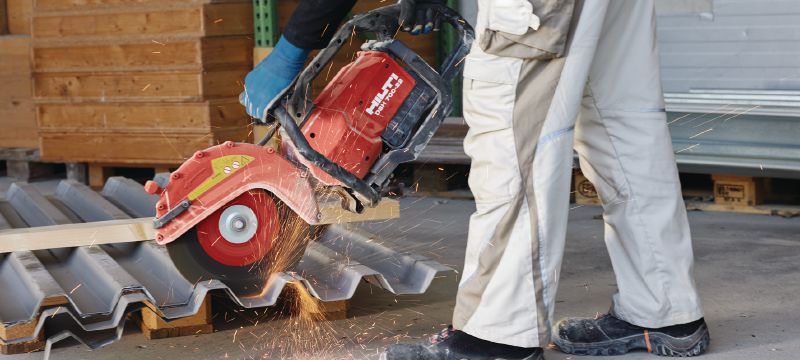

Metalwork – cutting metal deck, reinforcing bar, steel sheet, metal track and pipes

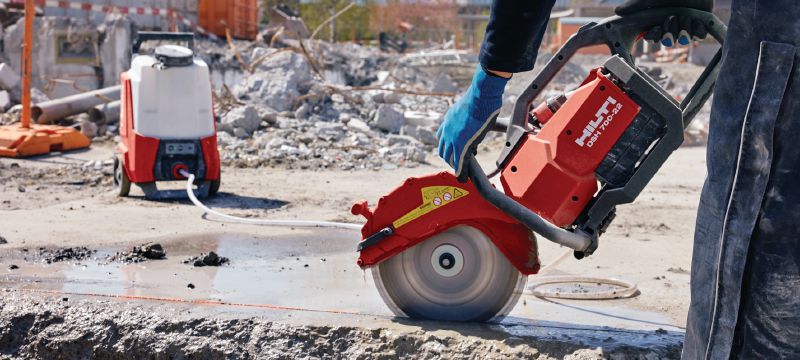

Lower-dust cutting with DSH-DRS accessories – using a compatible vacuum or water supply may help you comply with local silica dust exposure limits
