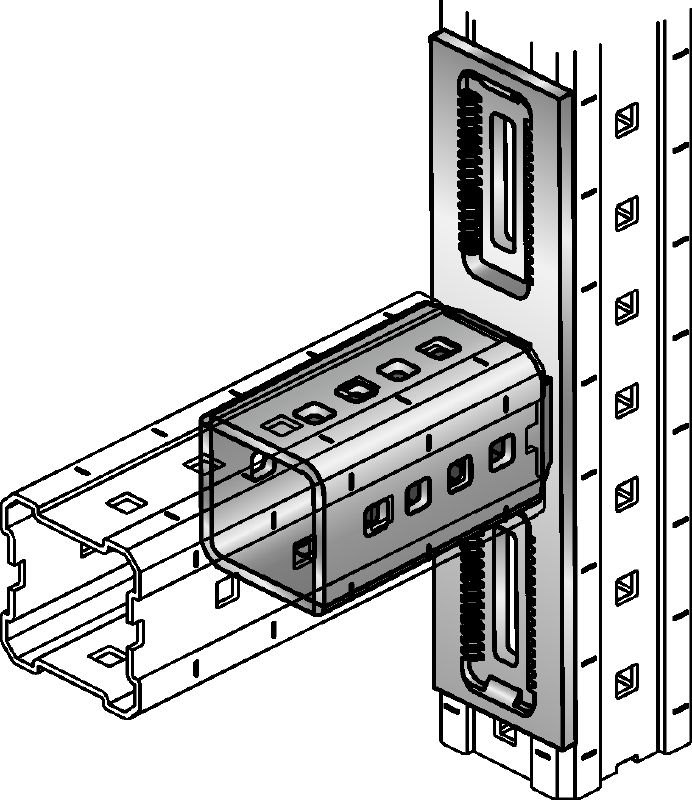

Hot-dip galvanised (HDG) connector for fastening MI girders perpendicularly to one another

  • Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; backing plate, toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

14607.eps
IS_HNA_305.eps
Material composition
Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; backing plate, toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Provides a strong and rigid connection
  • Adjustable by up to 50 mm during installation
  • Can be finely adjusted by up to 5 mm
  • Connector comes with self-locking nuts to help protect against vibration
  • No welding required – for faster, more efficient installation

Applications

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Provides flexible solutions for industrial and heavy commercial applications, eliminating the need for welding

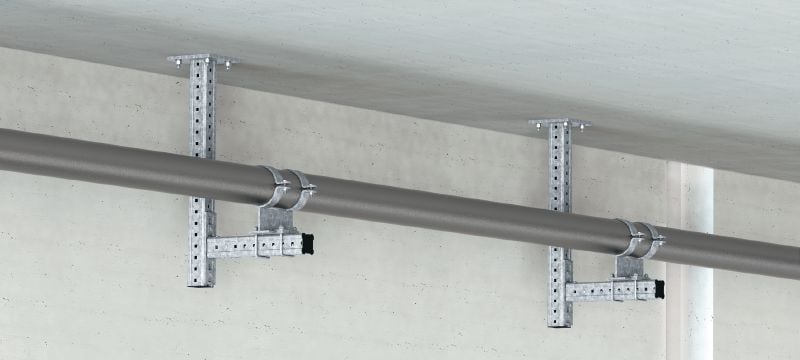

  • Cantilever connections

For approval or certificate information, please see individual items.
