MM-R-16-36

Rail support MM-R-16-36 #418762

Configurator
Technical Data
Documents
Features & Applications
Related Products
MM-R-16-36
MM-R-16-36

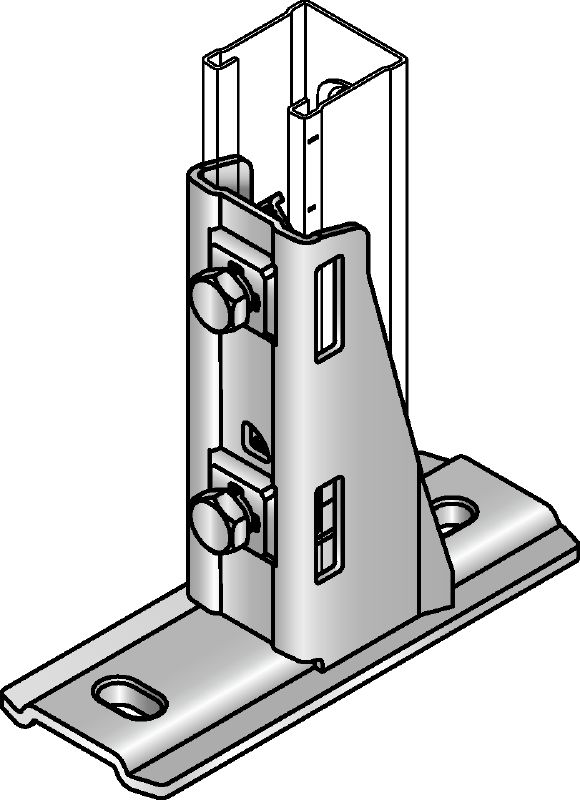

Galvanised channel foot for fastening MM channels to various base materials

  • Product class: Ultimate
  • Tightening torque: 12 Nm
  • Thread connection - M: M8
ultimate

Choose options

Thread connection - M
  • M8
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£250.00
£25.00 / 1 Piece

Technical Data

Product class
Ultimate
Tightening torque
12 Nm
Thread connection - M
M8
Material composition
Material: DC04 - DIN EN 10130, Plate: DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
For use with
MM-C-16, MM-C-30, MM-C-36
Wrench size
13 mm
Weight
424 g

Documents

pdf Operating Instruction MM-R, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.1 MB ]

Features & Applications

Features

  • Preassembled – for quicker installation and to help avoid losing parts
  • Designed to be reliable and easy to use
  • Elongated holes allow easy adjustment to the correct position
  • Flexibility – complete many different applications using few parts

Applications

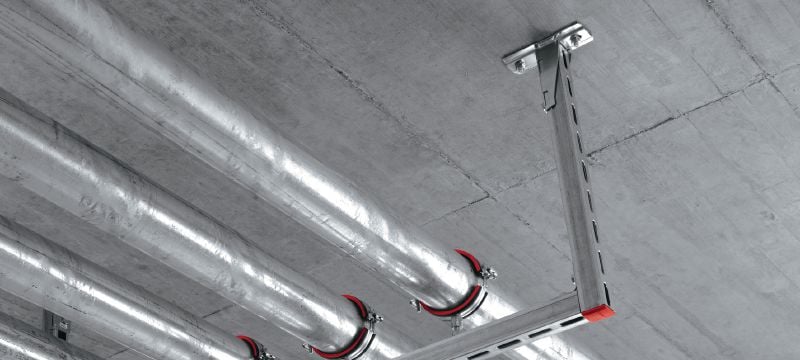

  • Fastening MM installation channels to any base material
  • Assembling channel frames and support structures
