MQT Beam clamp

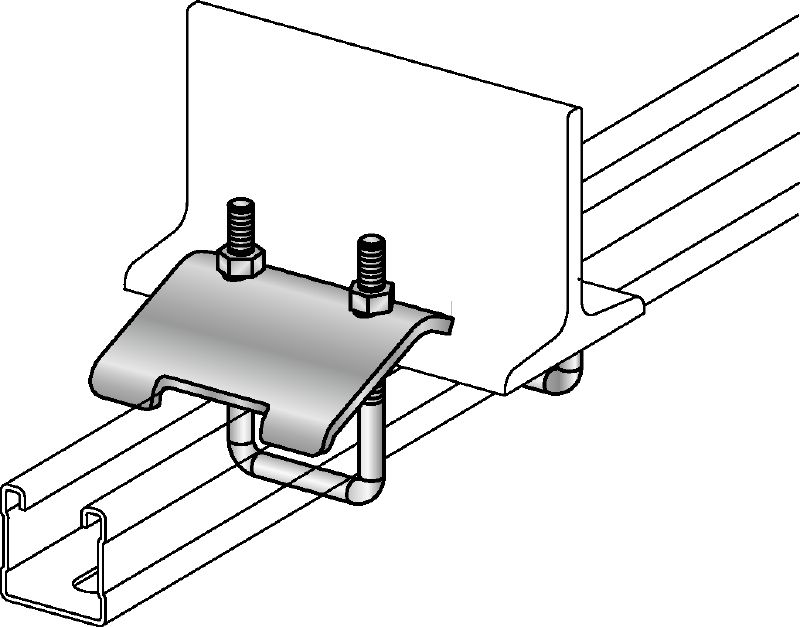

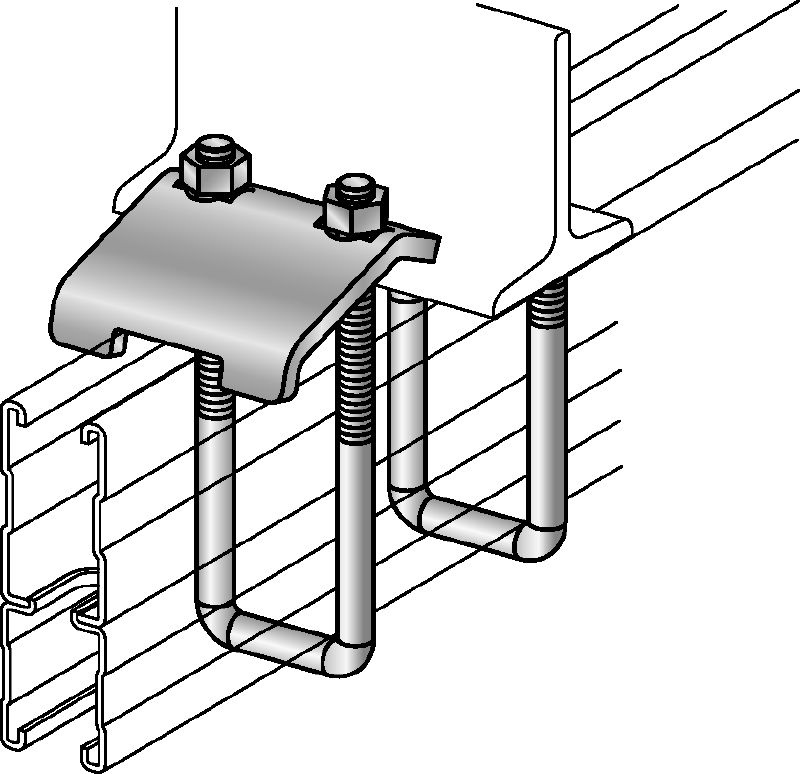

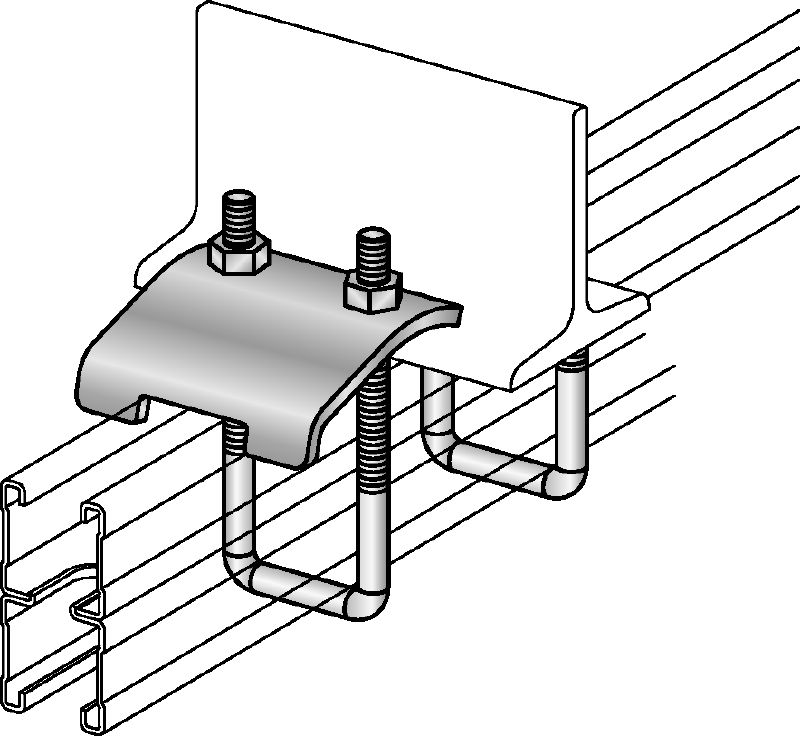

Galvanised beam clamp for connecting MQ strut channels directly to steel beams
- Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M8
- M10
- M12
For use with
- MQ-124XD, MQ-41D, MQ-52-72 D
- MQ-21D, MQ-41
- MQ-41, MQ-41/3, MQ-41D, MQ-52, MQ-72
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £228.80
Technical Data
Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
pdf Engineering Centre Whitepaper - FoS Studs and Beam Clamps (EN), English [ 762.1 KB ]
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
- Flexible solution
- Fits all standard T-beams (max. clamping thickness = 23 mm)
- Quick installation
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
- Fastening channels to steel beams without drilling or welding
For approval or certificate information, please see individual items.
