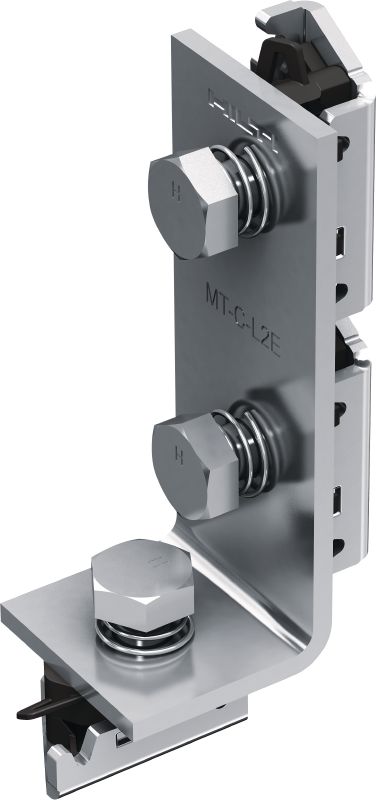

MT-C-L2E FL Pre-assembled corner angle
New productItem #r21345767
Elongated angle bracket with pre-assembled Fast-Lock nut and bolt for assembling strut channel structures
- Material composition: S235JR
- Material and coating: Carbon steel - indoor coated
- Material thickness: 4 mm
Share
Features
- Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
- Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
- Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Extensive software support – PROFIS Modular Support Engineering, BIMCAD content and Revit® families are all available to streamline design and ordering
Applications
- Right-angle connections between any MT strut channels

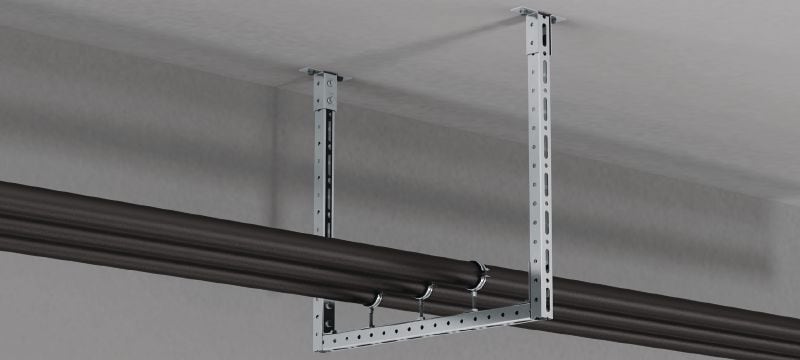

- Assembling 2D metal framing for MEP support structures
- Suitable for use in dry, indoor environments
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- Operating Instruction MT-C-L2E FL/OC, Italian, Hebrew, Serbian, German, Turkish, Russia, Swedish, Ukrainian, French, Arabic, Portuguese, Finnish, Spanish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Bulgarian, Korean, Slovakian, Japanese, Estonian, Croatian, English, Kazakh, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.1 MB ]
- Operating Instruction MT-FL/OC, [ 1.9 MB ]
Application videos
-
MT Fast-Lock Portfolio Promo (16:9, EN)
