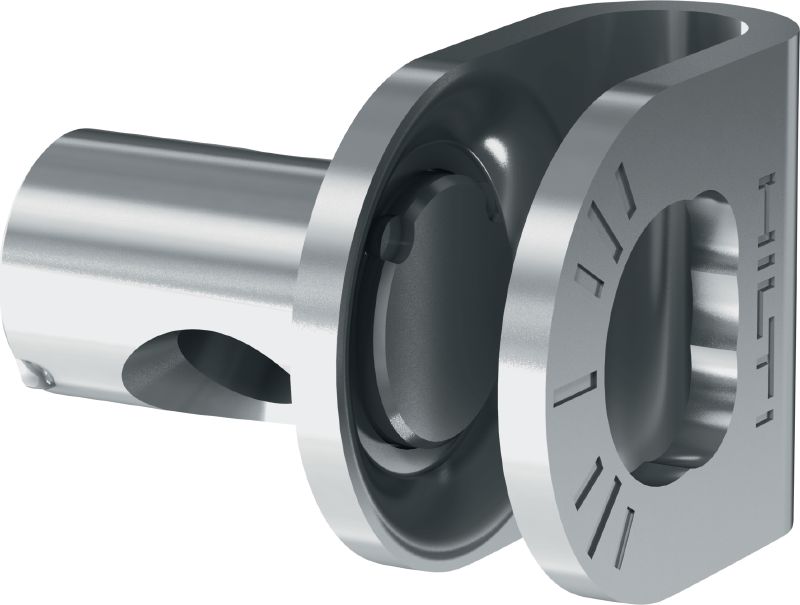

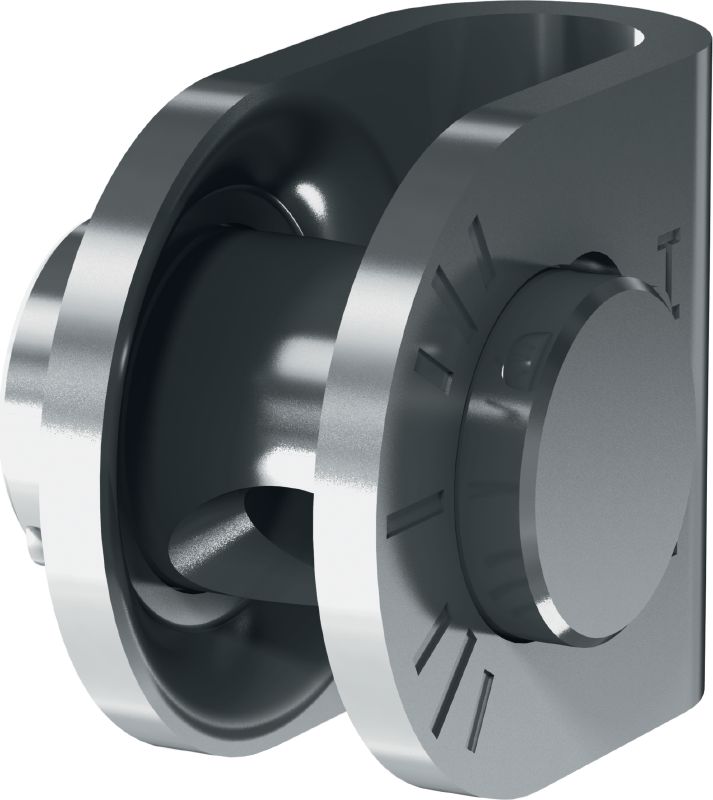

MT-S-HR Seismic hinge
Galvanised hinge for seismic bracing of MEP support structures
- Material composition: Connector: S275JR - EN 10025-2, Pin: 11SMnPb37+C - DIN EN 10277-3
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 3 mm
Technical Data
Material composition
Connector: S275JR - EN 10025-2, Pin: 11SMnPb37+C - DIN EN 10277-3
Surface finish
Indoor Coated - Electro galvanised
Material thickness
3 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Retrofittable and adjustable – two-component design can more easily be post-installed to existing pipe/cable supports, with angle markings to make it easier to fix the rod at 45°
- Versatile – load range suitable for a wide range of light- and medium-duty MEP installations
- Engineering support available – contact your local Hilti team for project-specific advice
Applications

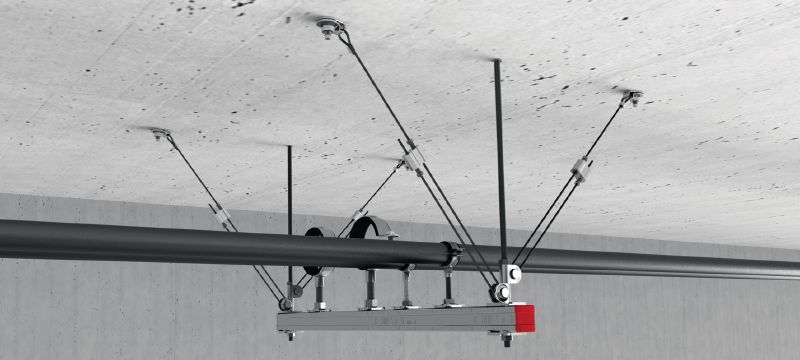

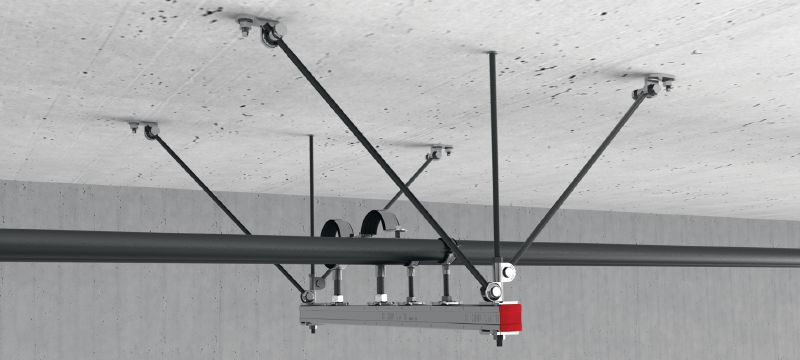

- Installing pipes, cable trays and air duct supports in seismic-relevant areas

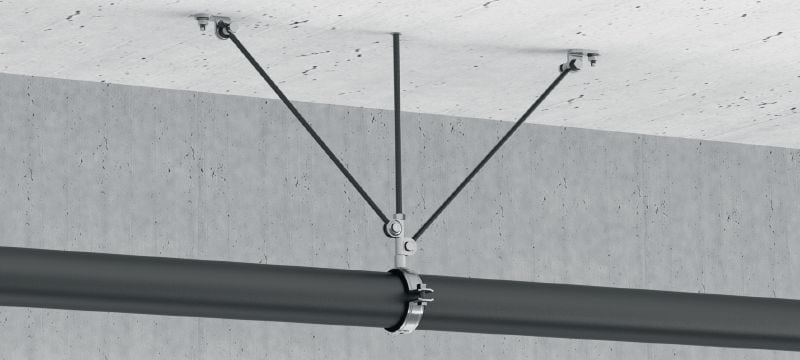

- Connecting threaded rod and wire seismic bracing to MEP support structures, such as trapeze and suspended pipe rings
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
