MQ-41 C-Channel profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001762_v1 (187388)
L_CG001819_v3_cropped (188117)
IS_MQ-41_channel_0001 (187746)

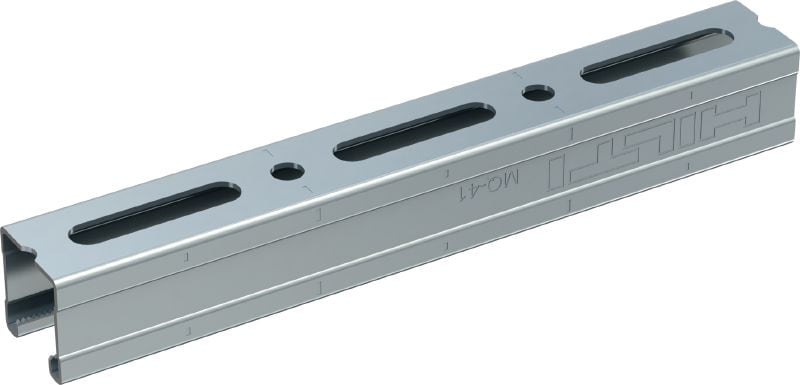

Galvanised C-Channel profile for medium-duty applications

  • Approvals: ETA
  • Height: 41.3 mm
  • Material thickness: 2 mm

Choose options

Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occurred

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Details
Technical illustrations
Approvals
ETA
Height
41.3 mm
Material thickness
2 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Brochure
pdf ETA_Modular_support_system_V1.4_en, English [ 14.4 MB ]
pdf 10_04_2022 Eurocode Product Qualification Document MQ System [ 2.3 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Long back slots – for more flexible attachment options and round holes for optimised anchor fastening
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in dry interiors

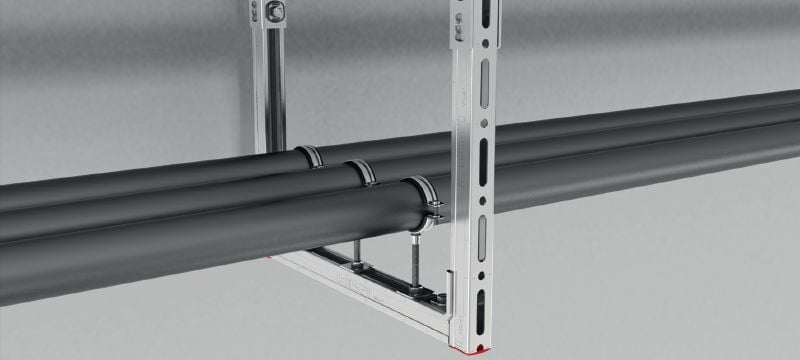

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation

For approval or certificate information, please see individual items.
